DTC P0571: Notes

DTC P0571 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0571 Brake switch circuit problem
DETECTION CONDITION
  • The PCM monitors the change in the input voltage for brake switch No. 1 and No. 2. If the PCM detects that both brake switches No. 1 and No. 2 remain on or off for 15 s  , it determines that the brake switch circuit has a malfunction.

Diagnostic support note
  • This is a continuous monitor (Other).
  • The MIL does not illuminate.
  • FREEZE FRAME DATA is not available.
  • DTCs are stored in PCM memory.
POSSIBLE CAUSE
  • Brake switch malfunction
  • Open circuit between brake switch terminal B and instrument cluster terminal 2M
  • Open circuit between brake switch terminal C and body ground
  • Short to power between brake switch terminal B and instrument cluster terminal 2M
  • Short to ground circuit between brake switch terminal B and instrument cluster terminal 2M
  • Communication error between PCM and instrument cluster
  • PCM malfunction

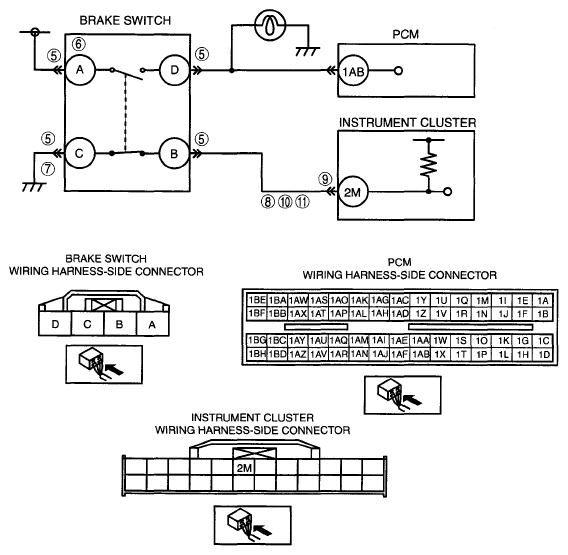

G04954397Courtesy of MAZDA MOTORS CORP.
