DTC P0223: Notes
DTC P0223 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0223 |
TP sensor No. 2 circuit high input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. 2 voltage is above 4.85 V
after the ignition switch to the ON position, the PCM determines that the TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|

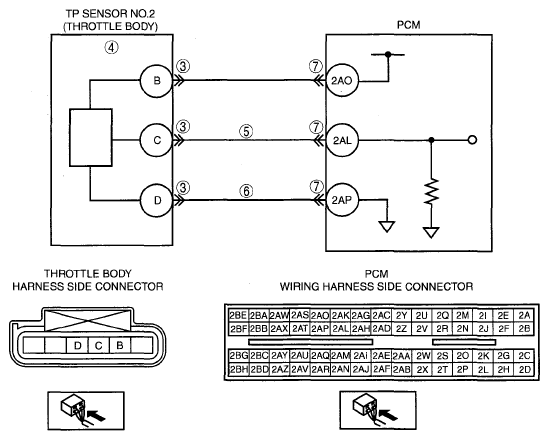

| POSSIBLE CAUSE |
- TP sensor malfunction
- Connector or terminal malfunction
- Open circuit between throttle body terminal D and PCM terminal 2AP
- Short to power supply between throttle body terminal C and PCM terminal 2AL
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
