DTC P0222: Notes

DTC P0222 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSE

DTC P0222 TP sensor No. 2 circuit low input
DETECTION CONDITION
  • If PCM detects that the TP sensor No. 2 voltage is below 0.2 V  after the ignition switch to the ON position, the PCM determines that TP circuit has a malfunction.

Diagnostic support note
  • This is a continuous monitor (CCM).
  • MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
  • FREEZE FRAME DATA is available.
  • DTCs are stored in the PCM memory.
POSSIBLE CAUSE
  • TP sensor malfunction
  • Connector or terminal malfunction
  • Open circuit between throttle body terminal C and PCM terminal 2AL
  • Short to ground between throttle body terminal C and PCM terminal 2AL
  • Open circuit between throttle body terminal B and PCM terminal 2AO
  • Short to ground between throttle body terminal B and PCM terminal 2AO
  • PCM malfunction

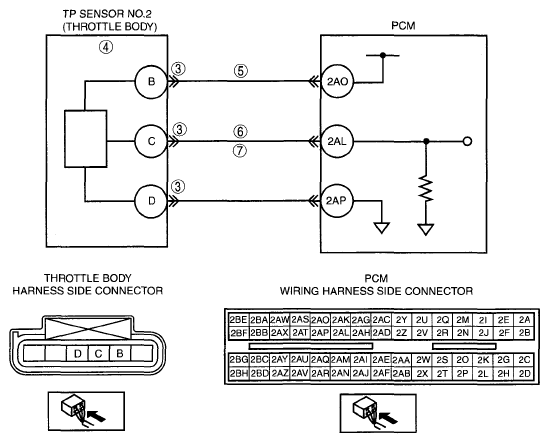

G04954383Courtesy of MAZDA MOTORS CORP.
