DTC P0122: Notes
DTC P0122 [L3 WITH TC] DETECTION CONDITION AND POSSIBLE CAUSE
| DTC P0122 |
TP sensor No. 1 circuit low input |
| DETECTION CONDITION |
- If the PCM detects that the TP sensor No. 1 voltage is below 0.2 V
after the ignition switch is turned to the ON position, the PCM determines that TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if the PCM detects the above malfunction condition during the first drive cycle.
- FREEZE FRAME DATA is available.
- DTCs are stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor malfunction
- Connector or terminal malfunction

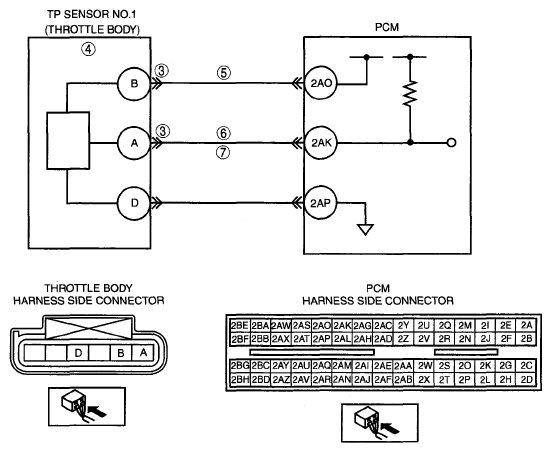

- Short to ground between throttle body terminal A and PCM terminal 2AK
- Short to ground between throttle body terminal B and PCM terminal 2AO
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
