Power Window System Wiring Diagram [Power Window System]

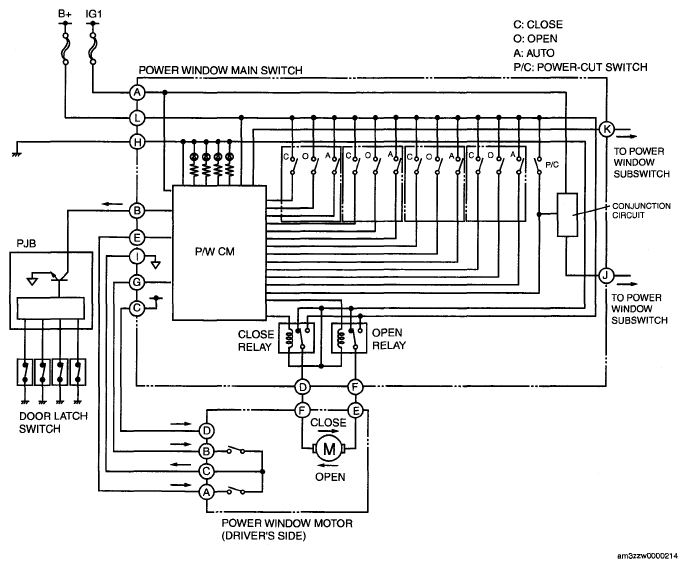

Fig 1: Power Window System Wiring Diagram

G04956620

Courtesy of MAZDA MOTORS CORP.
