Monitoring System And Control System Device Relationship Chart

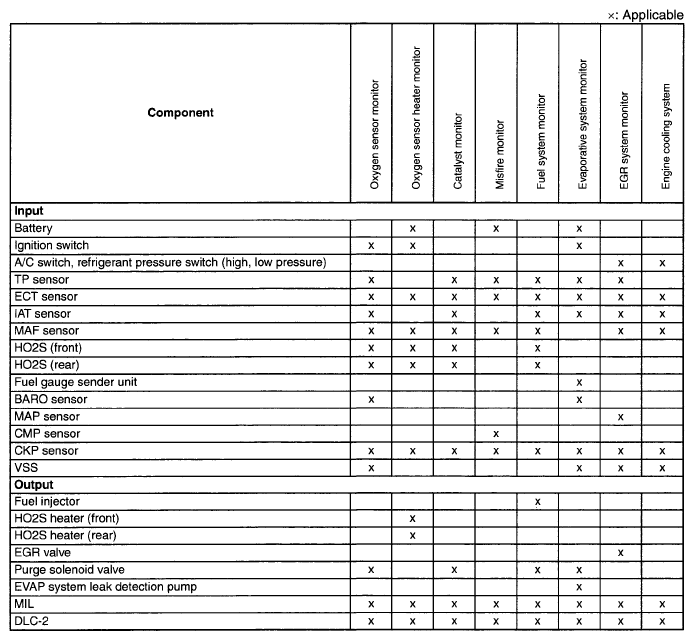

Fig 1: Monitoring System And Control System Device Relationship Chart

G04954337

Courtesy of MAZDA MOTORS CORP.
