Pinpoint Test 3: Clutch Drag

CLUTCH DRAG PINPOINT TEST REFERENCE

PINPOINT TEST 3		CLUTCH DRAG
STEP	INSPECTION		ACTION
1	CHECK FLUID LEVEL Key OFF. Inspect the fluid level in the brake master cylinder reservoir. Is the fluid level within the MAX and MIN level marks?	Yes	Go to next step.
1		No	ADD brake fluid and CHECK for leaks in the clutch and brake systems.

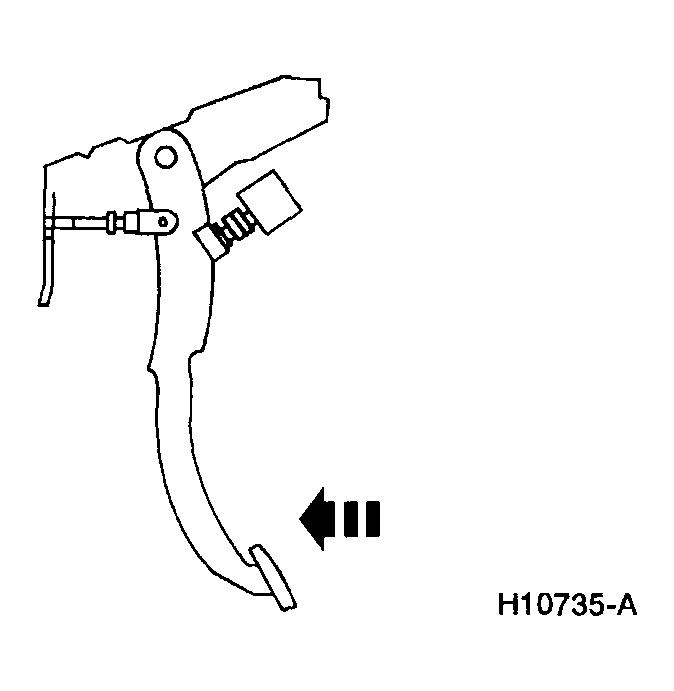

2	CHECK CLUTCH PEDAL FREE PLAY Press the clutch pedal lightly by hand. Measure the distance the clutch pedal travels. Is the clutch pedal travel within 5-13 mm (0.20-0.51 in)?	Yes	Go to next step.
2		No	GO to PINPOINT TEST 2: CLUTCH CHATTER OR SHUDDER .
3	CHECK DIAPHRAGM SPRING Remove the transaxle. See TRANSAXLE . Inspect the clutch pressure plate for wear and the diaphragm spring for even diaphragm height. See CLUTCH PRESSURE PLATE CHECK . Are there any signs of wear to the clutch pressure plate or diaphragm spring?	Yes	INSTALL a new clutch pressure plate. See CLUTCH DISC AND PRESSURE PLATE .
3		No	INSPECT the clutch disc for damage or excessive runout. See CLUTCH DISC CHECK.
