Connector End View - Transaxle

CONNECTOR END VIEW - TRANSAXLE

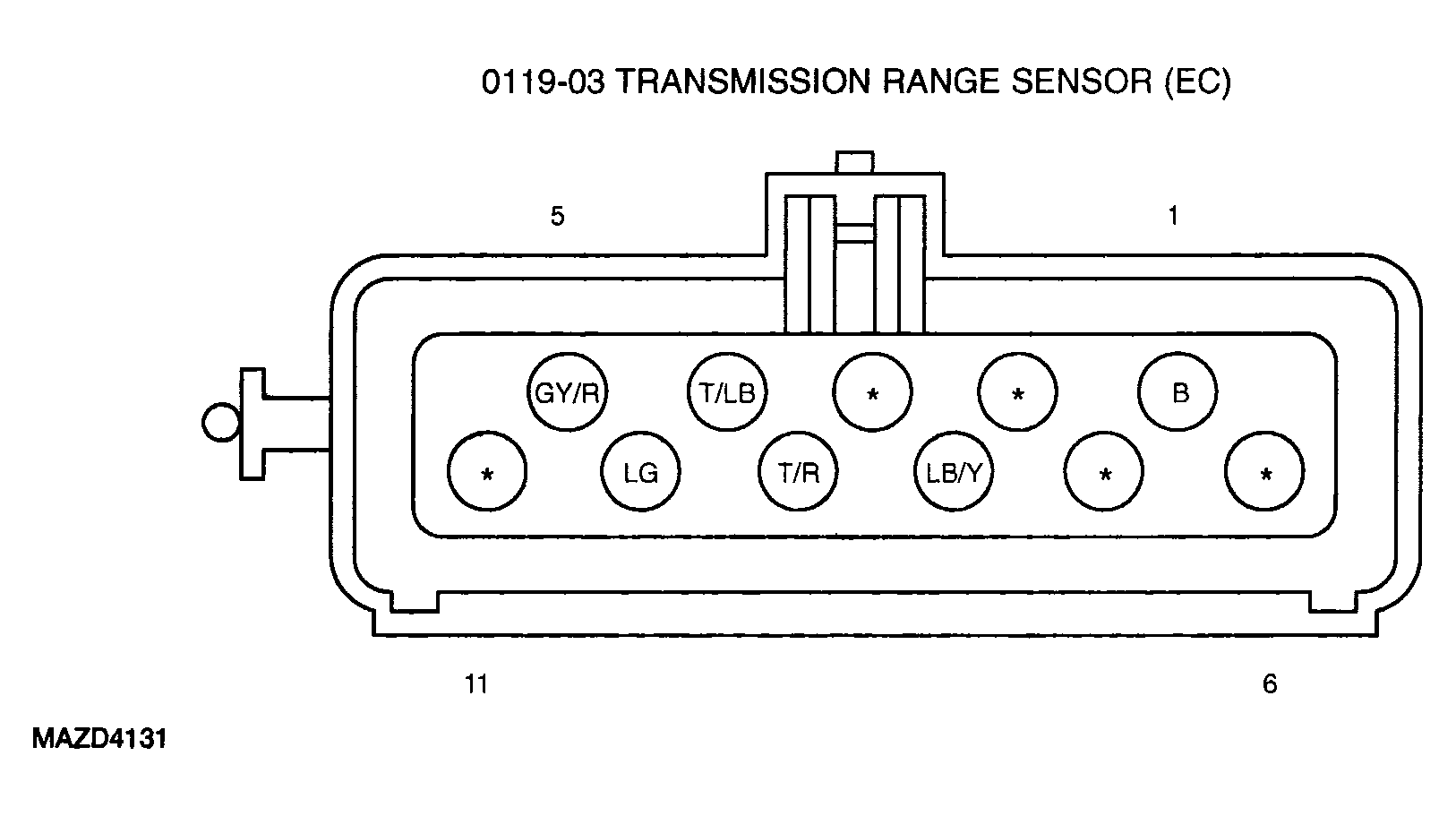

G04320816

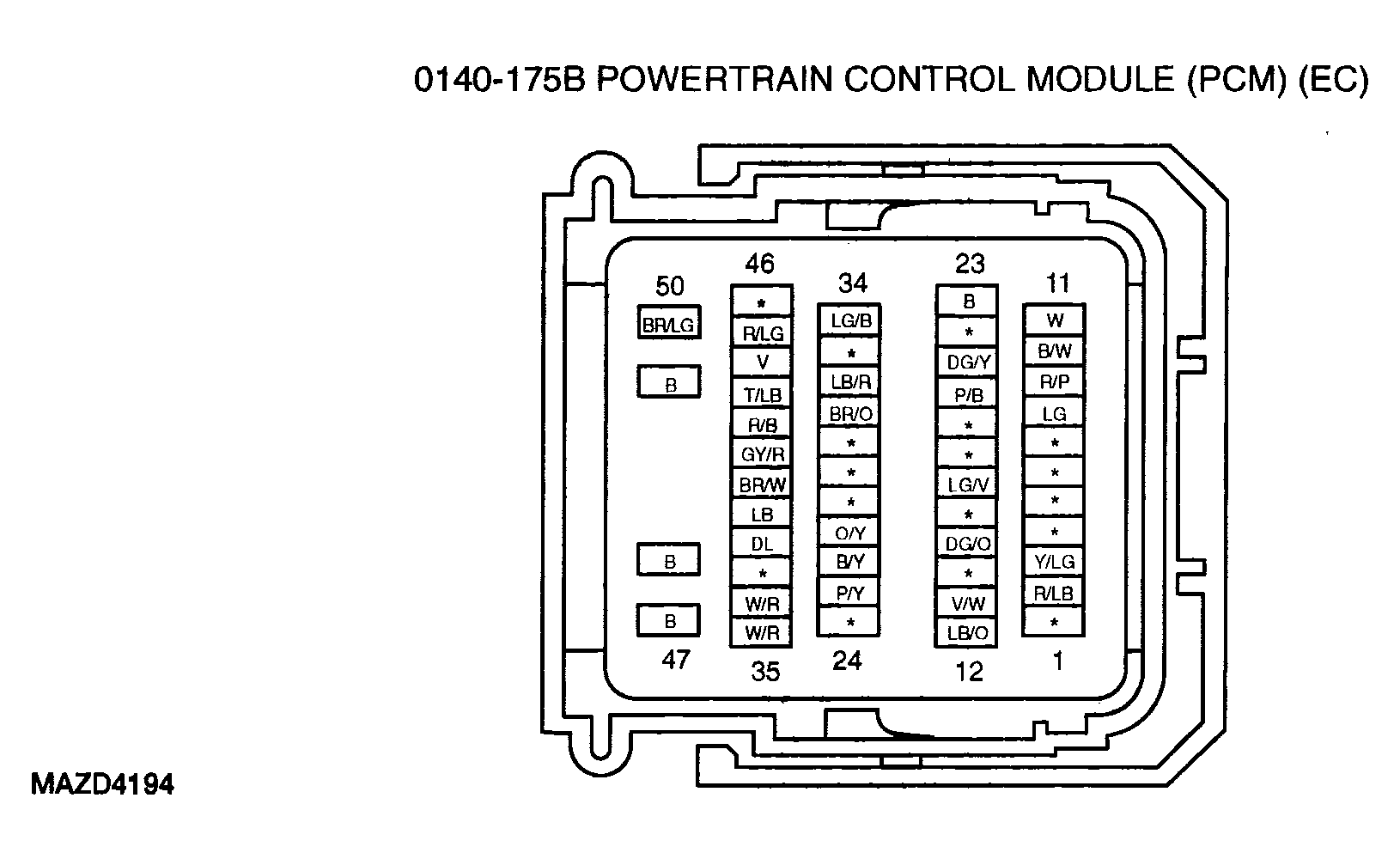

G04320817

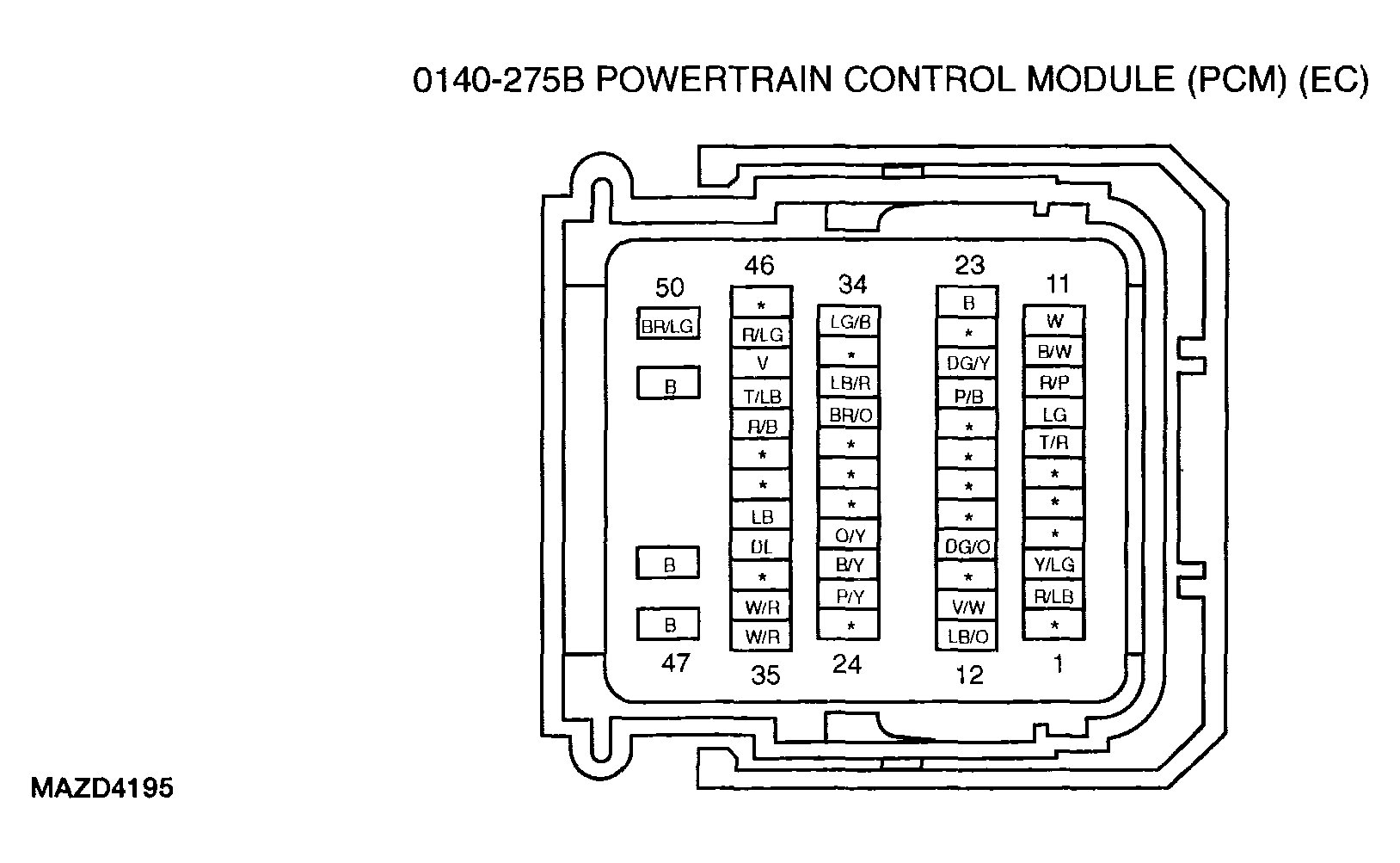

G04320818

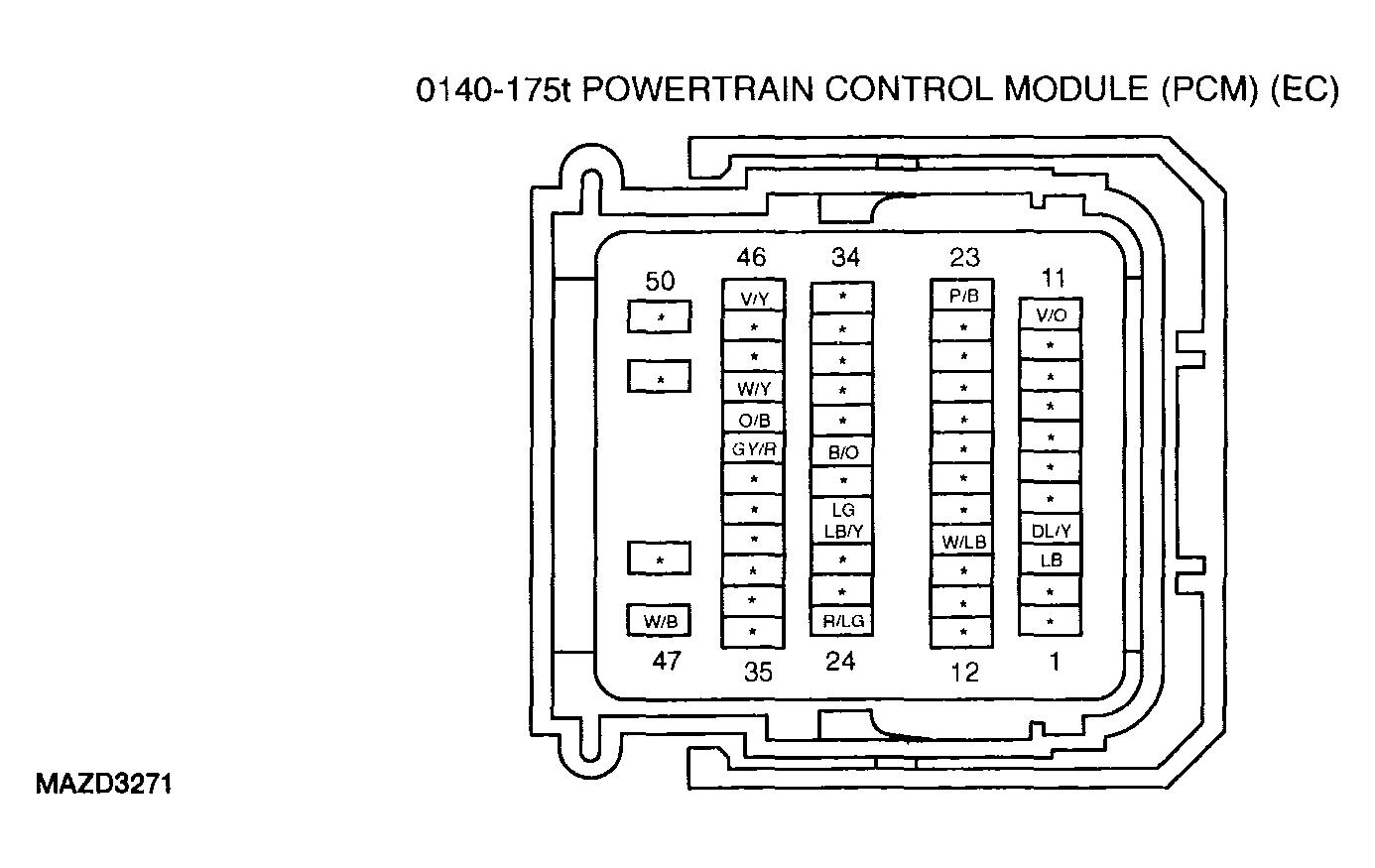

G04320819

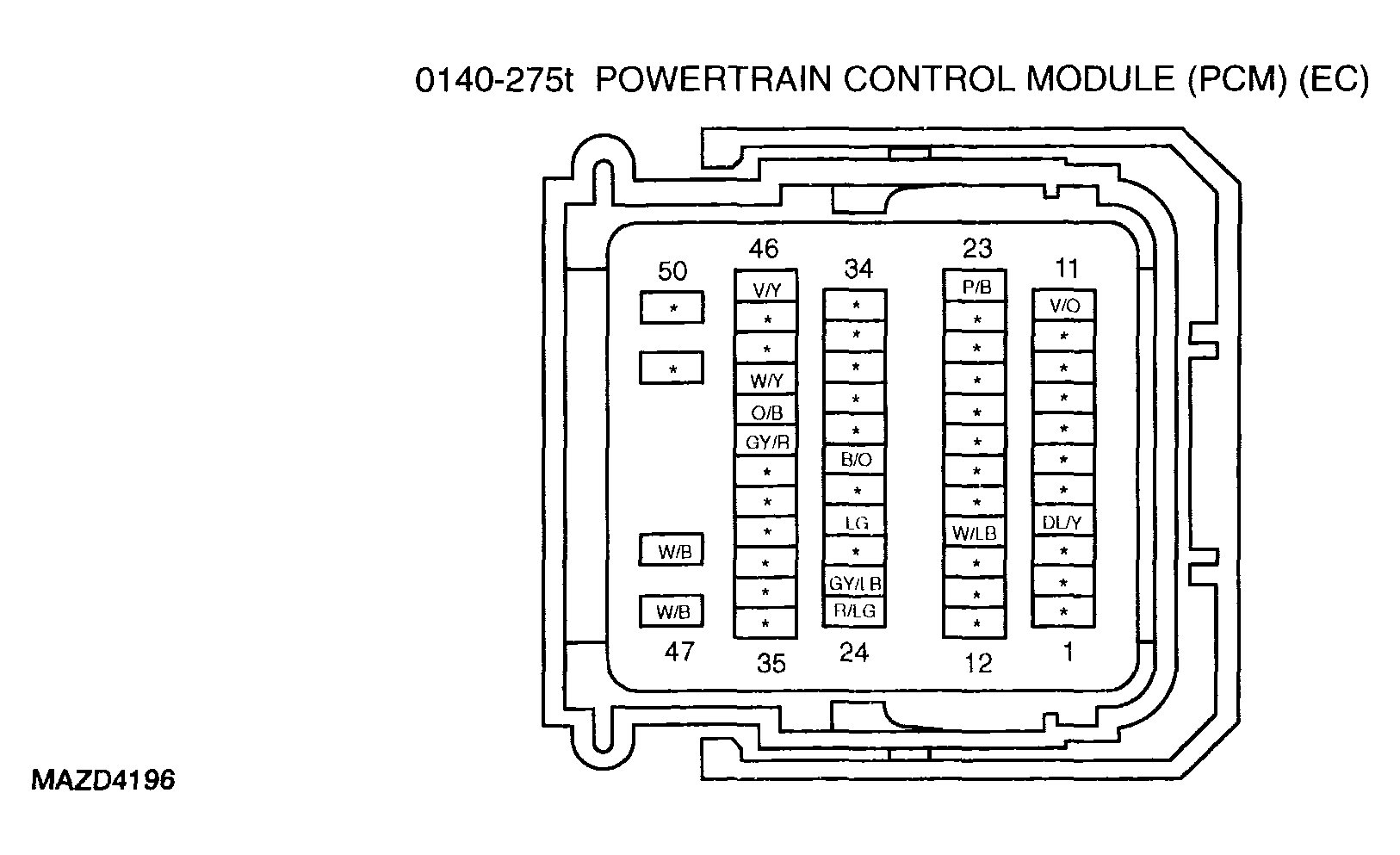

G04320820

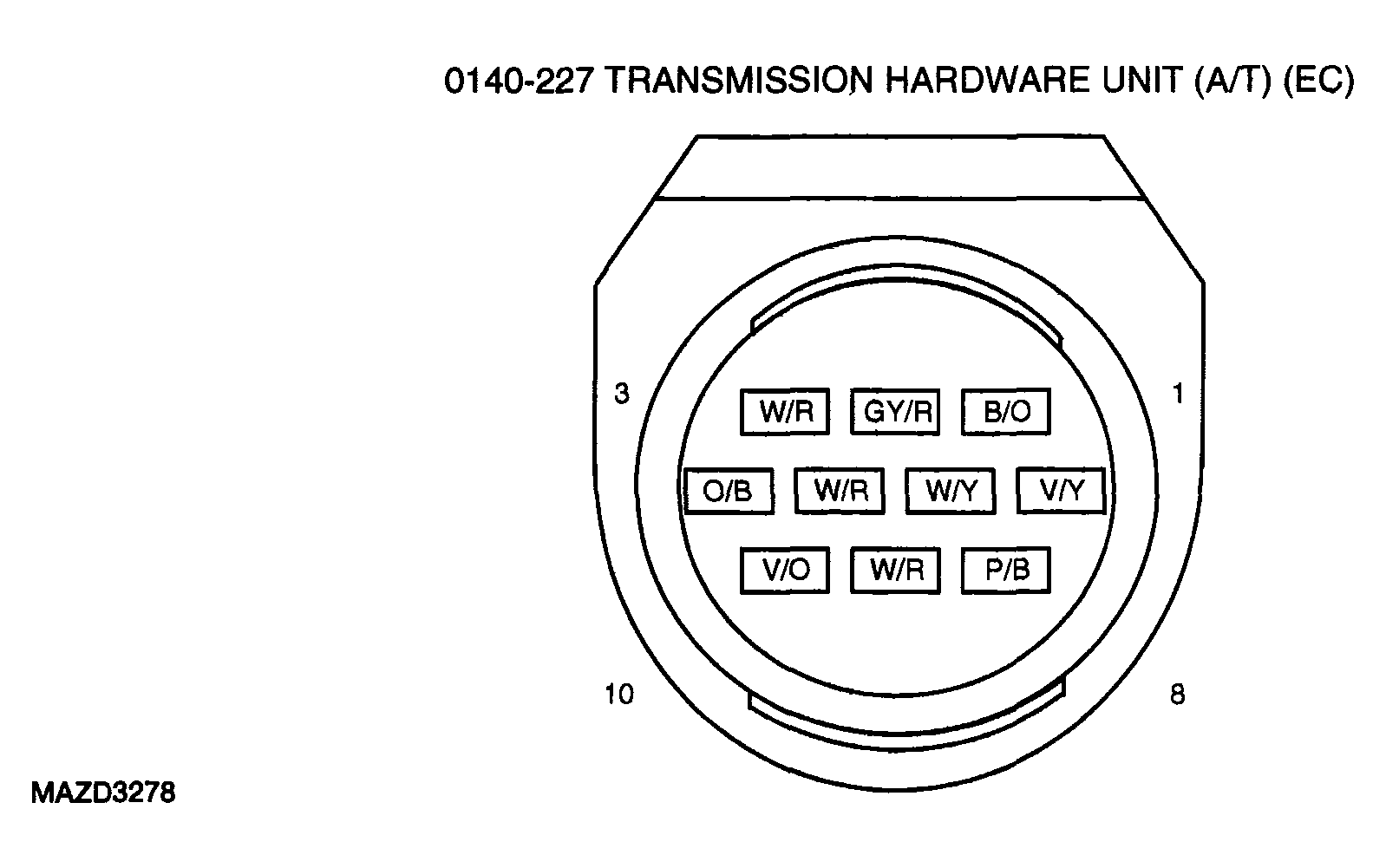

G04320821

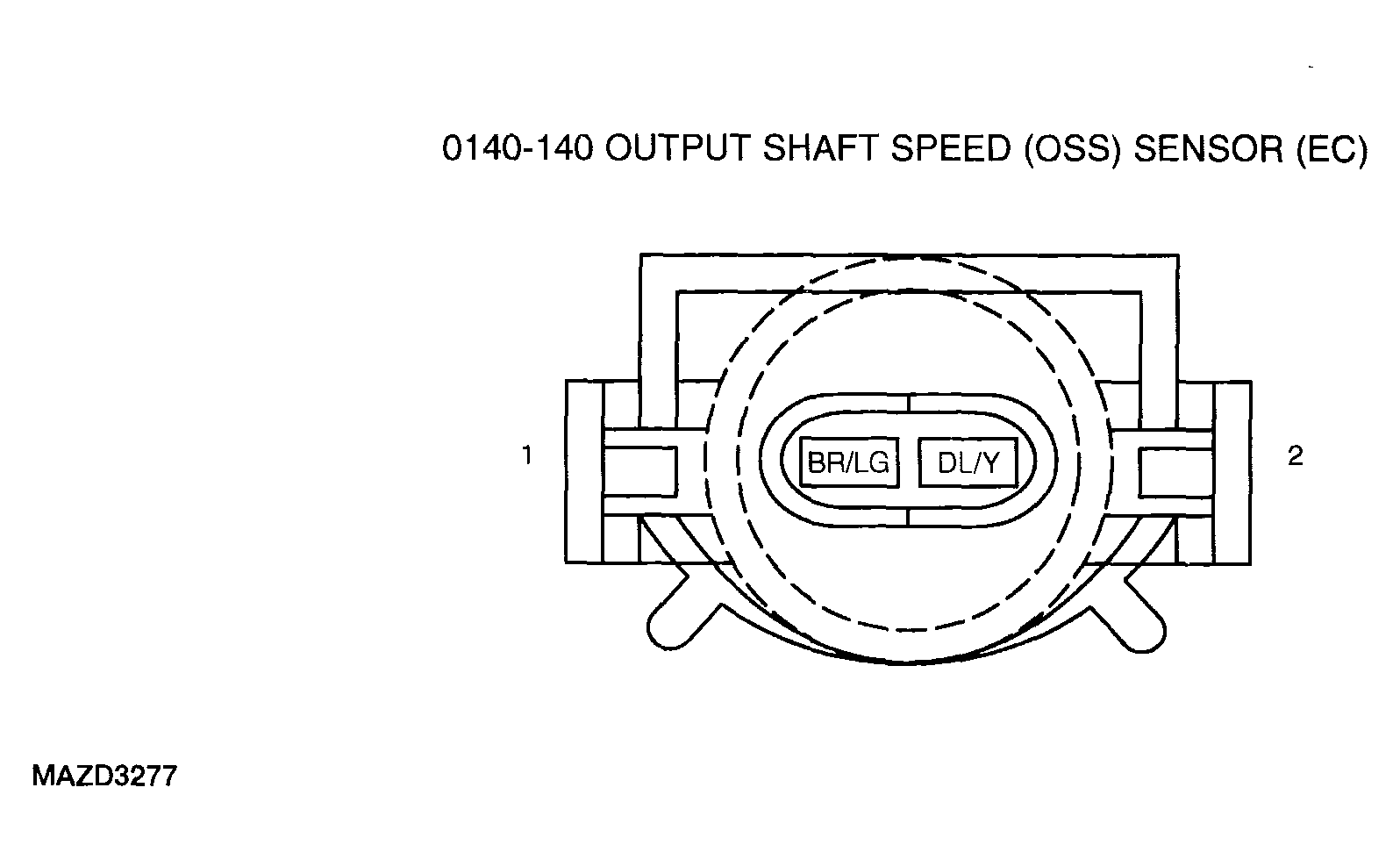

G04320822

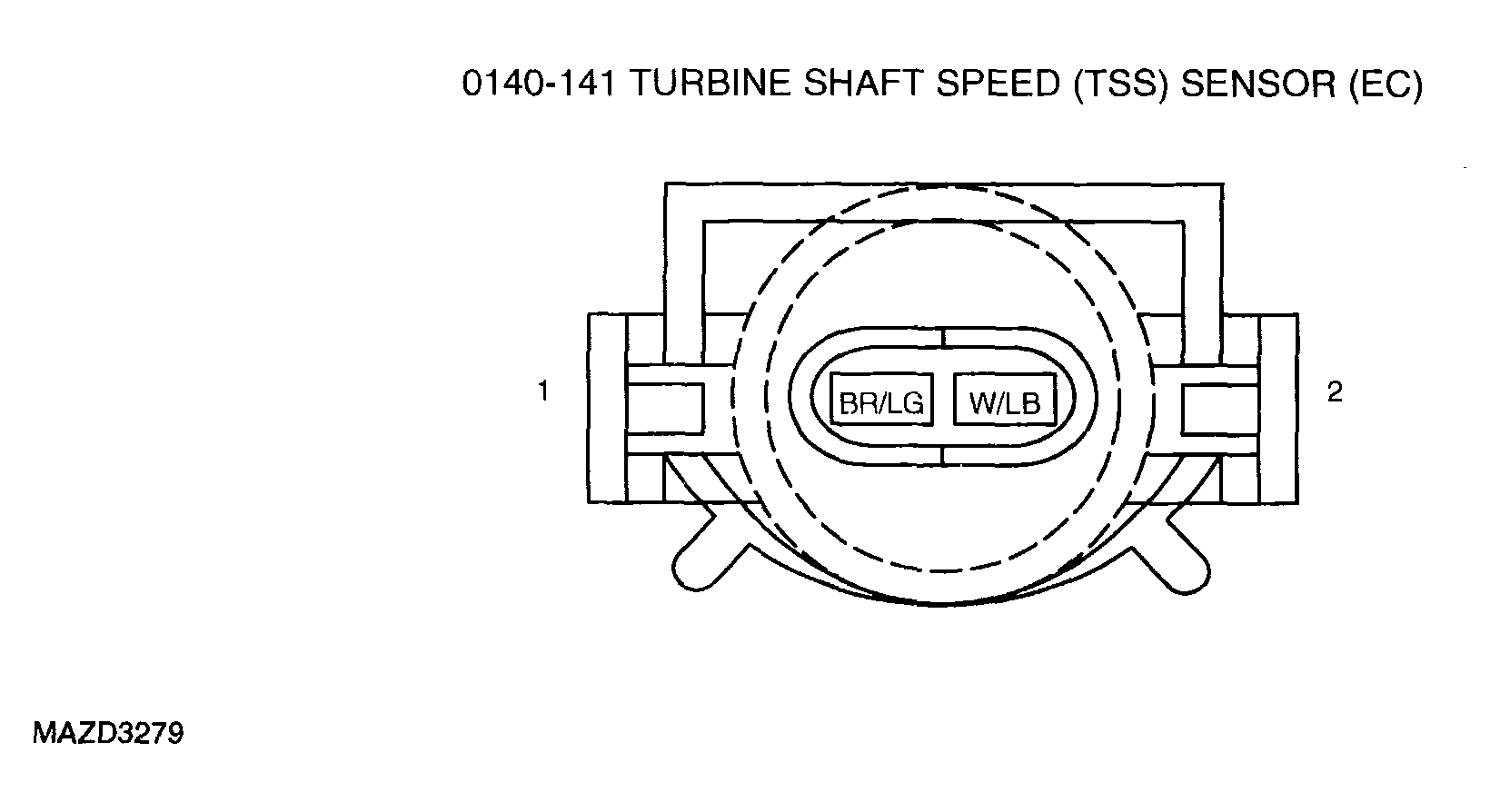

G04320823
