Transaxle Fluid Drain And Refill: Refill

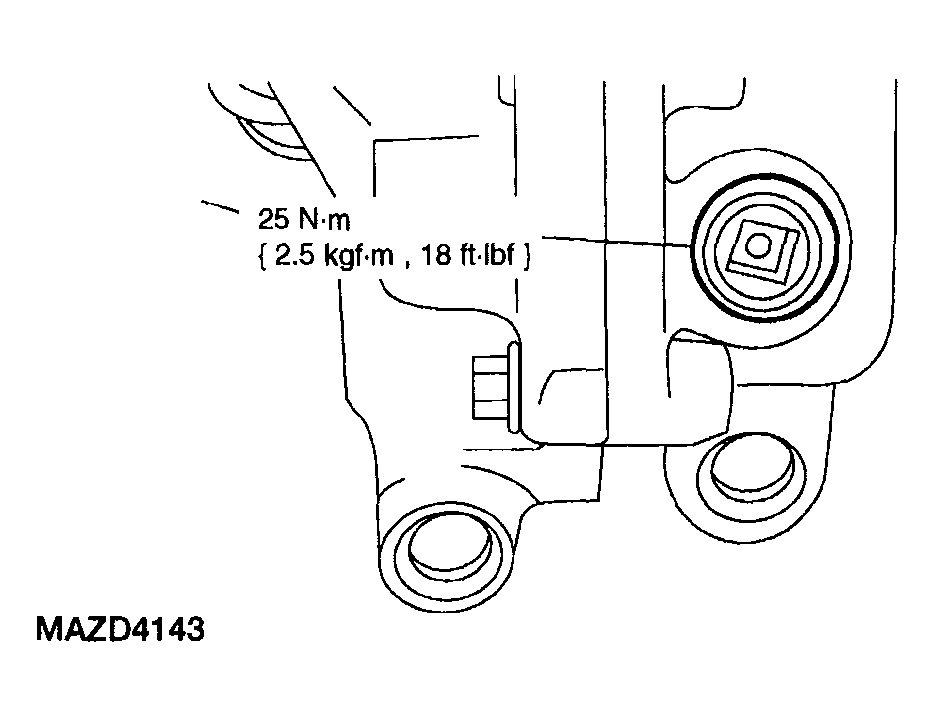

Fig 1: Installing Transaxle Drain Plug With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Using a small amount of pipe sealant on the threads, install the transaxle drain plug.
2. Fill the transaxle with clean automatic transaxle fluid.
3. Start the engine and run through all the gears for a total of five minutes.
