Transaxle LH Support Insulator

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Transaxle LH Support Insulator
G04321003Courtesy of MAZDA MOTORS CORP.
  1. Remove the air cleaner. See AIR CLEANER INTAKE PIPE - 2.3L .

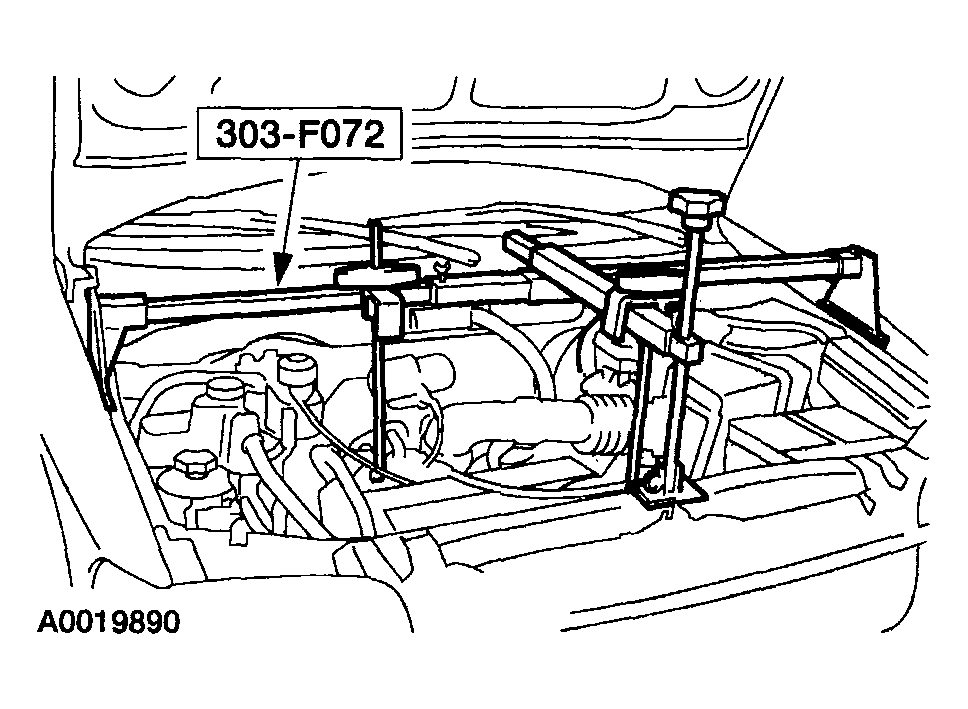

    Fig 2: Supporting Engine Using Special Tool
    G04321004Courtesy of MAZDA MOTORS CORP.
  2. Using the special tool, support the engine.
  3. Remove the LH support insulator.
    1. Remove the bolts.
    2. Remove the insulator cross bolts.
    3. Remove the LH support insulator.
    4. Remove the nuts.
    5. Remove the insulator bracket.
  4. To install, reverse the removal procedure.
