Connect - III

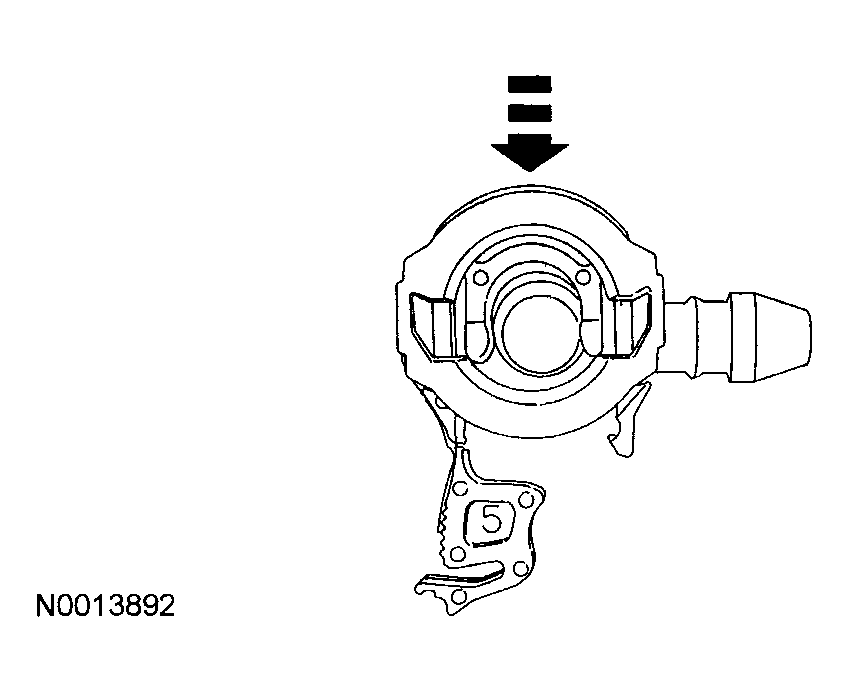

Fig 1: Installing Quick Connect Coupling Onto Tube
G04320118Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Make sure the tube clicks into place when installing into the quick connect coupling. To make sure the tube is fully seated, pull on the tube.
NOTE:
  • Apply clean engine oil to the O-ring seals.
  1. Install the quick connect coupling onto the tube until fully seated.

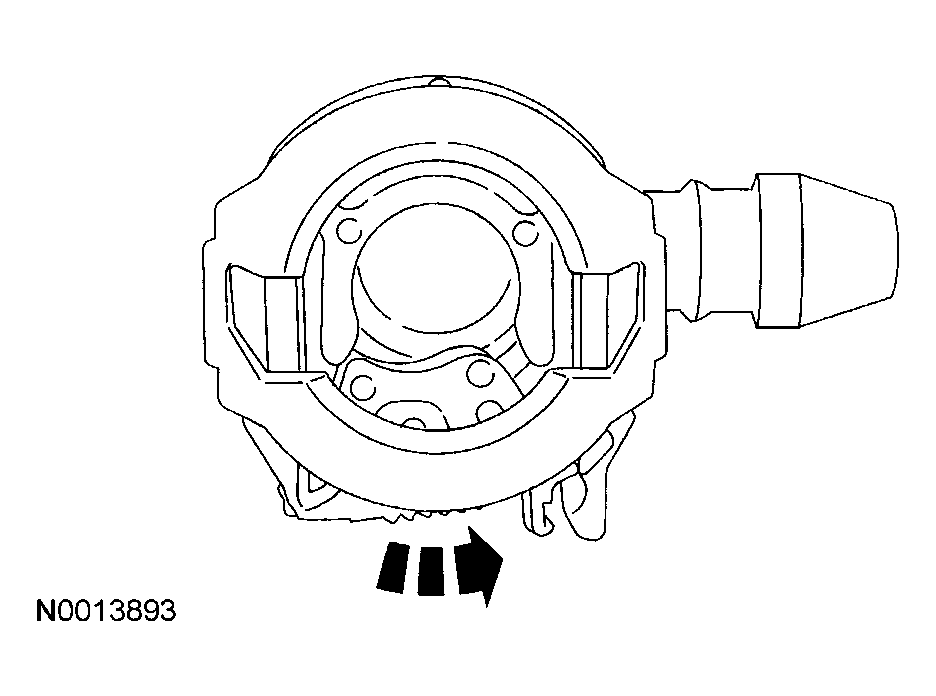

    Fig 2: Rotating Primary Locking Tab To Closed Position
    G04320119Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Make sure the retainer clip clicks into place when installing.
  2. Depress the retainer clip until it is flush with the quick connect coupling housing.
    CAUTION:
    • To make sure the tube is fully seated, pull on the quick connect coupling.
  3. Rotate the primary locking tab to the closed position
