Connector End Views - Power Windows

CONNECTOR END VIEWS - POWER WINDOWS CHART

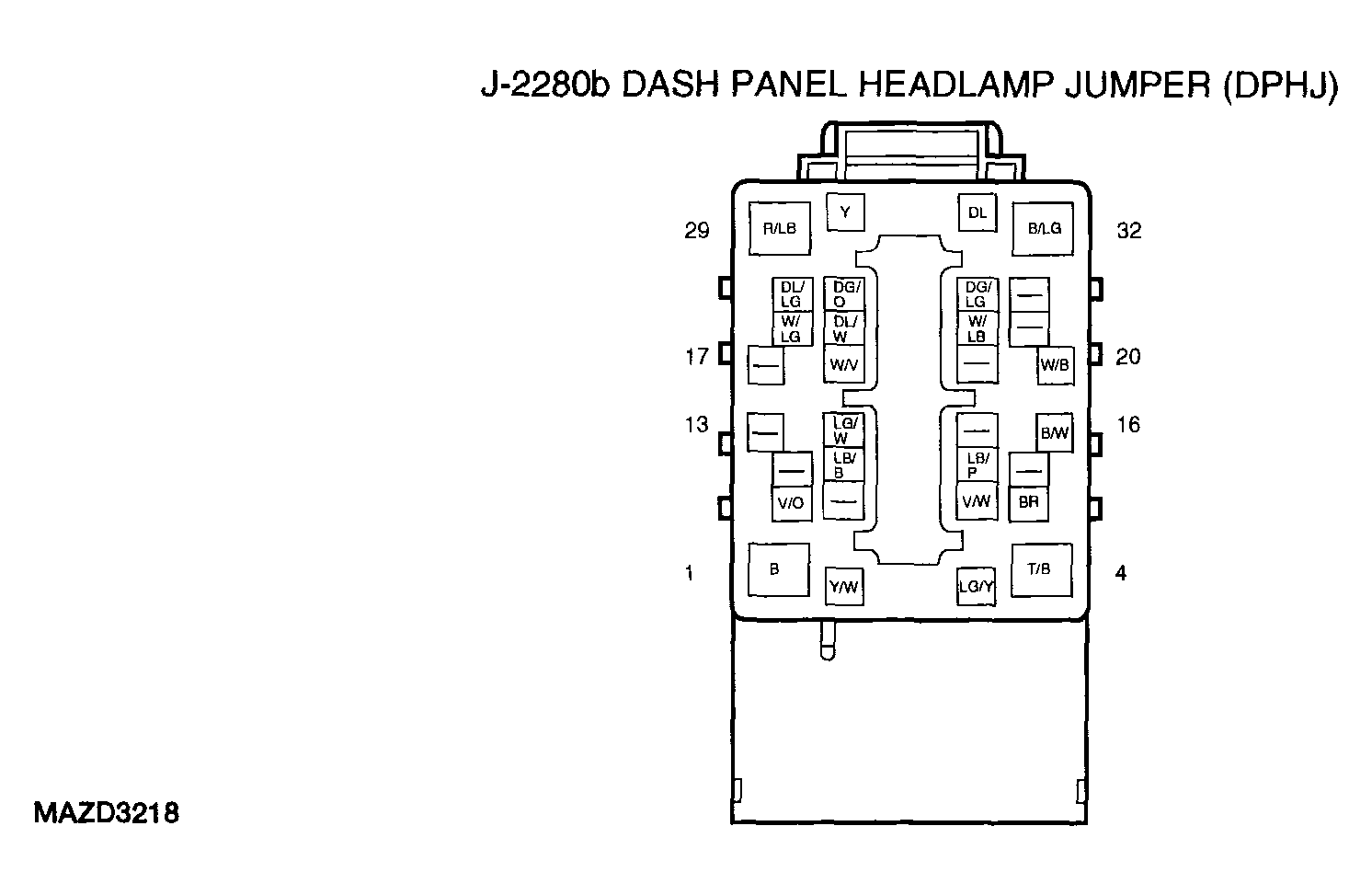

G04322407

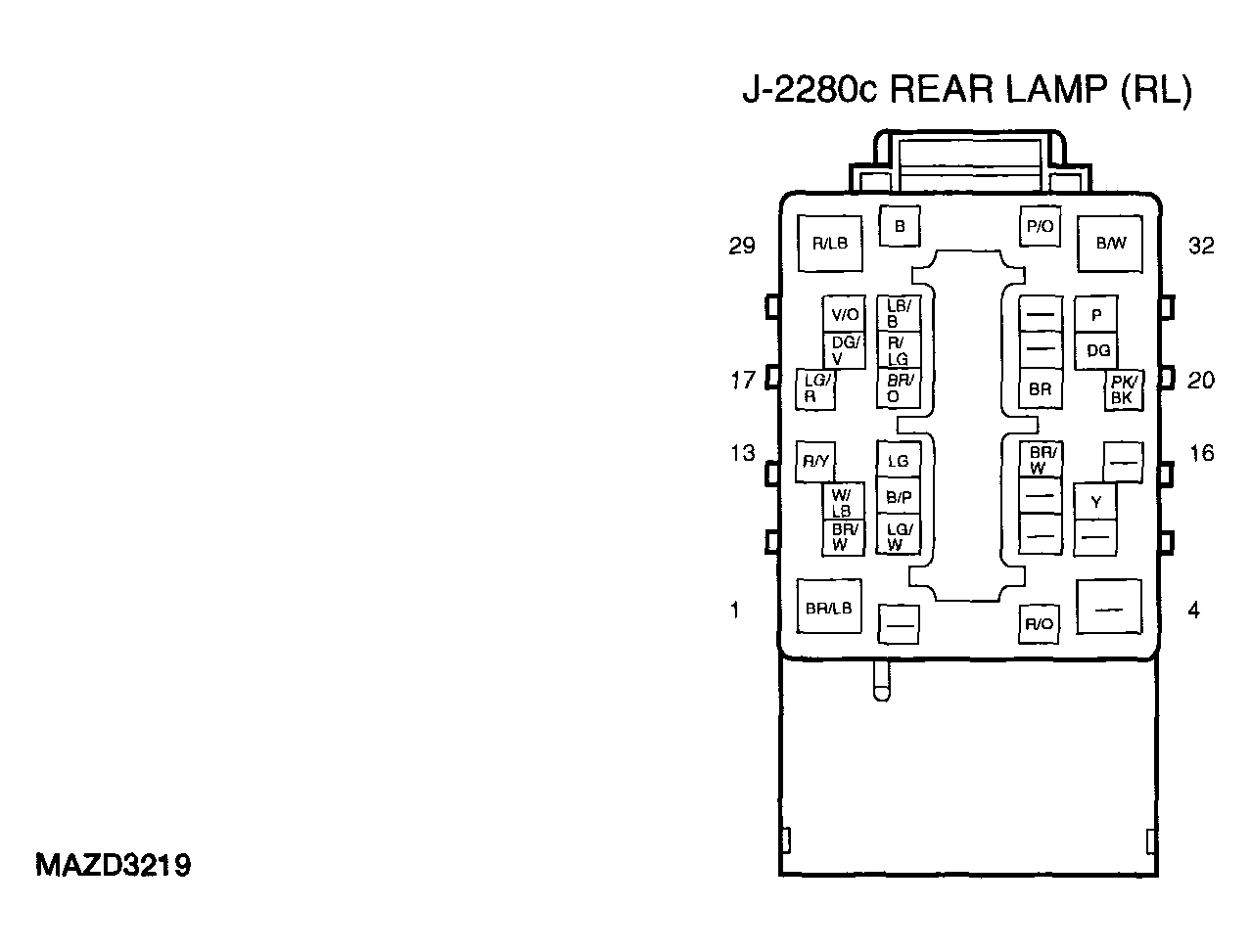

G04322408

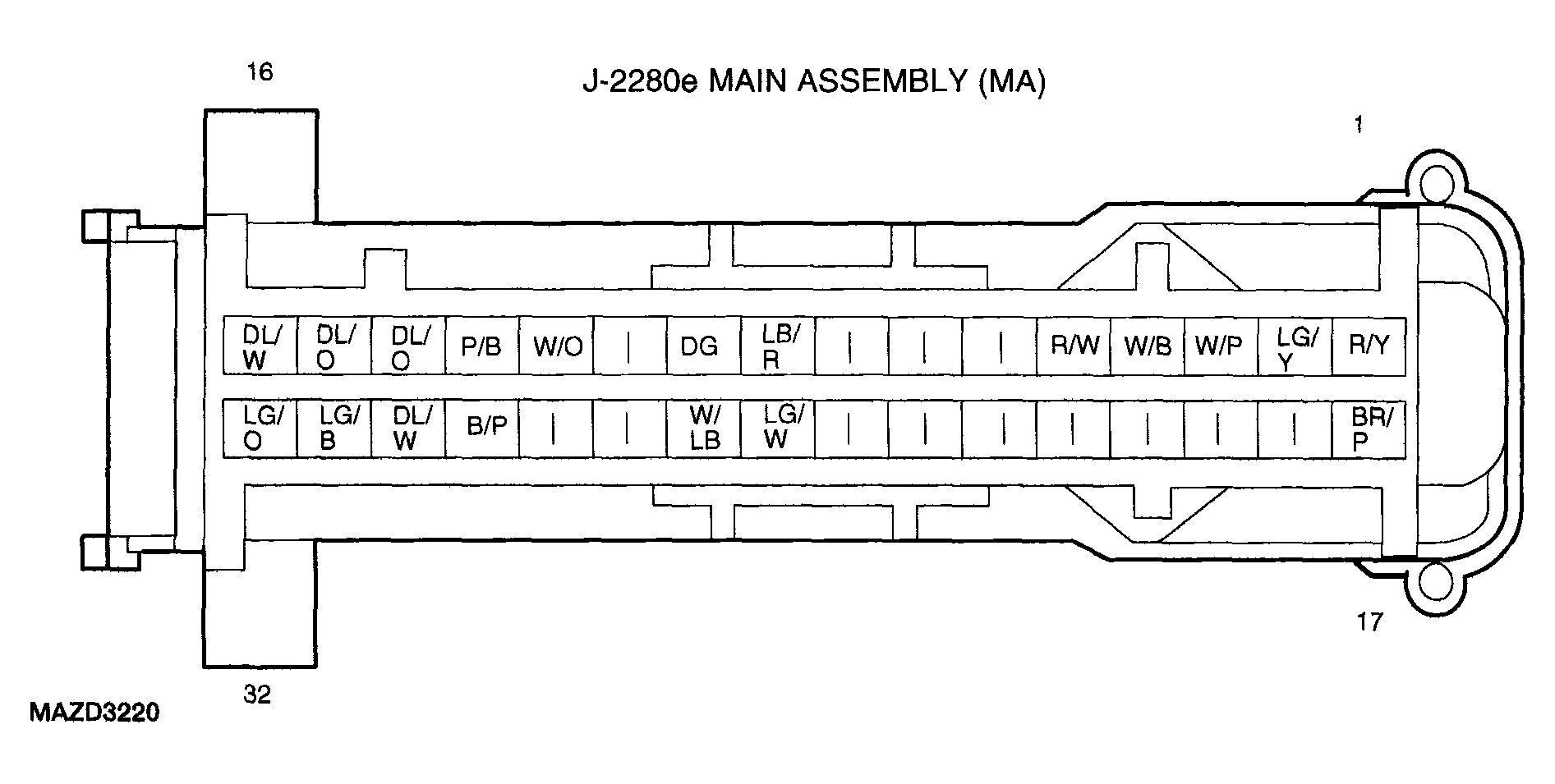

G04322409
G04322410
G04322411
G04322412

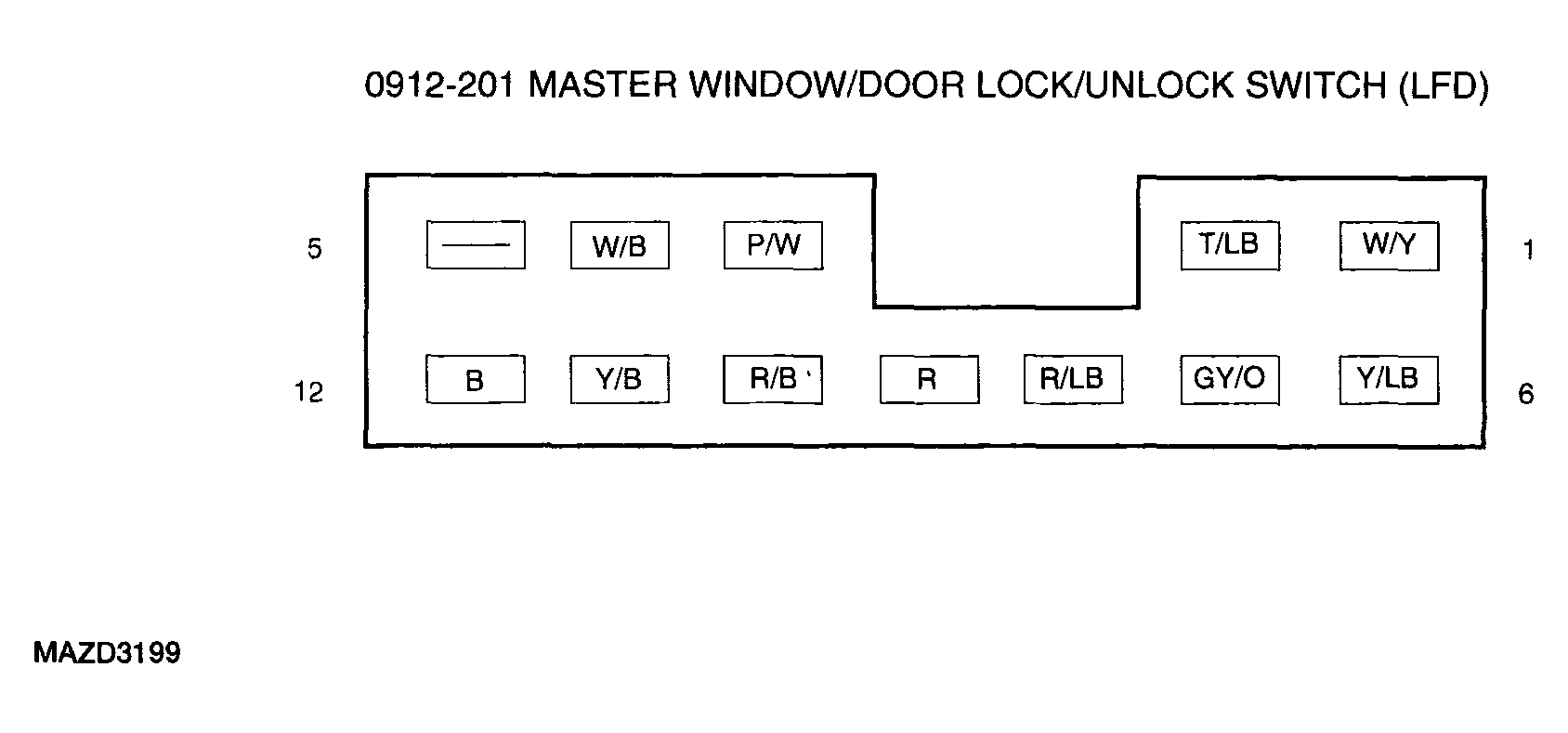

G04322413

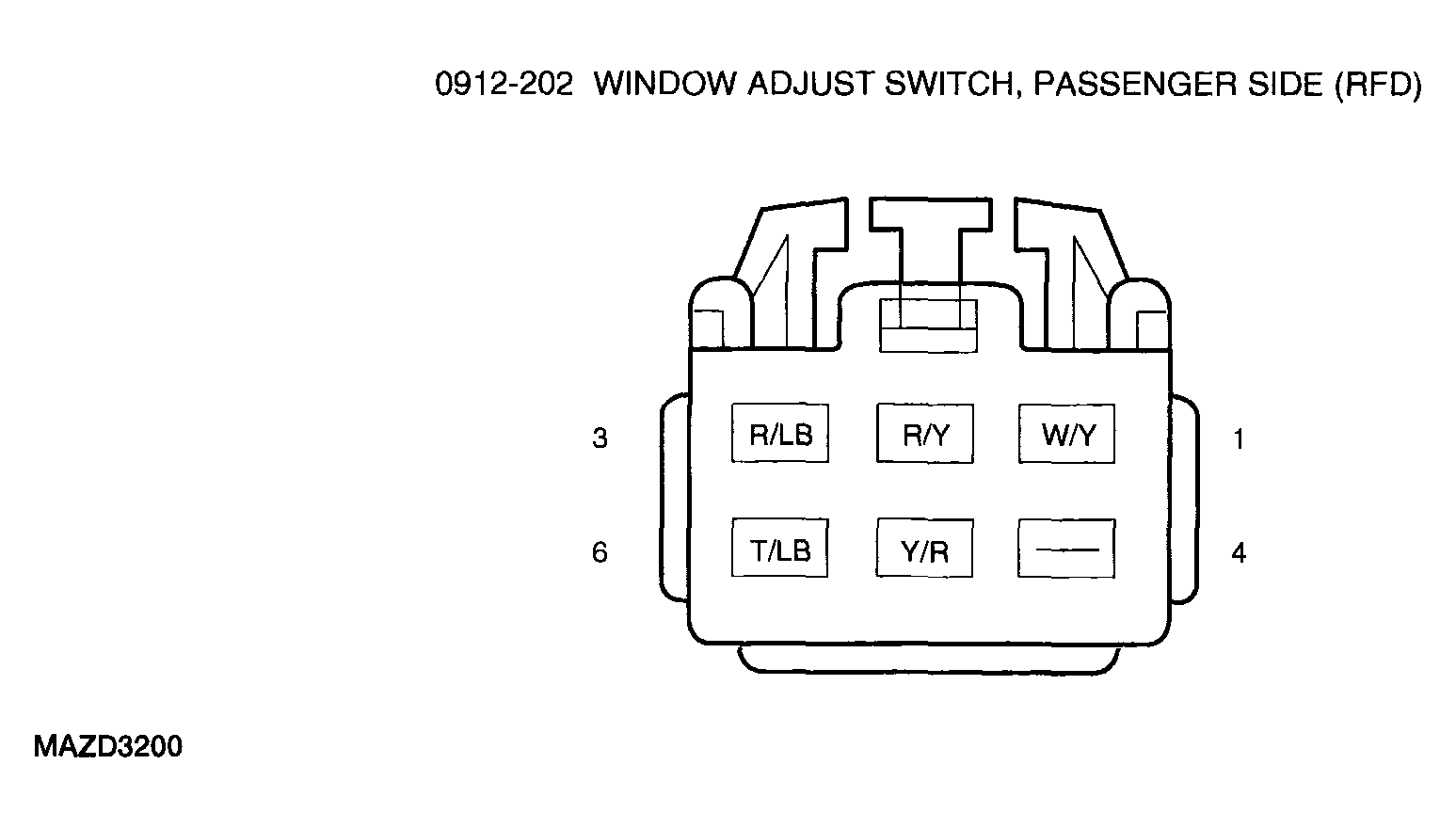

G04322414
G04322415
G04322416

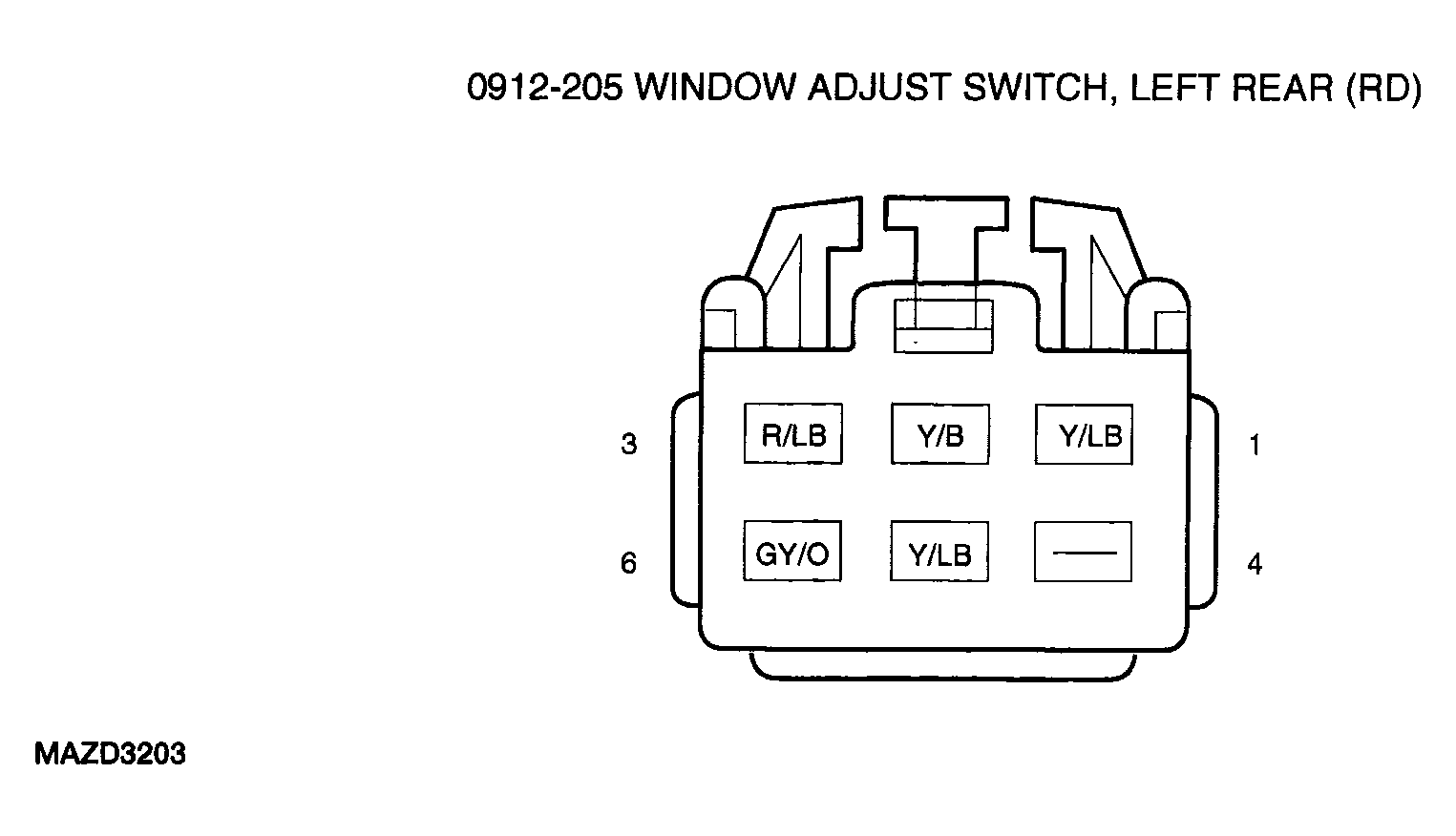

G04322417

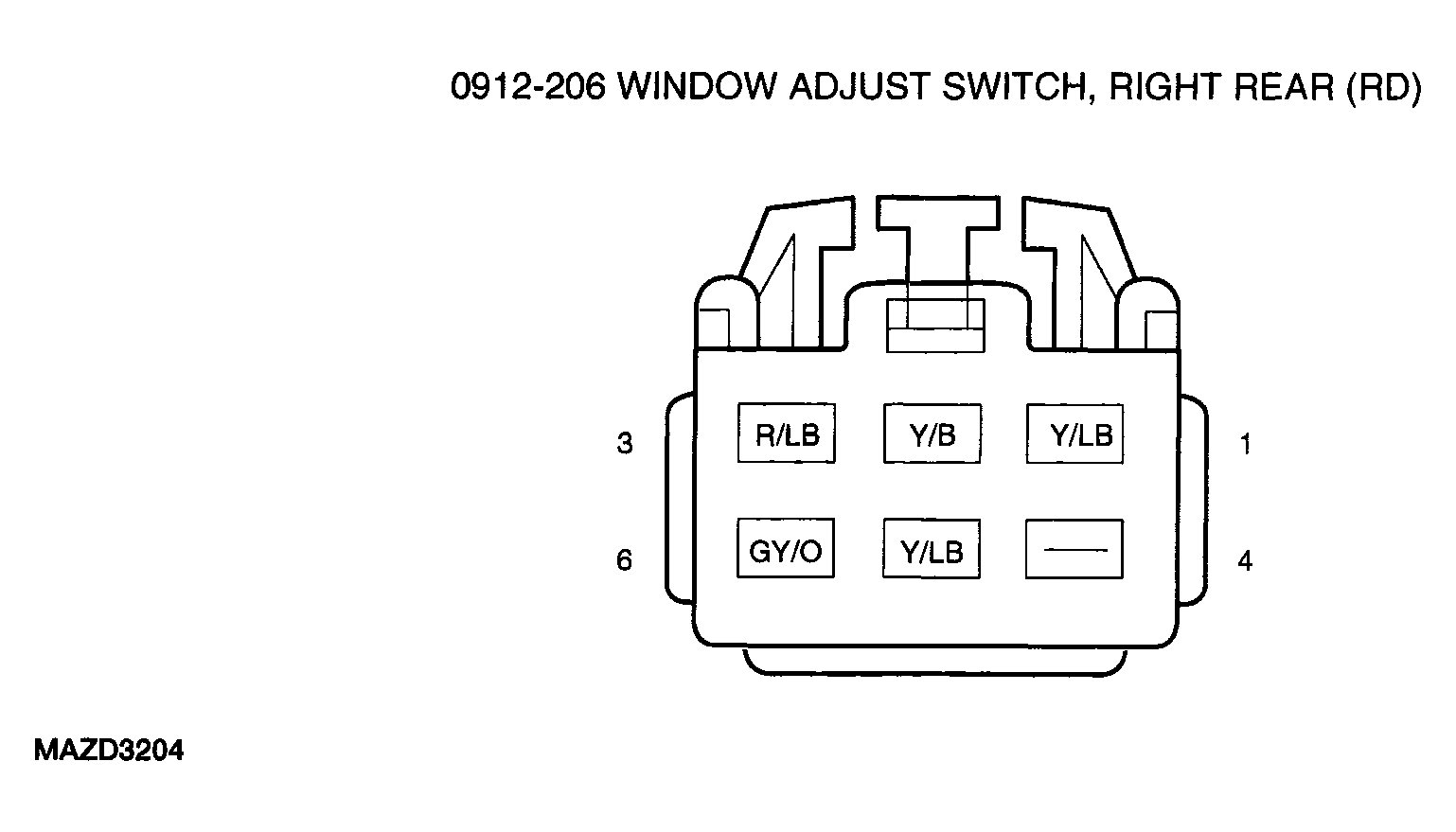

G04322418
G04322419
G04322420
