Speed Control Actuator: Installation

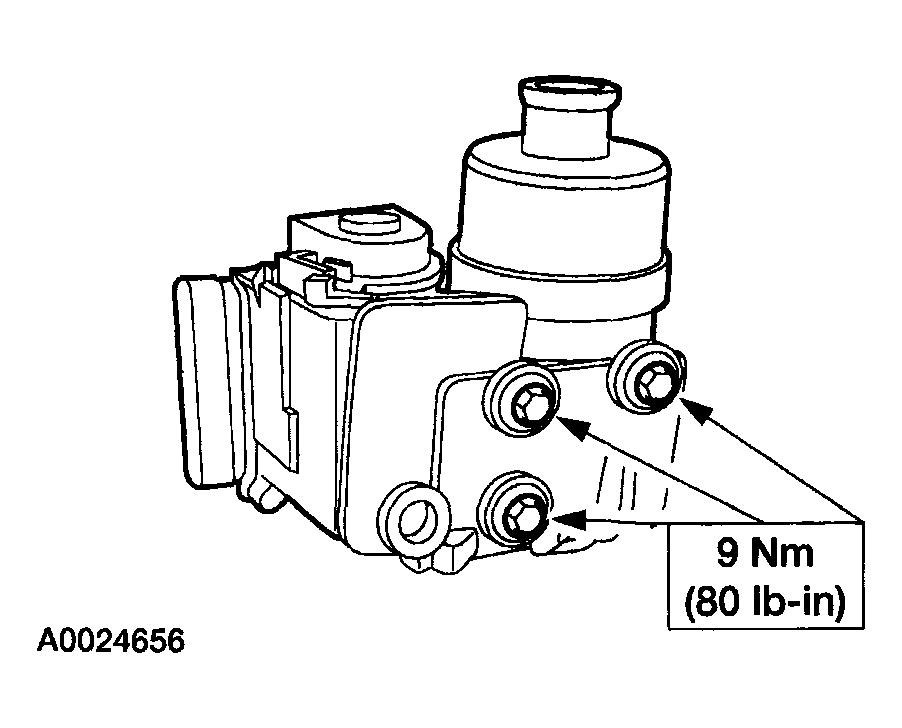

Fig 1: Installing Bolts And Cruise Control Actuator Bracket With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

1. Attach the cruise control actuator to the bracket.

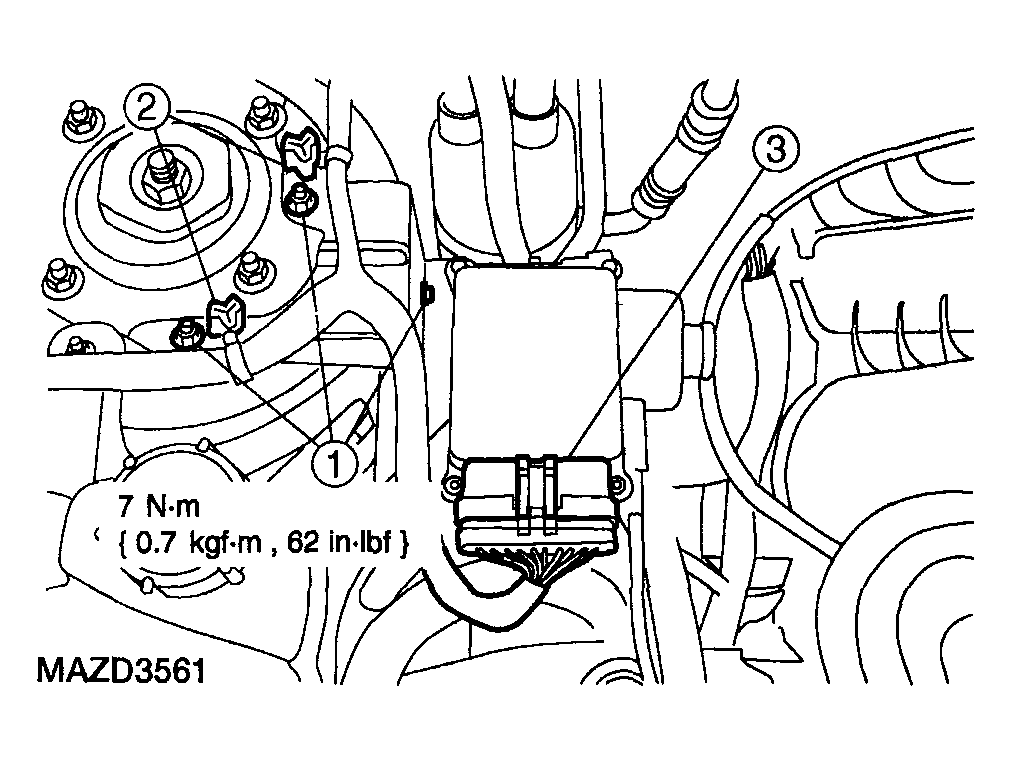

   Fig 2: Installing Cruise Control Actuator Assembly With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
2. Install the cruise control actuator assembly.
   1. Install the nuts.
   2. Secure the wire harness to the bracket.
   3. Connect the electrical connector.
      Fig 3: Inserting Cruise Control Cable

      Courtesy of MAZDA MOTORS CORP.
3. Insert the cruise control cable slug into the cruise control actuator pulley slot.
   1. Gently push the retaining spring.
   2. Insert the cruise control cable slug completely into the cruise control actuator pulley slot.
      Fig 4: Aligning Cruise Control Cable Cap Tabs

      Courtesy of MAZDA MOTORS CORP.
      CAUTION:

      • It is necessary to squarely seat the cruise control cable cap and seal around the cruise control actuator pulley.
      CAUTION:

      • Incorrect wrapping of the cruise control cable around the cruise control actuator pulley may result in high idle conditions.
      NOTE:

      • Make sure the rubber seal is fully seated onto the cruise control cable cap.
4. Align the cruise control cable cap tabs with the slots in the cruise control actuator housing.
   Fig 5: Rotating Cruise Control Cable Cap Until Locking Tab Engages

   Courtesy of MAZDA MOTORS CORP.
5. Rotate the cruise control cable cap until the locking tab engages.
