Cover Removal Note

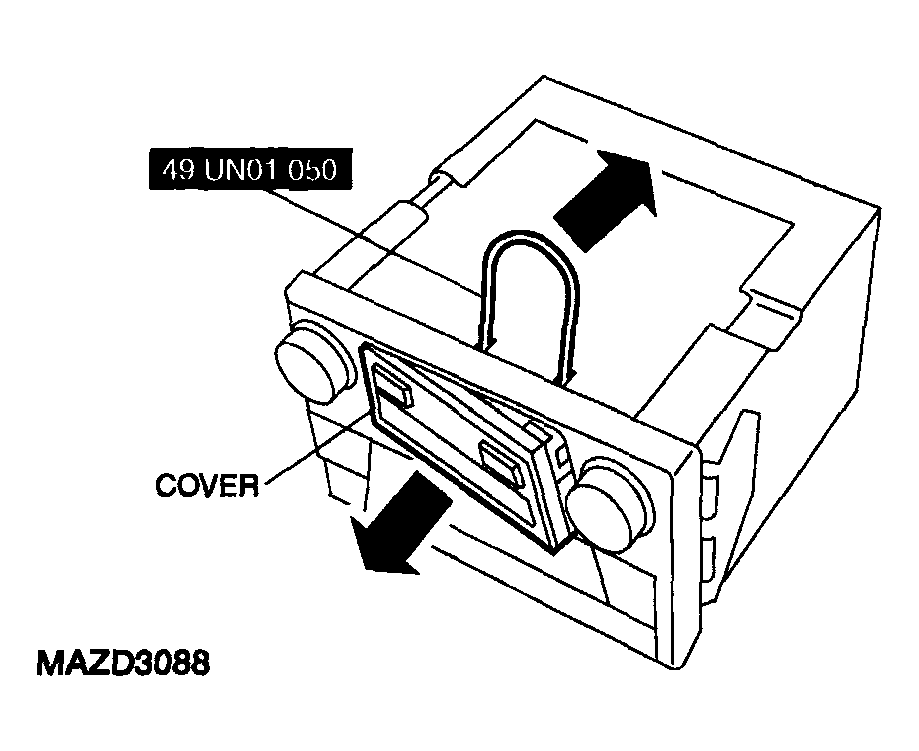

Fig 1: Inserting SST Into Service Holes On Bottom Surface Of Lower Module
G04322955Courtesy of MAZDA MOTORS CORP.
  1. Insert the SST into the service holes on the bottom surface of the lower module.
  2. To remove the cover, push the SST in the direction shown by the arrow.
