DTC C1095, C1096 [Dynamic Stability Control]: Notes

DTC C1095, C1096 POSSIBLE CAUSE

DTC C1095, C1096	Pump motor, motor relay system
DETECTION CONDITION	C1095 When the pump motor monitor voltage remains at 2.0 V  or more for 1 s  C1096 When the difference between the battery power supply voltage and pump motor power supply voltage remains at 4.0 V or more  for 0.1 s or more  while the pump motor is operating ABS motor monitor OFF signal is input within specified time limit when the motor signal is switched from ON to OFF by ABS HU/CM.

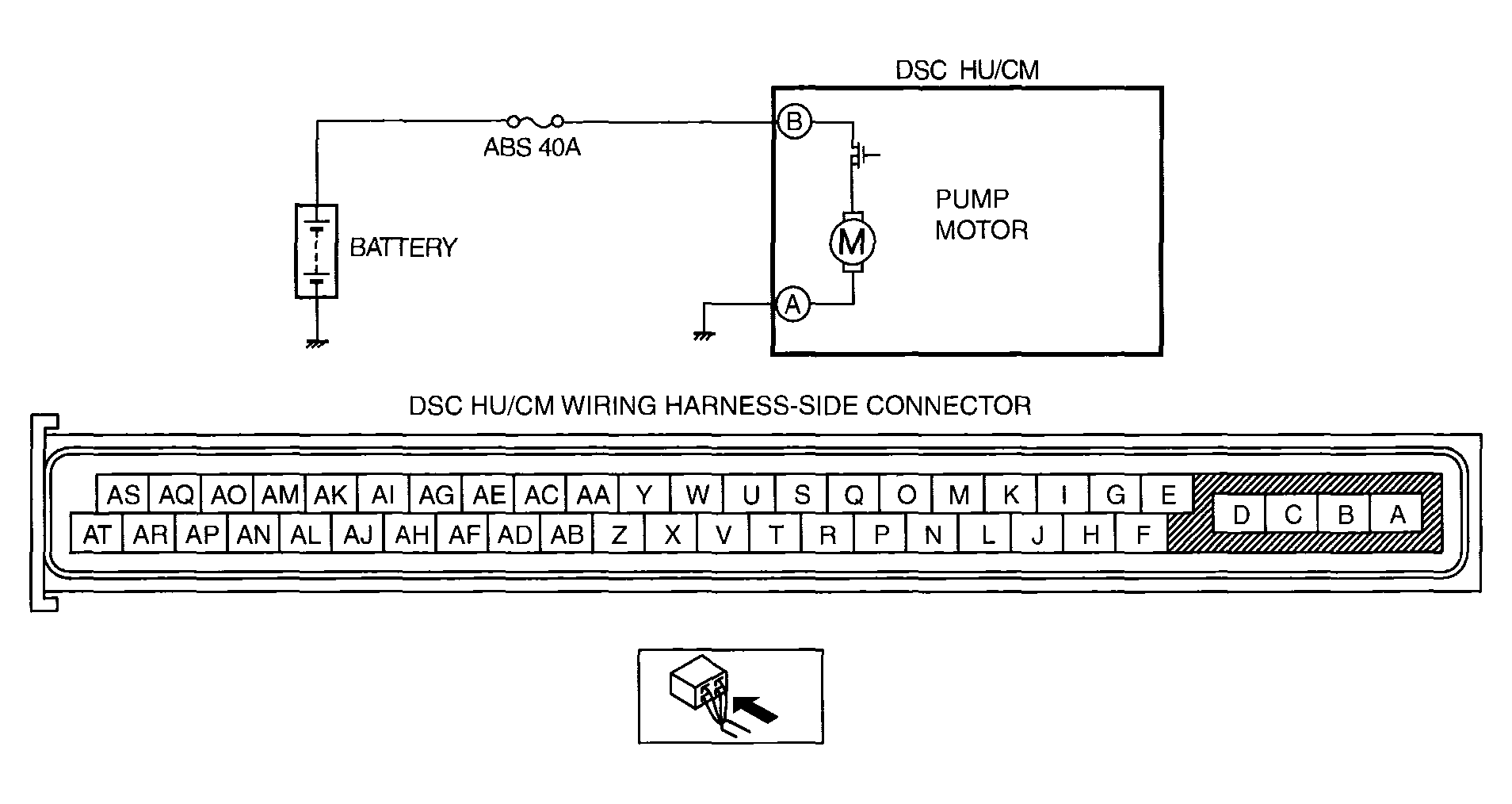

POSSIBLE CAUSE	ABS 40 A fuse malfunction Open or short to ground circuit in the wiring harness between the battery and the DSC HU/CM terminal B Open circuit in the wiring harness between the DSC HU/CM terminal A and the body ground Open or short circuit in the DSC HU/CM internal motor relay, or stuck motor relay Open or short circuit in the DSC HU/CM internal motor, or frozen motor Fail-safe relay malfunction Poor connection at connectors (female terminal)
Courtesy of MAZDA MOTORS CORP.
