DTC B1317, B1318 [Dynamic Stability Control]: Notes
DTC B1317, B1318 POSSIBLE CAUSE
| DTC B1317, B1318 |
Power supply system |
| DETECTION CONDITION |
- B1317
- The voltage at DSC HU/CM terminal J is 16.8 V
or more.
- B1318
- The vehicle speed exceeds 6 km/h
and the voltage at ABS HU/CM terminal J is less than 9.6 V
|
| POSSIBLE CAUSE |
- ENGINE 15 A fuse malfunction

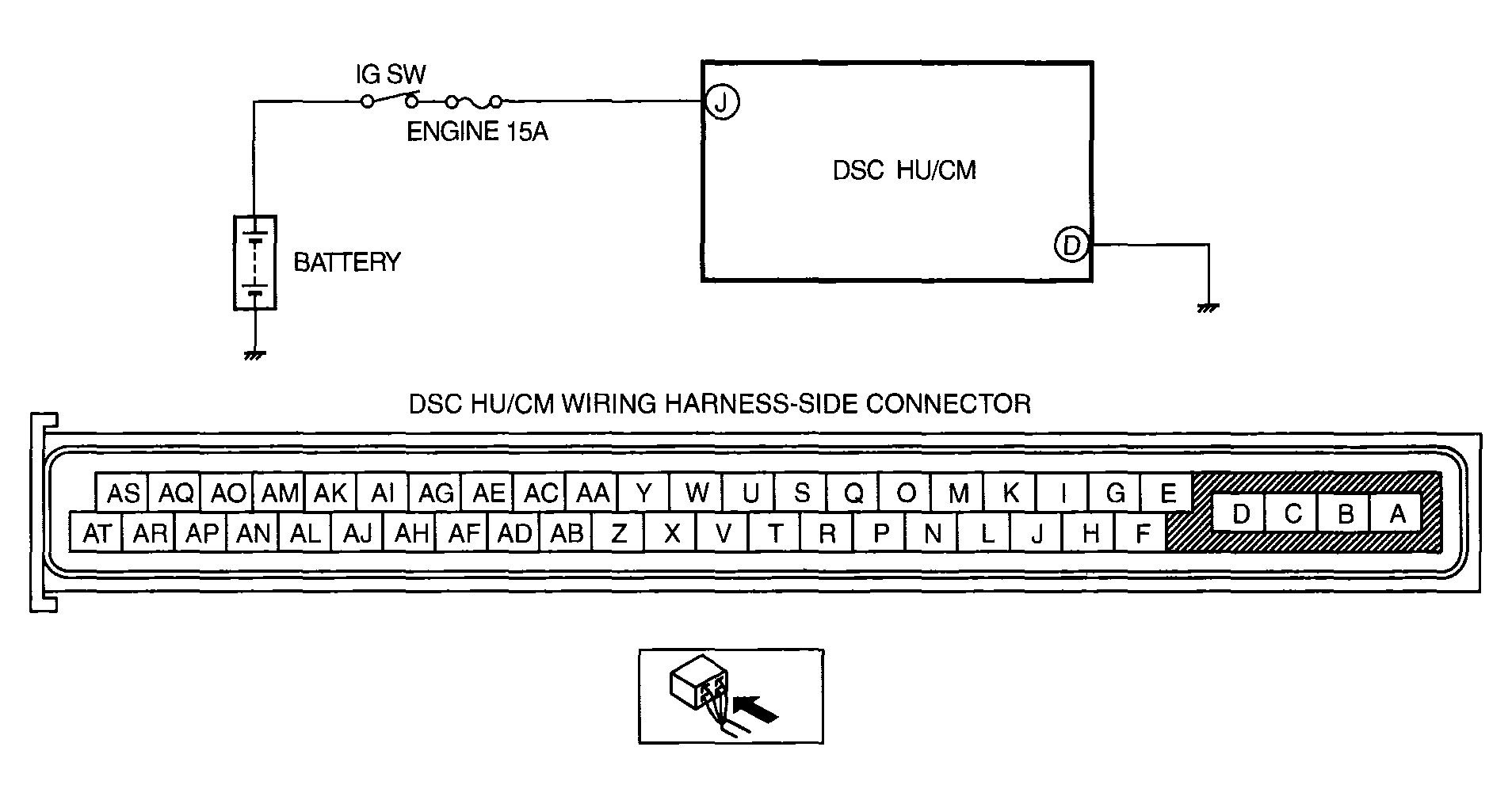

- Open circuit or short to ground in the wiring harness between the DSC HU/CM terminal J and the battery
- Open circuit or faulty ground in the wiring harness between the DSC HU/CM terminal D and the body ground
- Battery deterioration
- Generator malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
