Door Lock Striker Removal/Installation

  1. Remove the screws, and then remove the door lock striker.

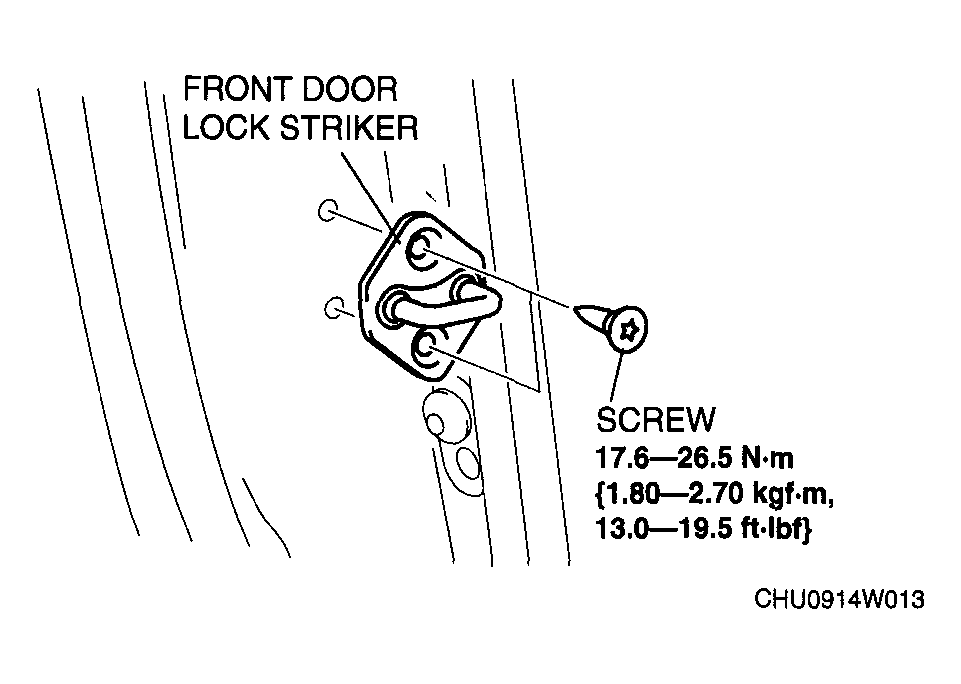

    2. Fig 1: Removing Door Lock Striker With Torque Specifications
    G04323508Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
  3. Adjust the door. (See DOOR ADJUSTMENT .)
