Coil Antenna Installation Note

  1. Install the hole of coil antenna to the tab of steering lock.
  2. Install the hook of coil antenna to the steering lock.

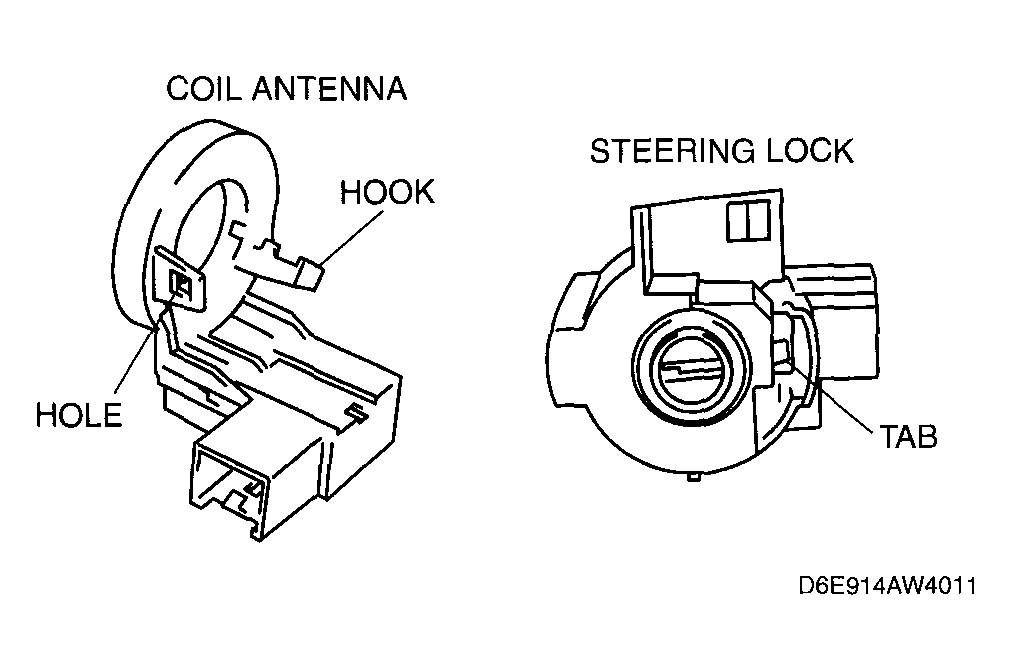

    Fig 1: Installing Hole Of Coil Antenna To Tab Of Steering Lock
    G04323558Courtesy of MAZDA MOTORS CORP.
