TCM Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
Intermediate sensor signal
Intermediate sensor signal
TCM terminal: 1K(+)-1X(-)
Oscilloscope setting: 4 V/DIV (Y) 0.2 ms/DIV (X)
Measuring condition: Vehicle speed at 40 km/h {25 mph}, 4GR

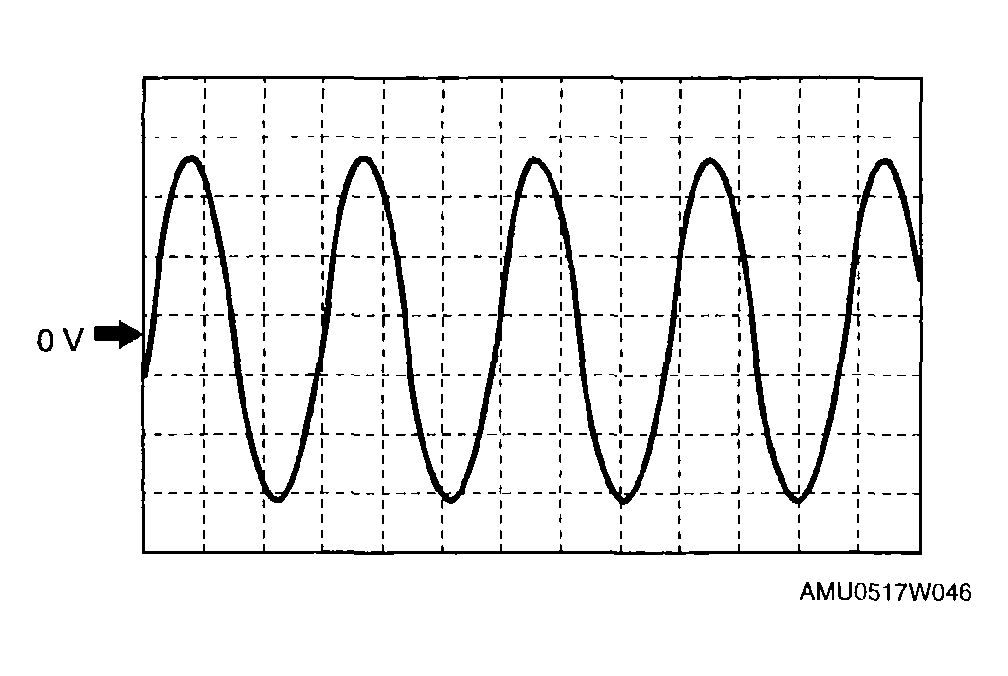

Fig 1: Intermediate Sensor Signal Oscilloscope Reference Graph
Courtesy of MAZDA MOTORS CORP.
