Steering Gear and Linkage Installation Note

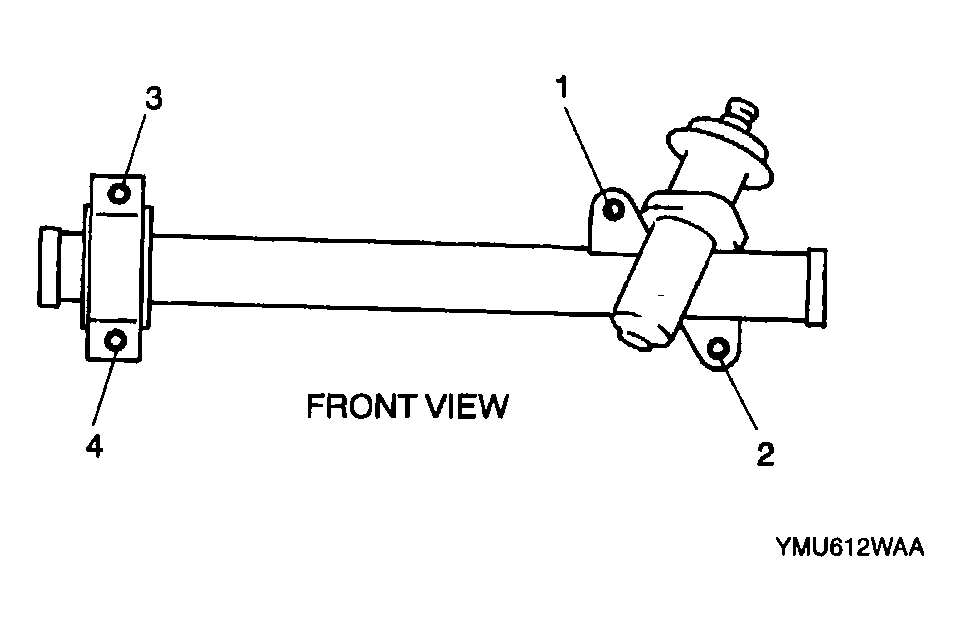

- Loosely tighten nuts 3, 4 and bolt 2.
- Tighten the mounting bracket nuts and bolts to the specified torque in the order shown.
- Tighten the crossmember nuts.
Tightening torque 93.1-131.3 N.m {9.50-13.38 kgf.m, 68.67-96.84 ft.lbf}
