Driver-Side Side Air Bag Sensor Connector End View

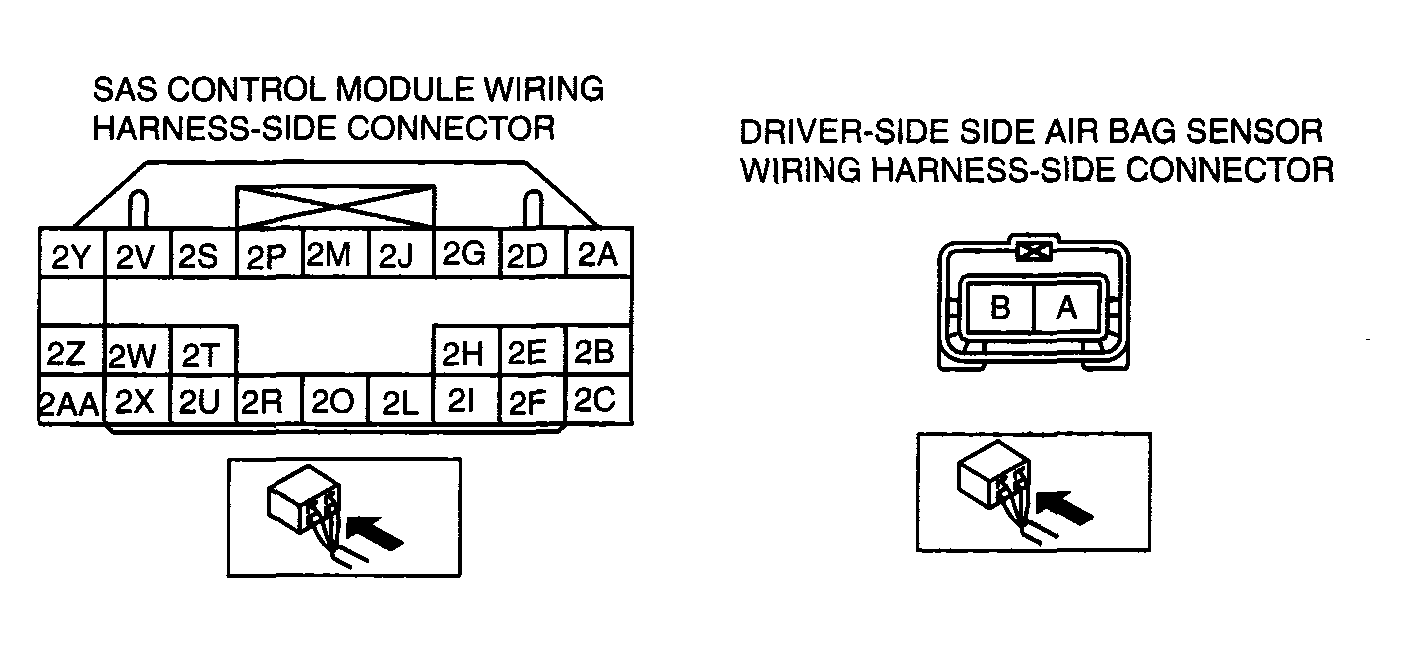

Fig 1: Driver-Side Side Air Bag Sensor Connector End View
G04329104Courtesy of MAZDA MOTORS CORP.

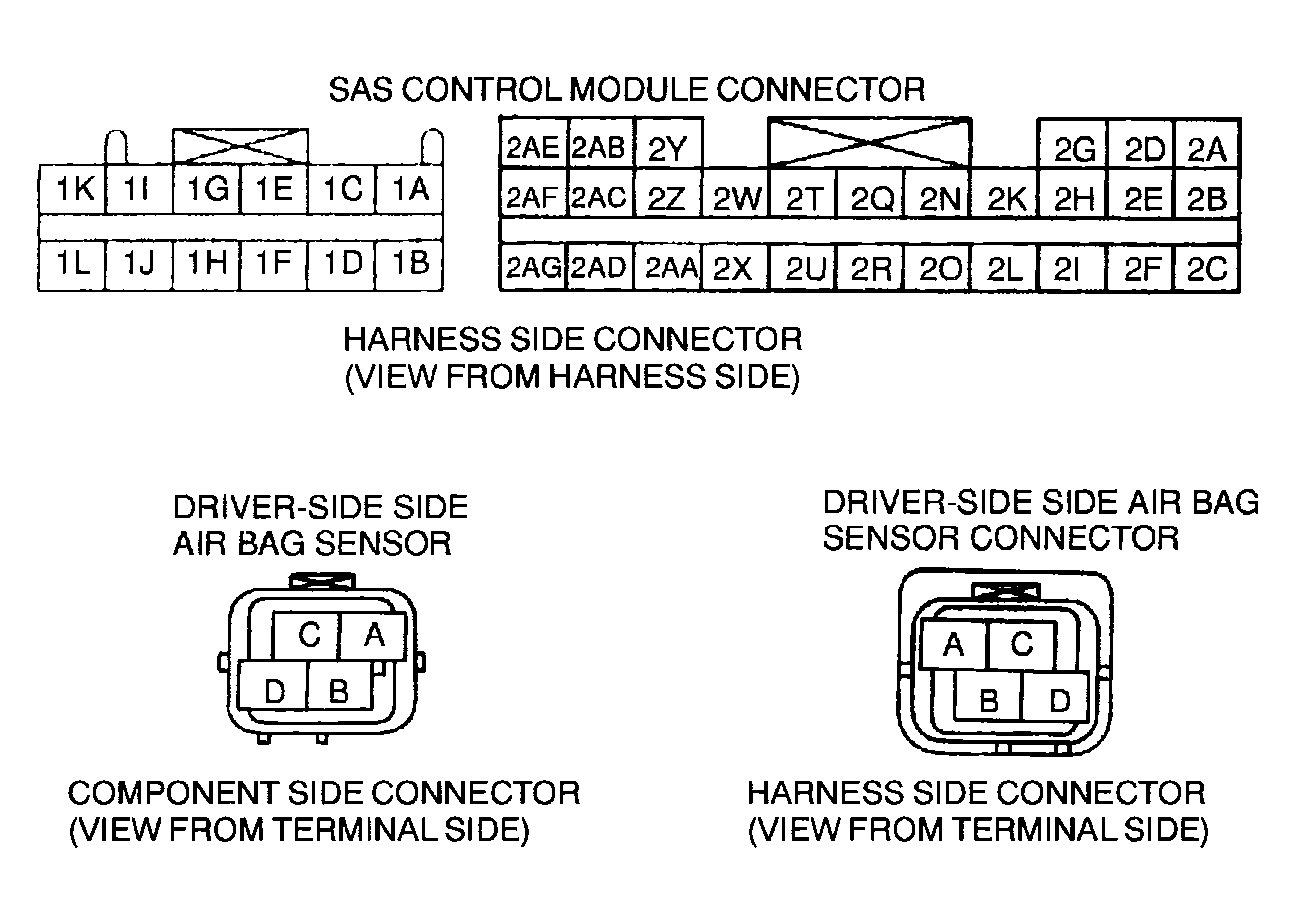

Fig 1: Driver-Side Side Air Bag Sensor Connector End View
G04329038Courtesy of MAZDA MOTORS CORP.

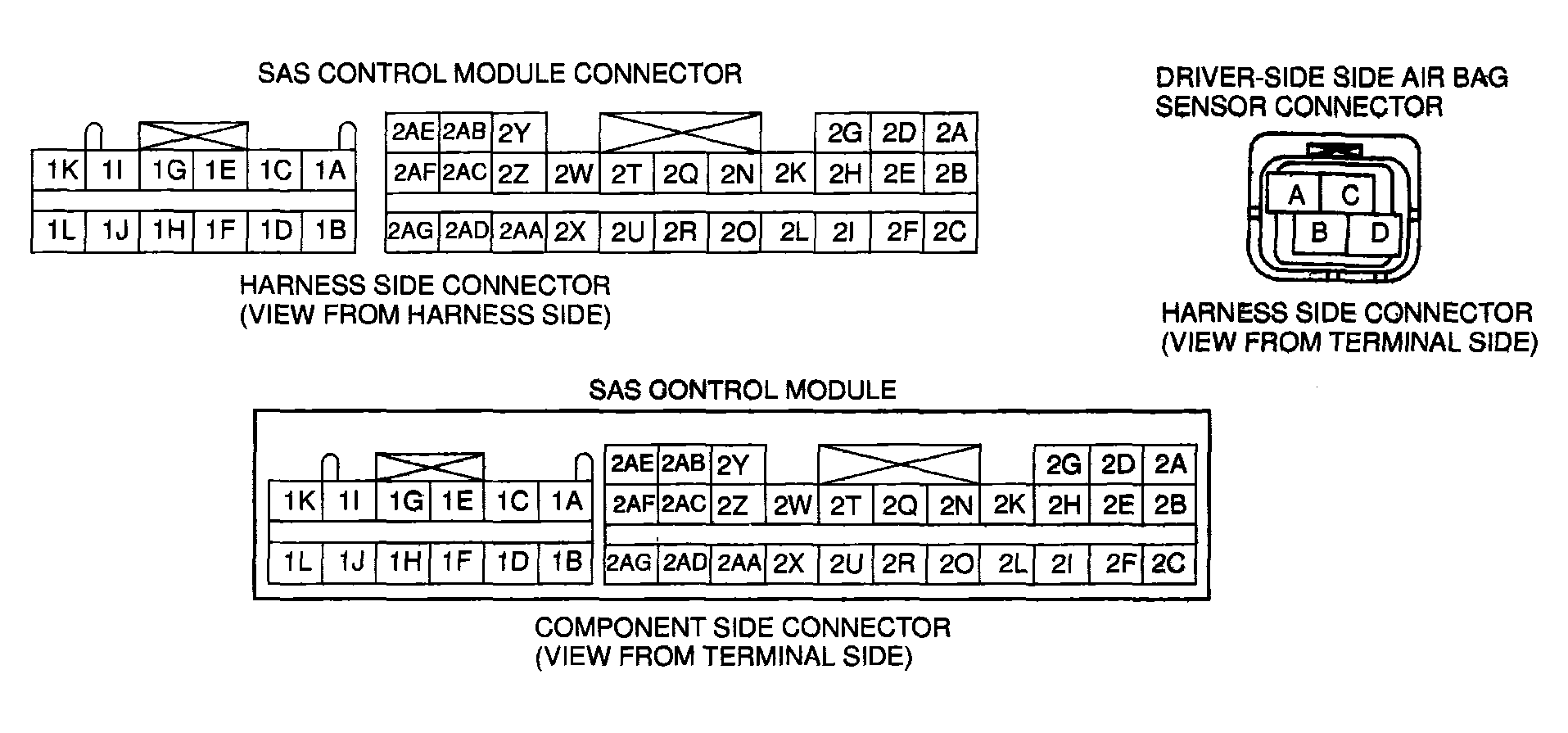

Fig 1: Driver-Side Side Air Bag Sensor Connector End View
G04329037Courtesy of MAZDA MOTORS CORP.
