Rear Main Fan Switch Removal/Installation

1. Disconnect the negative battery cable.
2. Remove the center upper panel. (See METER HOOD REMOVAL/INSTALLATION .)
3. Remove in the order indicated in Fig 1.
4. Install in the reverse order of removal.

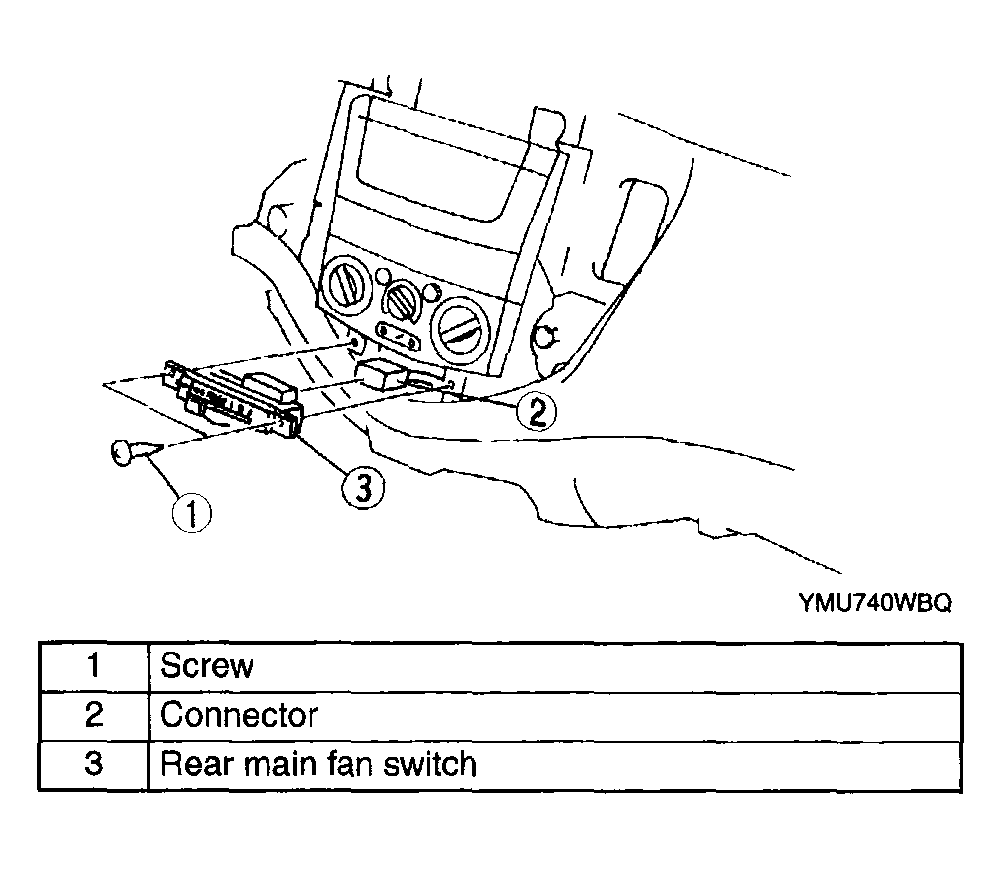

Fig 1: Identifying Rear Main Fan Switch

Courtesy of MAZDA MOTORS CORP.
