Rear Climate Control Unit Removal/Installation

  1. Remove the rear cup holder (RH).
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

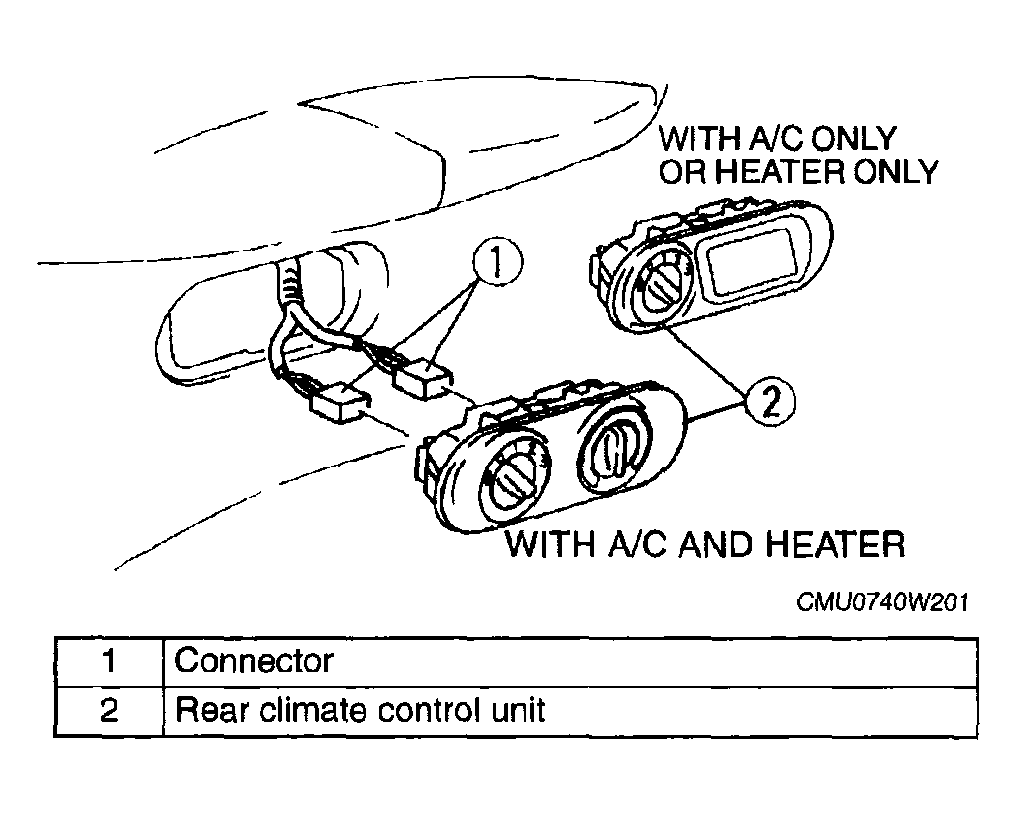

Fig 1: Identifying Rear Climate Control Unit
G04329002Courtesy of MAZDA MOTORS CORP.
