Front Blower Relay Removal/Installation

NOTE:

• Because the lock section of the unit is damaged easily, do not remove the front blower relay from the bracket unless replacement is necessary. Always perform an inspection of the front blower relay before removal.

1. Disconnect the negative battery cable.
2. Remove in the order indicated in Fig 1.
3. Install in the reverse order of removal.

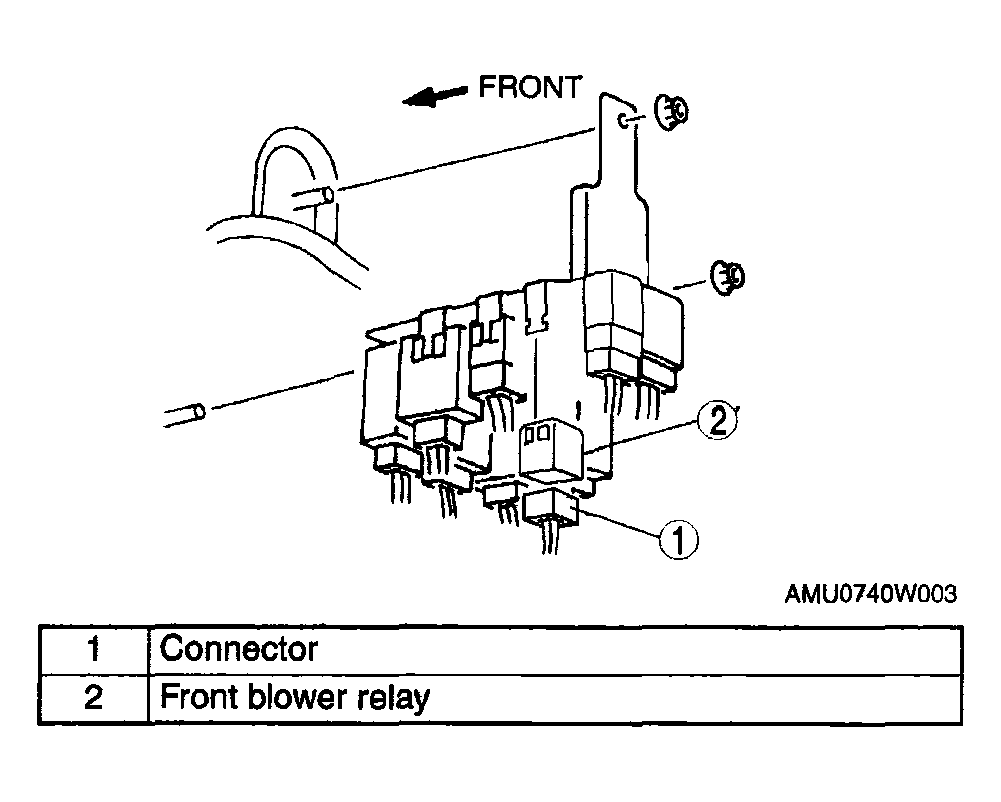

Fig 1: Identifying Front Blower Relay

Courtesy of MAZDA MOTORS CORP.
