Blower Unit Disassembly/Assembly

  1. Disassemble in the order indicated in Fig 1.
  2. Assemble in the reverse order of disassembly.

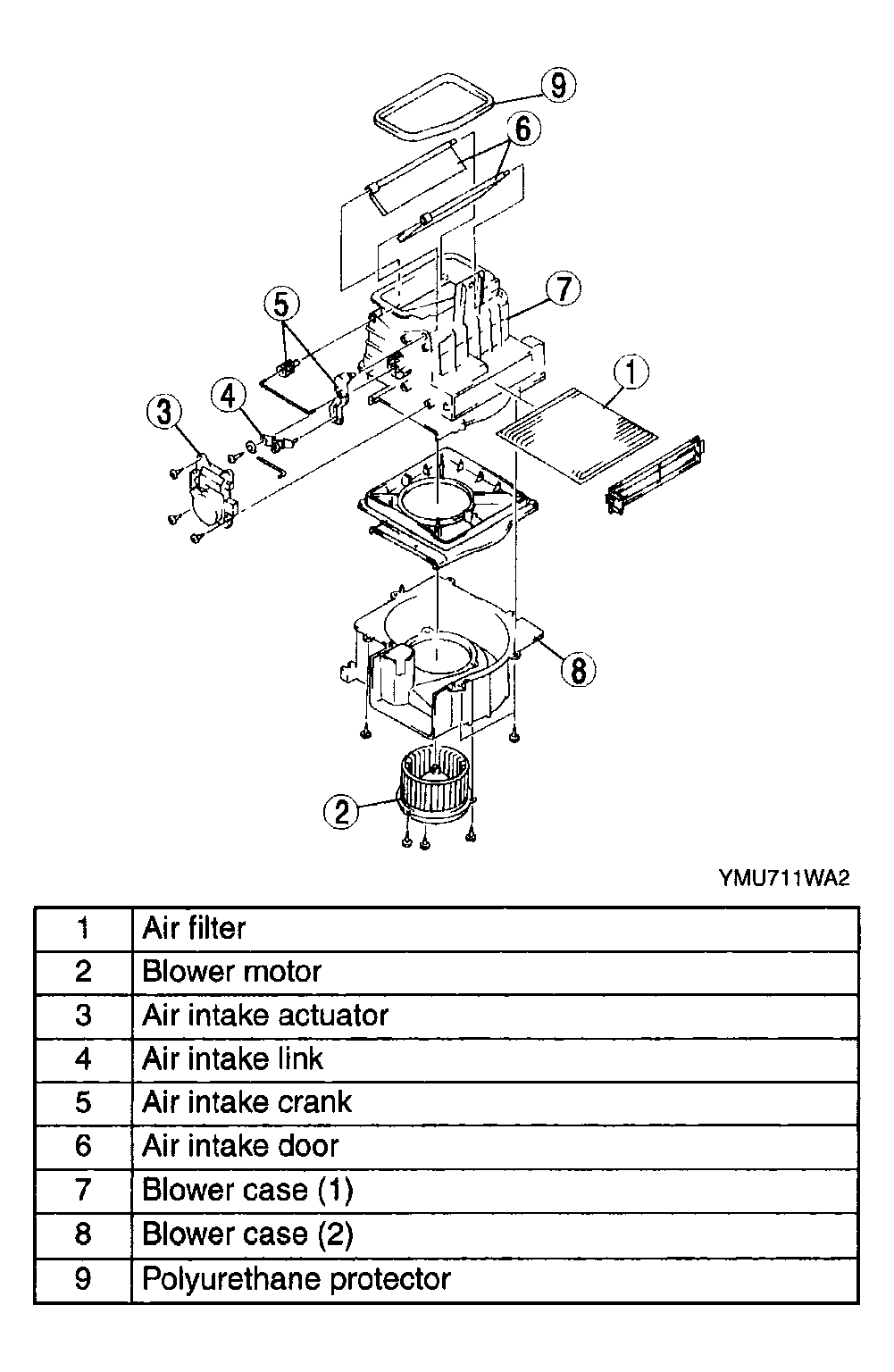

Fig 1: Exploded View Of Blower Unit
G04328940Courtesy of MAZDA MOTORS CORP.
