Basic System Location Index

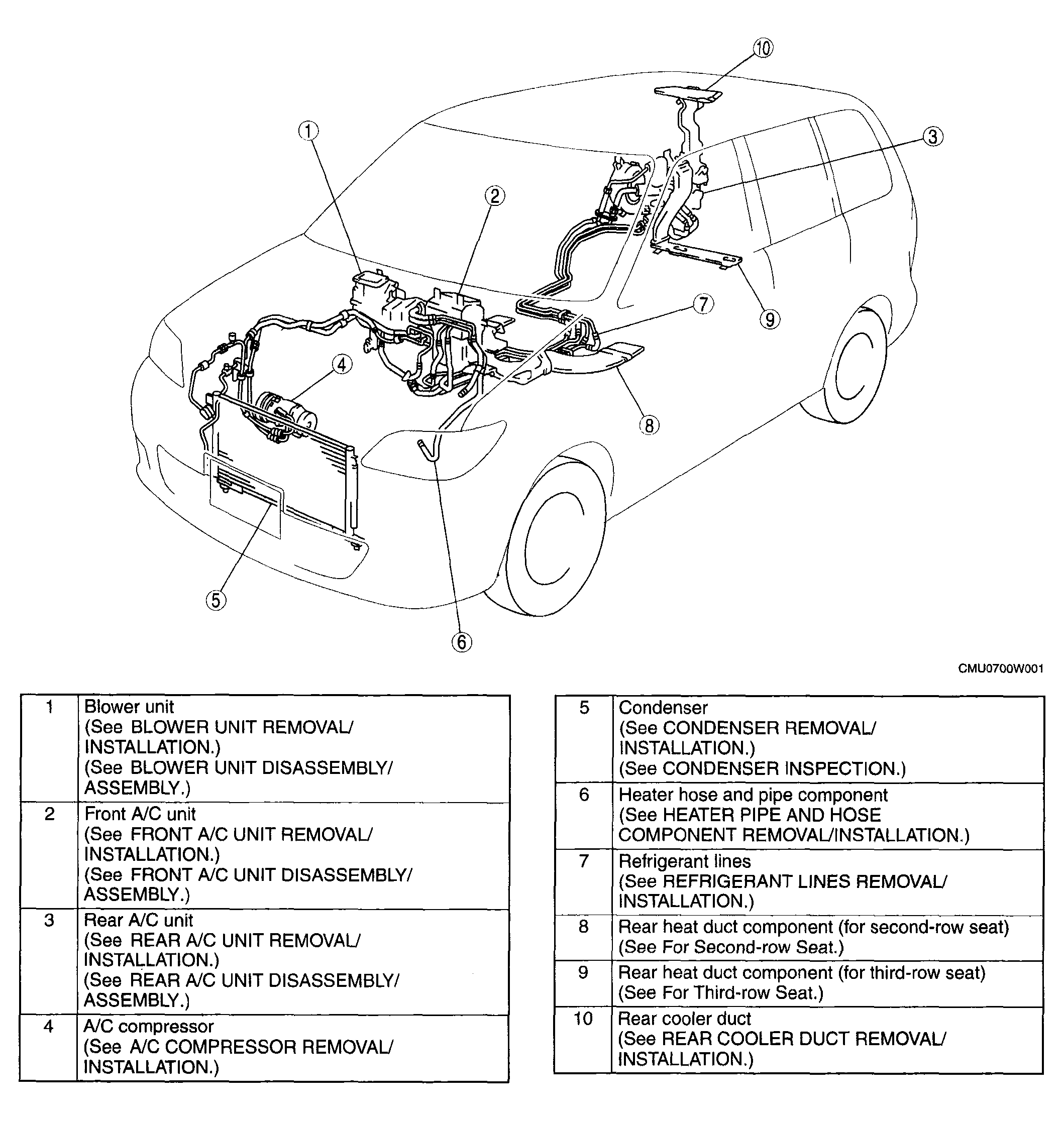

Fig 1: Identifying Basic System Components Location

G04328938

Courtesy of MAZDA MOTORS CORP.
