Airflow Mode Link Removal/Installation

  1. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  2. Disconnect the airflow mode wire from the airflow mode link.
  3. Remove in the order indicated in Fig 1.

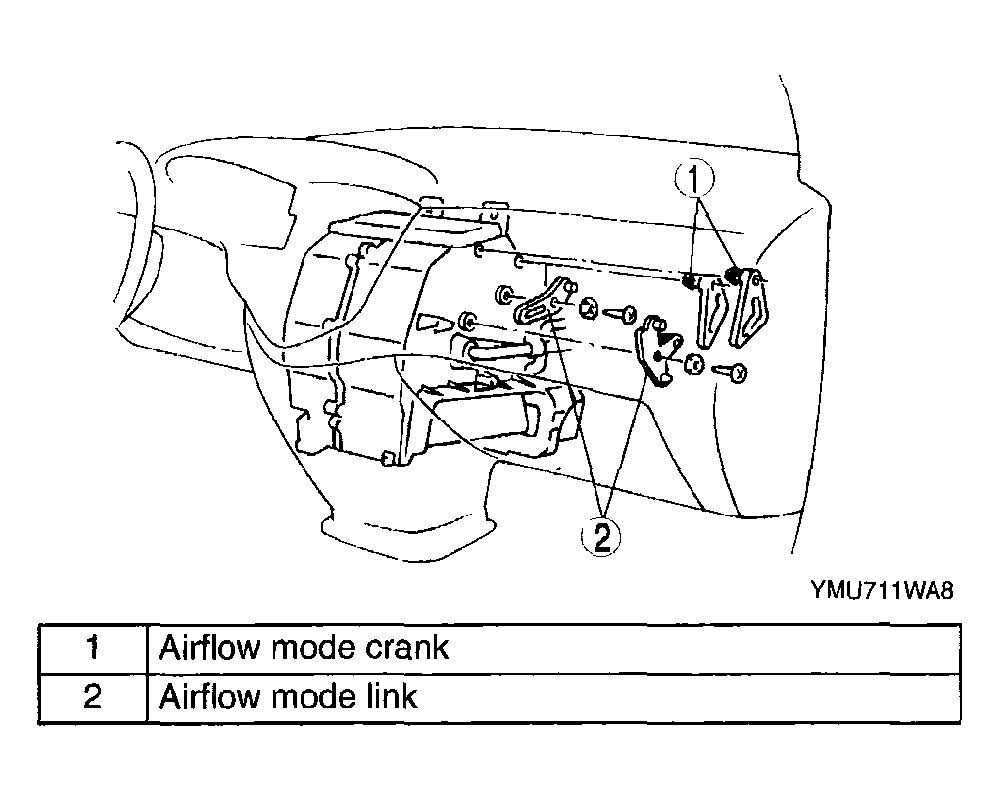

    4. Fig 1: Removing Airflow Mode Link
    G04328948Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
    NOTE:
    • Apply silicone grease or all-purpose grease to each link.
  5. Adjust the airflow mode wire. (See FRONT CLIMATE CONTROL UNIT WIRE ADJUSTMENT .)
