Mazda
>>
2006
>>
MPV ES
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine Control System AJ)
>>
Symptom Troubleshooting Wiring Diagram
>>
With Rear HO2S Model
>>
With immobilizer system
With immobilizer system

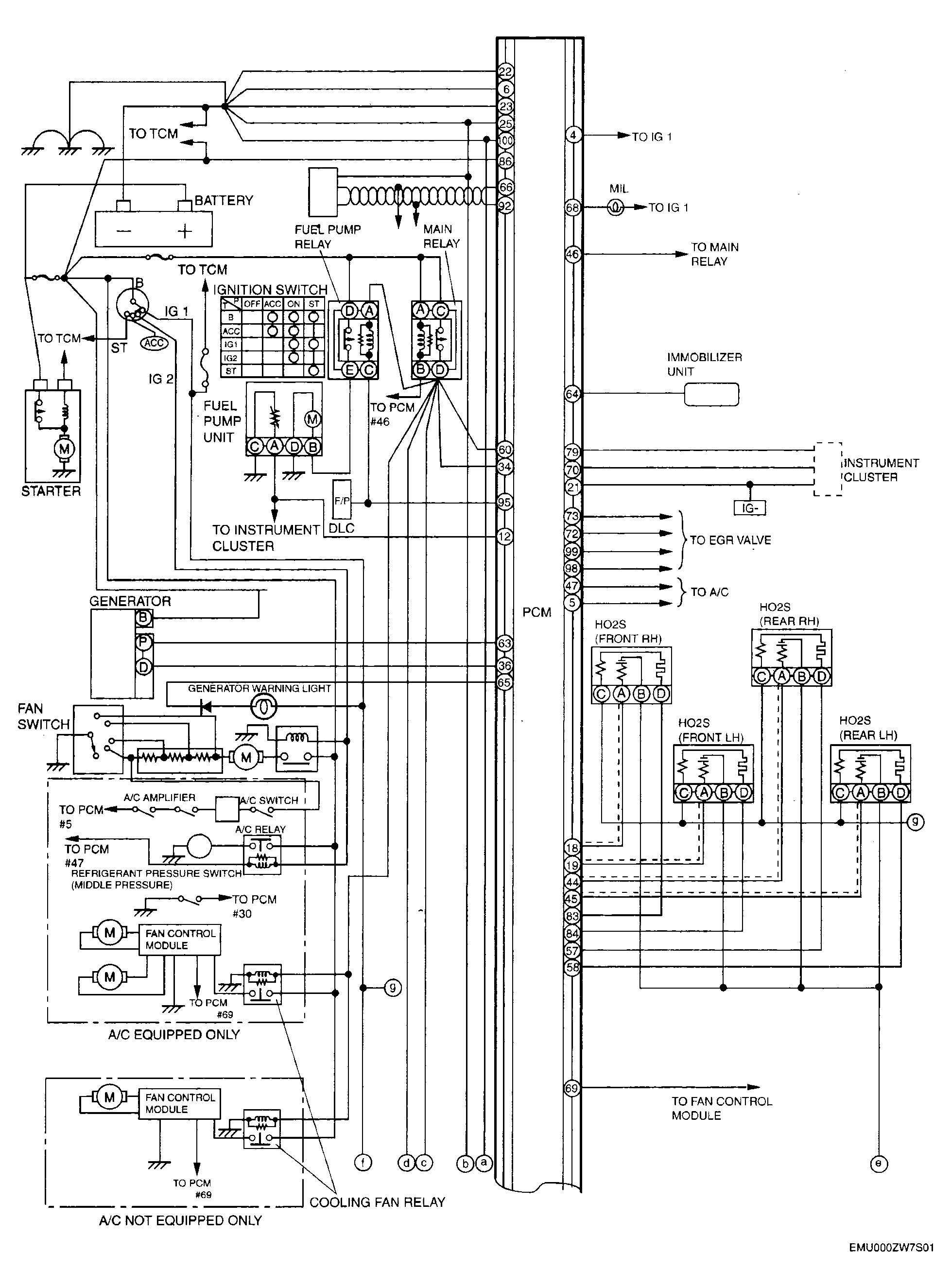

Fig 1: Symptom Troubleshooting Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (1 of 2)
Courtesy of MAZDA MOTORS CORP.

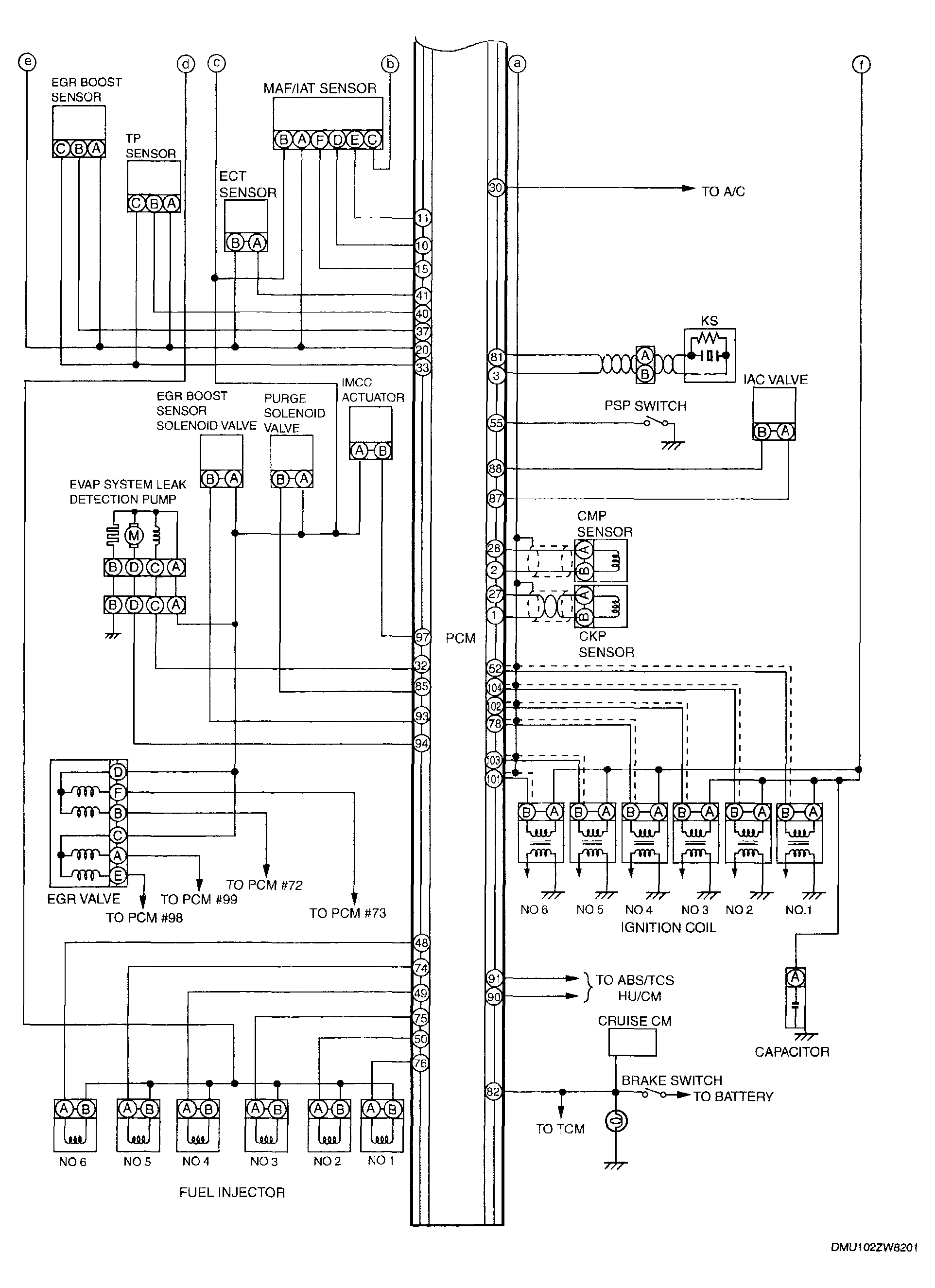

Fig 2: Symptom Troubleshooting Wiring Diagram [AJ] - With Rear HO2S Model - With Immobilizer System (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
