Exhaust Manifold (RH) Installation Note

Tighten the exhaust manifold installation nuts in the order shown.

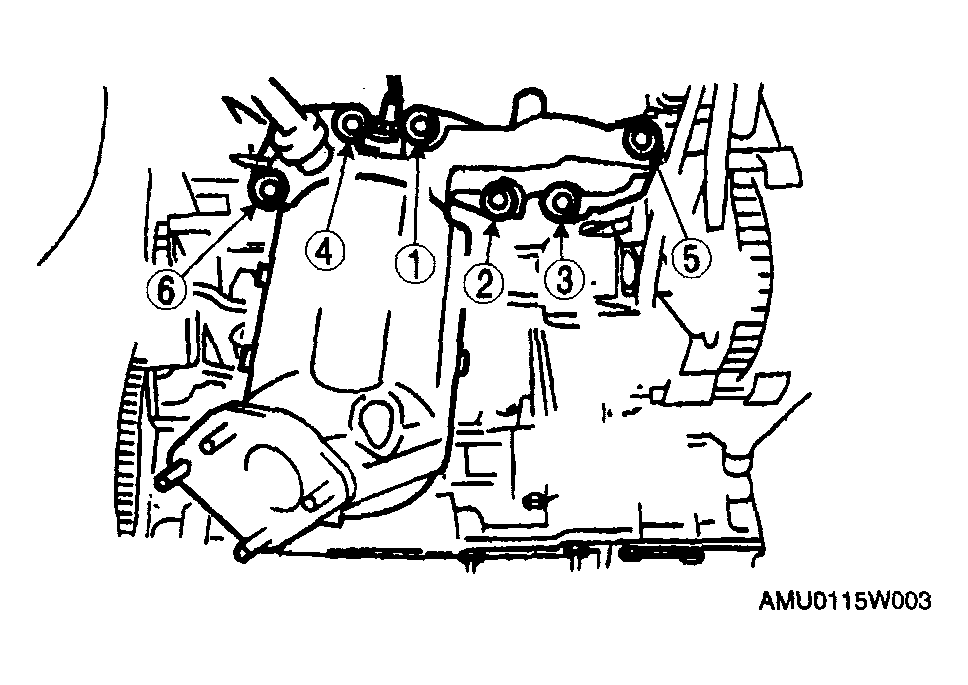

Fig 1: Tightening Exhaust Manifold Nuts In Sequence (RH)

G04328189

Courtesy of MAZDA MOTORS CORP.
