Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Symptom Troubleshooting [Keyless Entry System) >> Keyless Entry System Wiring Diagram

Keyless Entry System Wiring Diagram

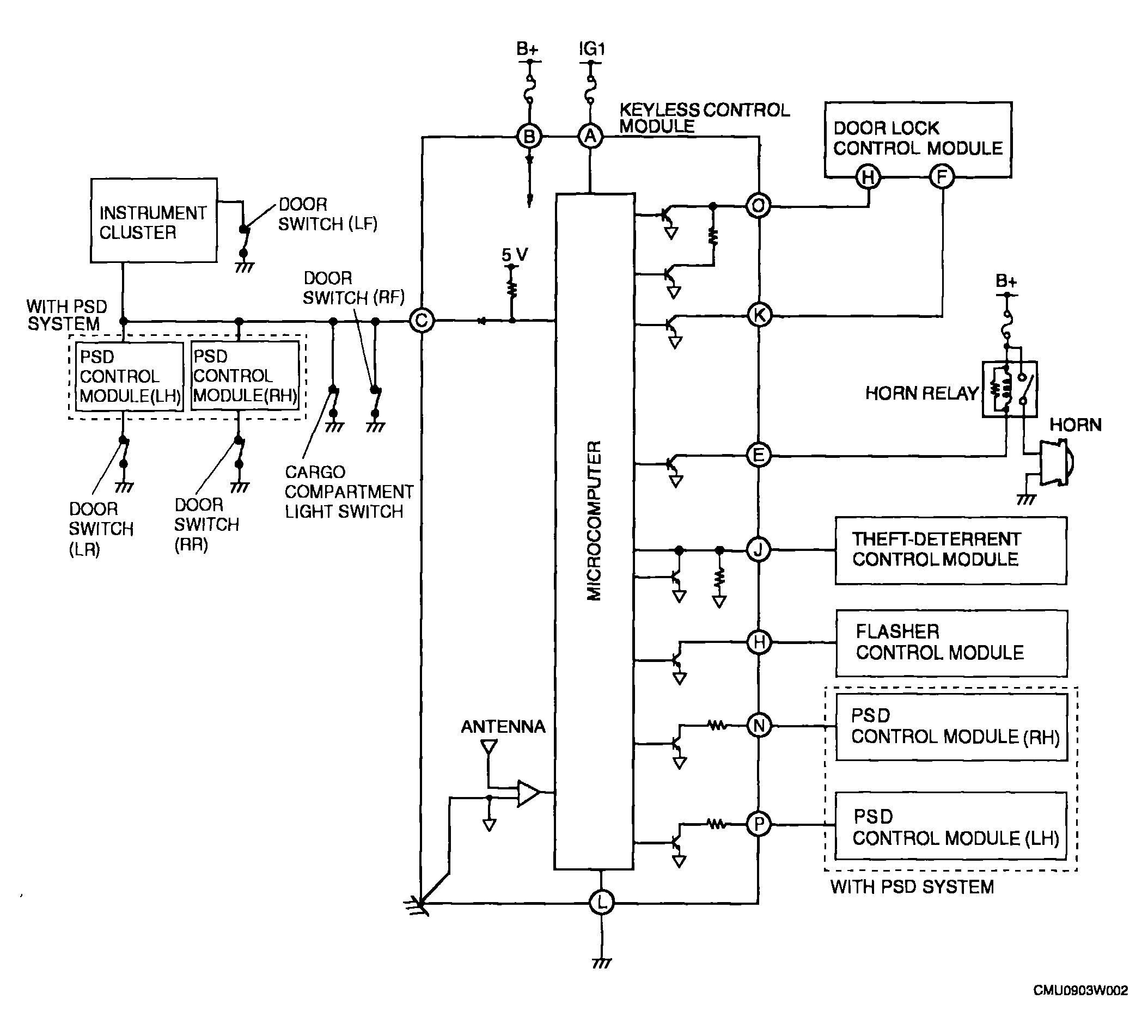

Fig 1: Keyless Entry System Wiring Diagram

G04329317

Courtesy of MAZDA MOTORS CORP.
