Symptom Troubleshooting [Keyless Entry System)
>>
Keyless Entry System On-Board Diagnosis
>>
On-board Diagnostic Function
On-board Diagnostic Function

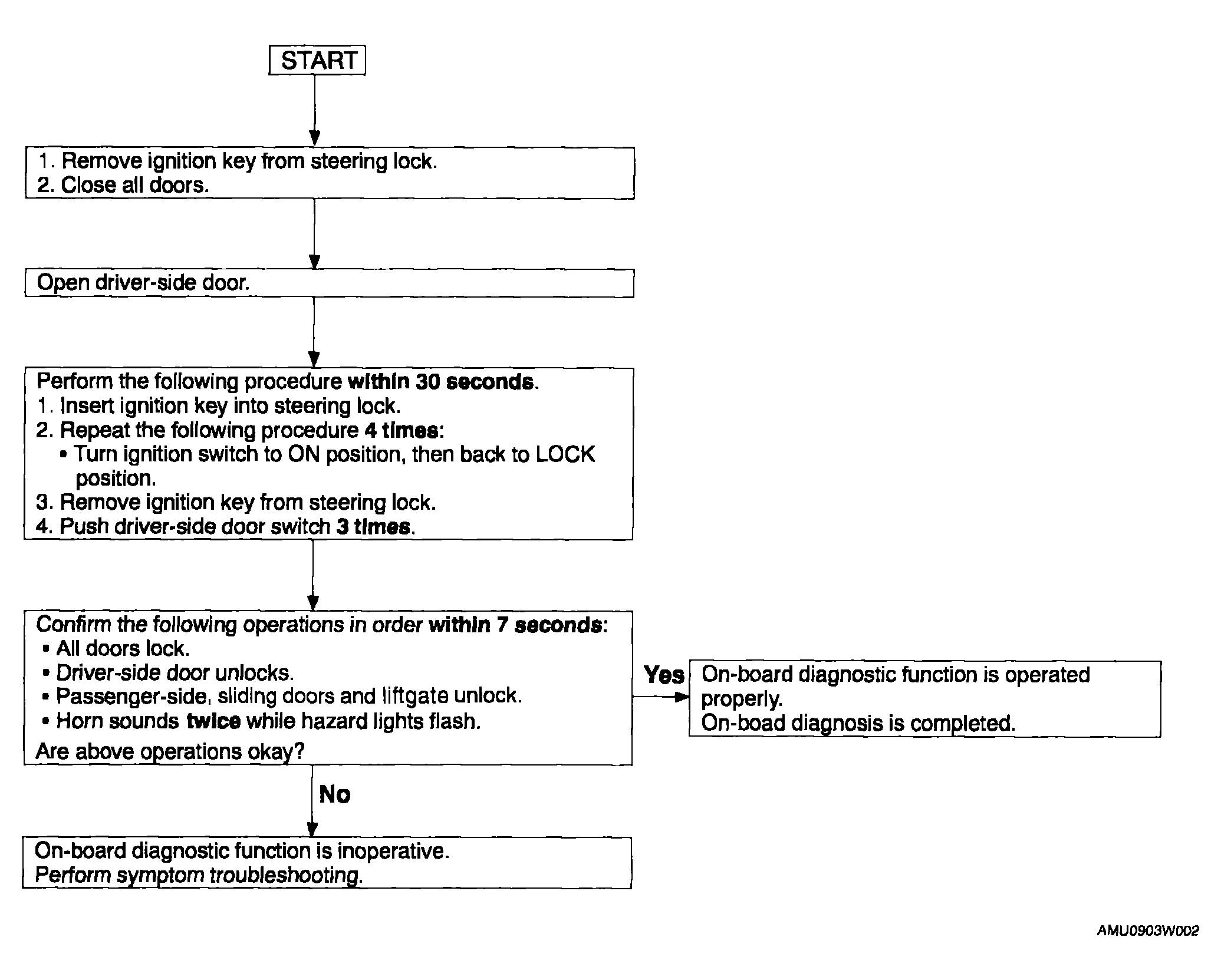

Fig 1: Keyless Entry System On-Board Diagnostic Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
