Power Brake Unit Function Check (Inspection Using The Testers): Notes

1. Connect the SSTs  , vacuum gauge, and pedal depression force gauge as shown in Fig 1.
   NOTE:

   • Use commercially available gauges and pedal depression force gauge.
   • Bleed the air from the SST  at gauge A.
2. After bleeding the air from the SST  , conduct the test as described in the following steps.

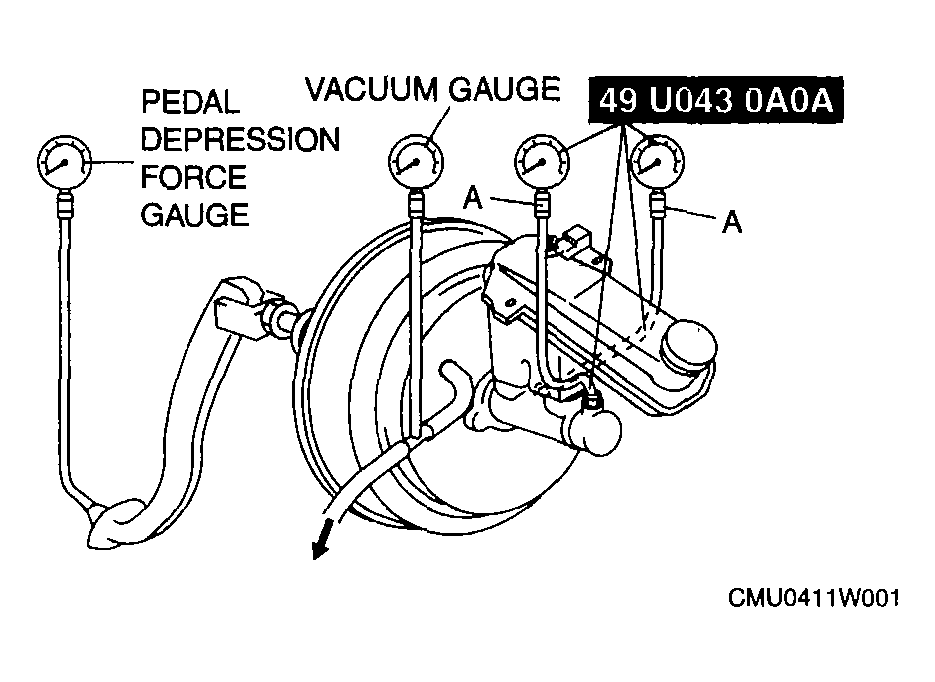

Fig 1: Bleeding Air From SST

Courtesy of MAZDA MOTORS CORP.
