Power Steering Pump Pulley - 4.0L: Notes

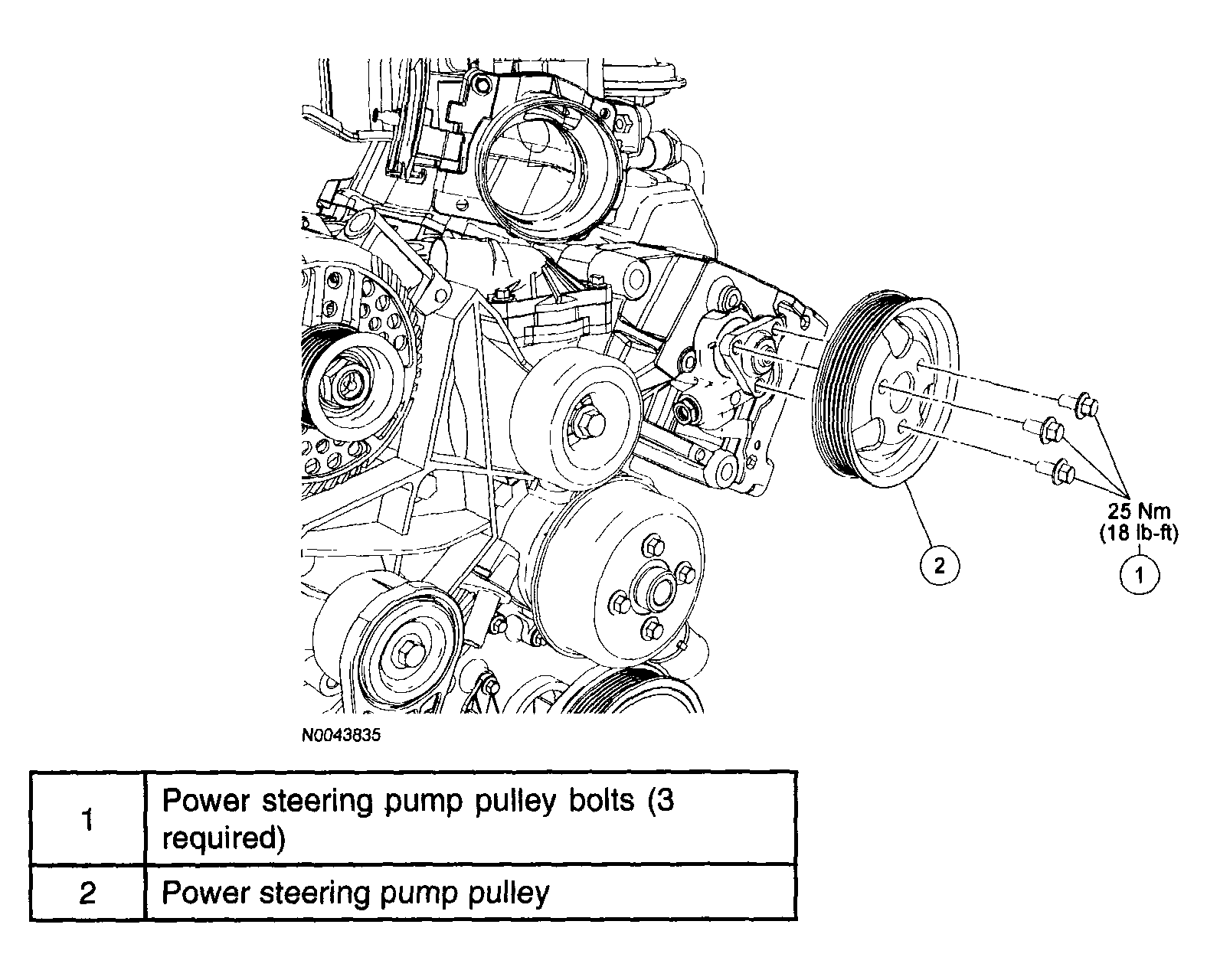

Fig 1: Removing/Installing Power Steering Pump Pulley With Torque Specifications

G04309568

Courtesy of MAZDA MOTORS CORP.
