Safety Belt Retractor - Front 2-Door, Regular Cab: Notes

NOTE:
  • LH shown, RH similar.

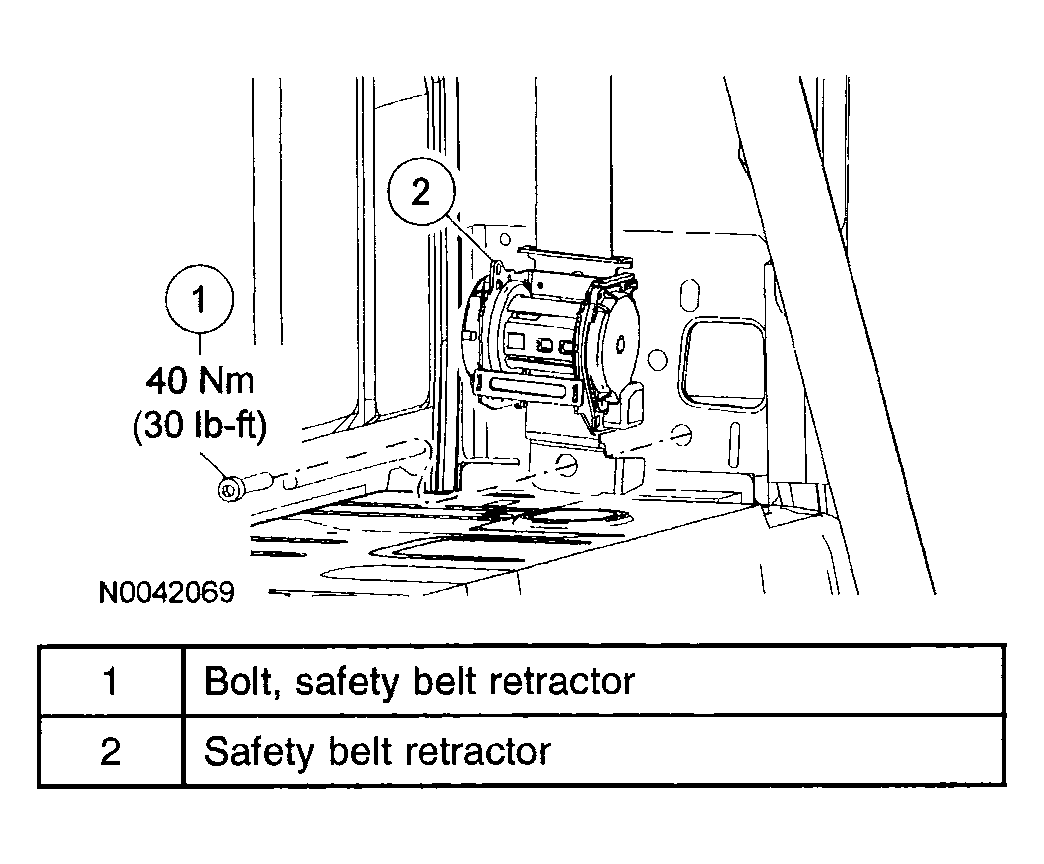

Fig 1: Removing & Installing Safety Belt Retractor - Front 2-Door With Torque Specifications
G04310006Courtesy of MAZDA MOTORS CORP.
