Connector End Views - Starting System

STARTING SYSTEM CONNECTOR END VIEWS

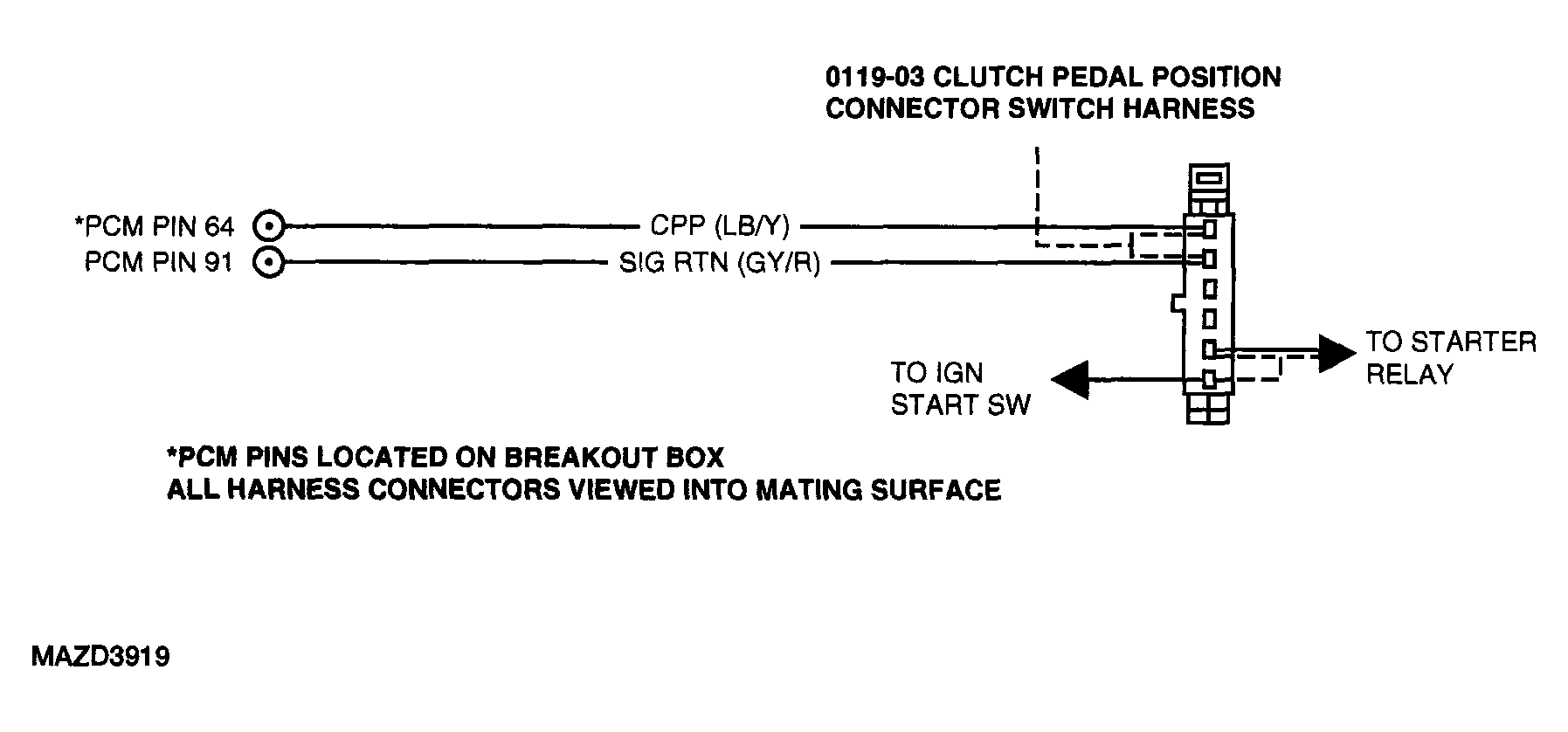

G04307004

Courtesy of MAZDA MOTORS CORP.

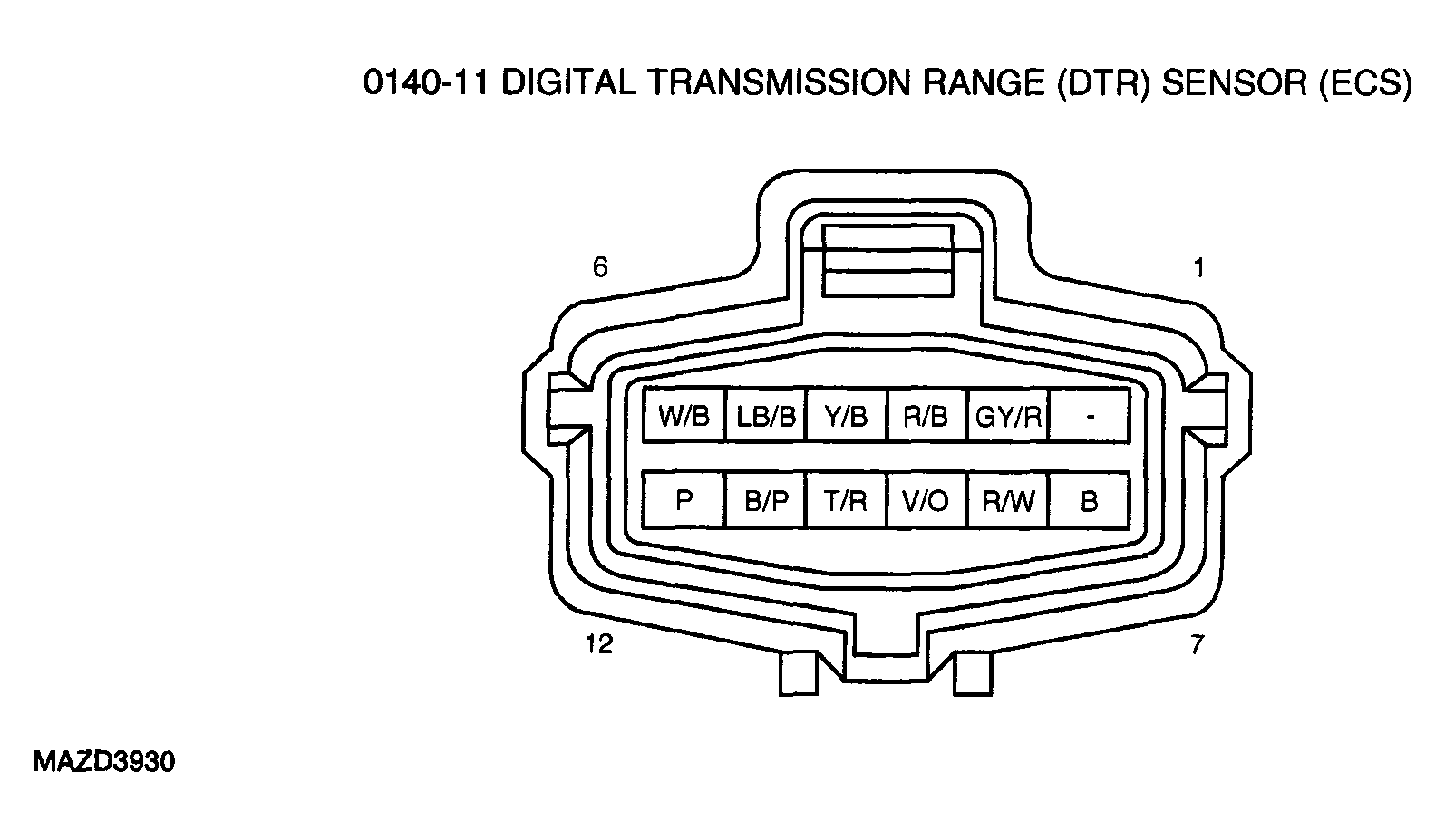

G04307005

Courtesy of MAZDA MOTORS CORP.

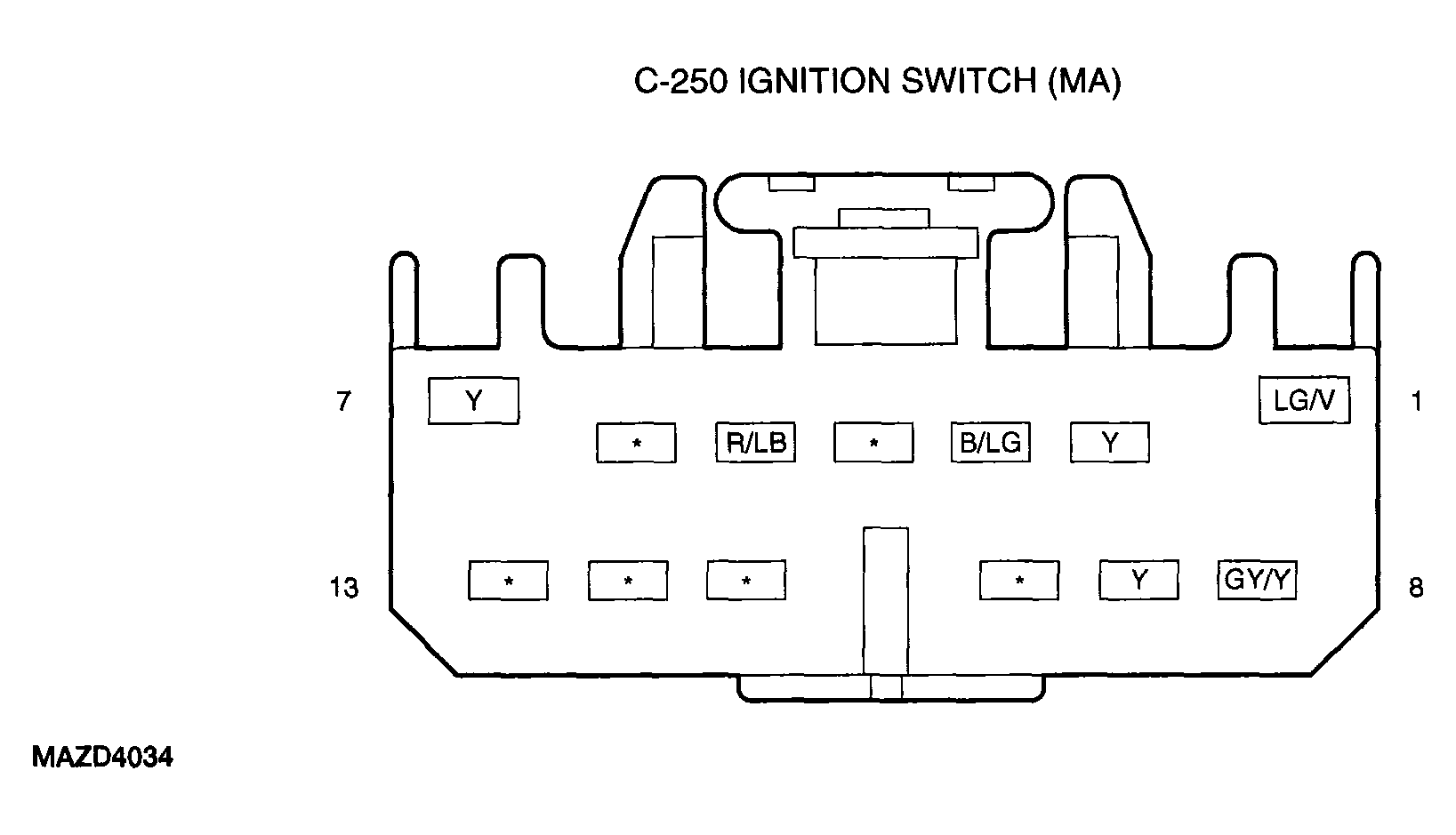

G04307006

Courtesy of MAZDA MOTORS CORP.

G04307007

Courtesy of MAZDA MOTORS CORP.
