Connector End Views - General Tests

GENERAL TESTS CONNECTOR END VIEWS

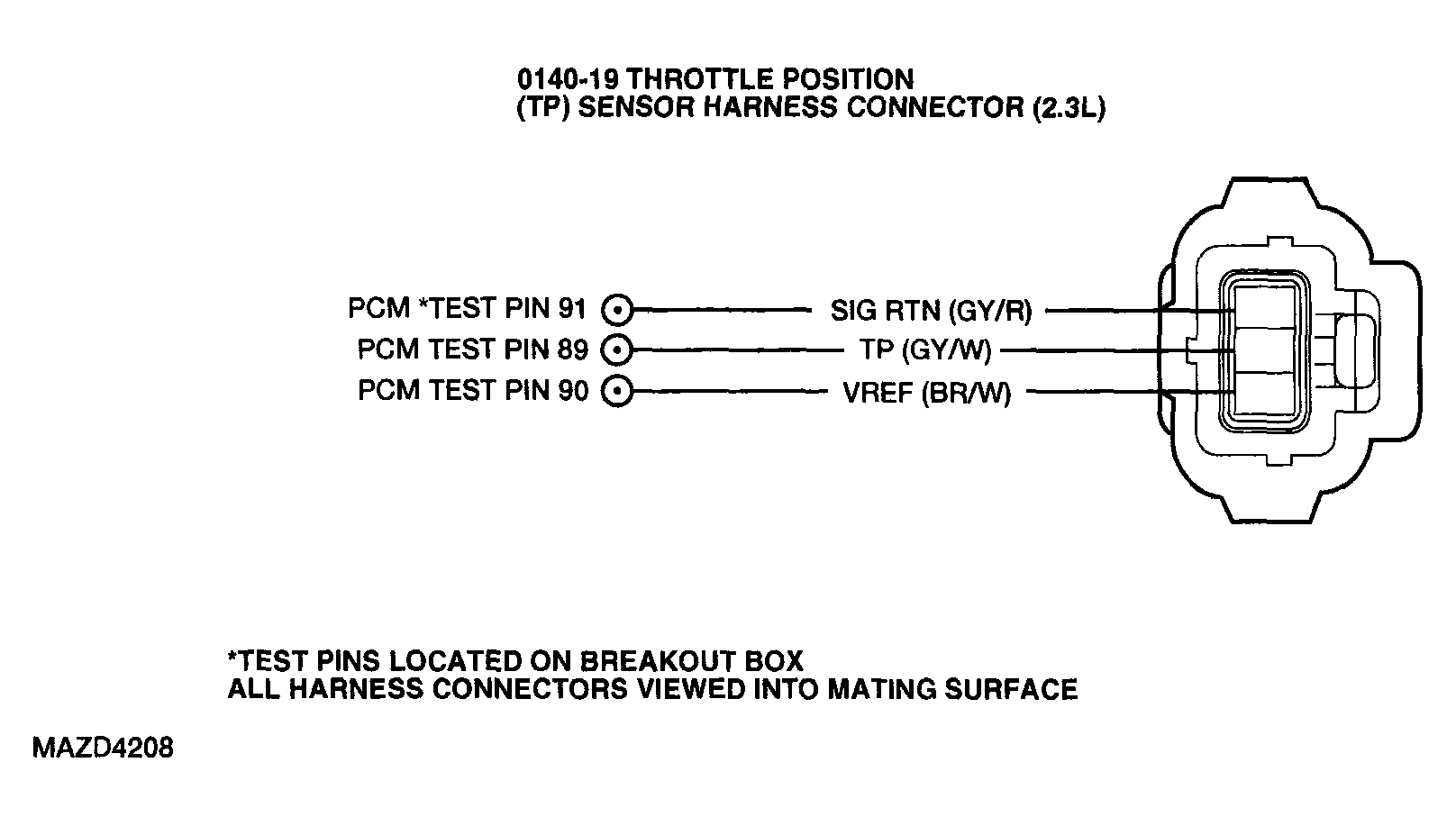

G04307015Courtesy of MAZDA MOTORS CORP.

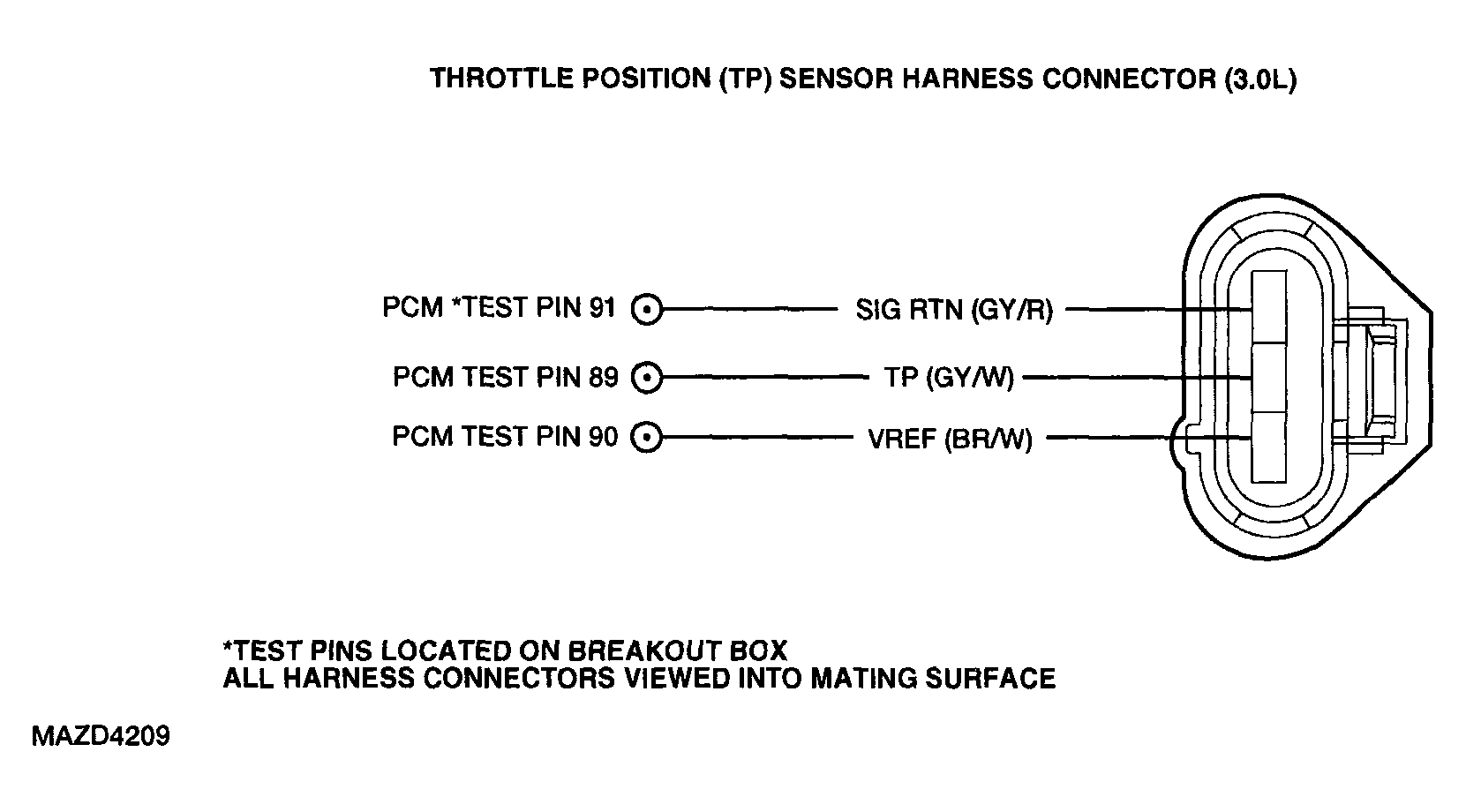

G04307016Courtesy of MAZDA MOTORS CORP.

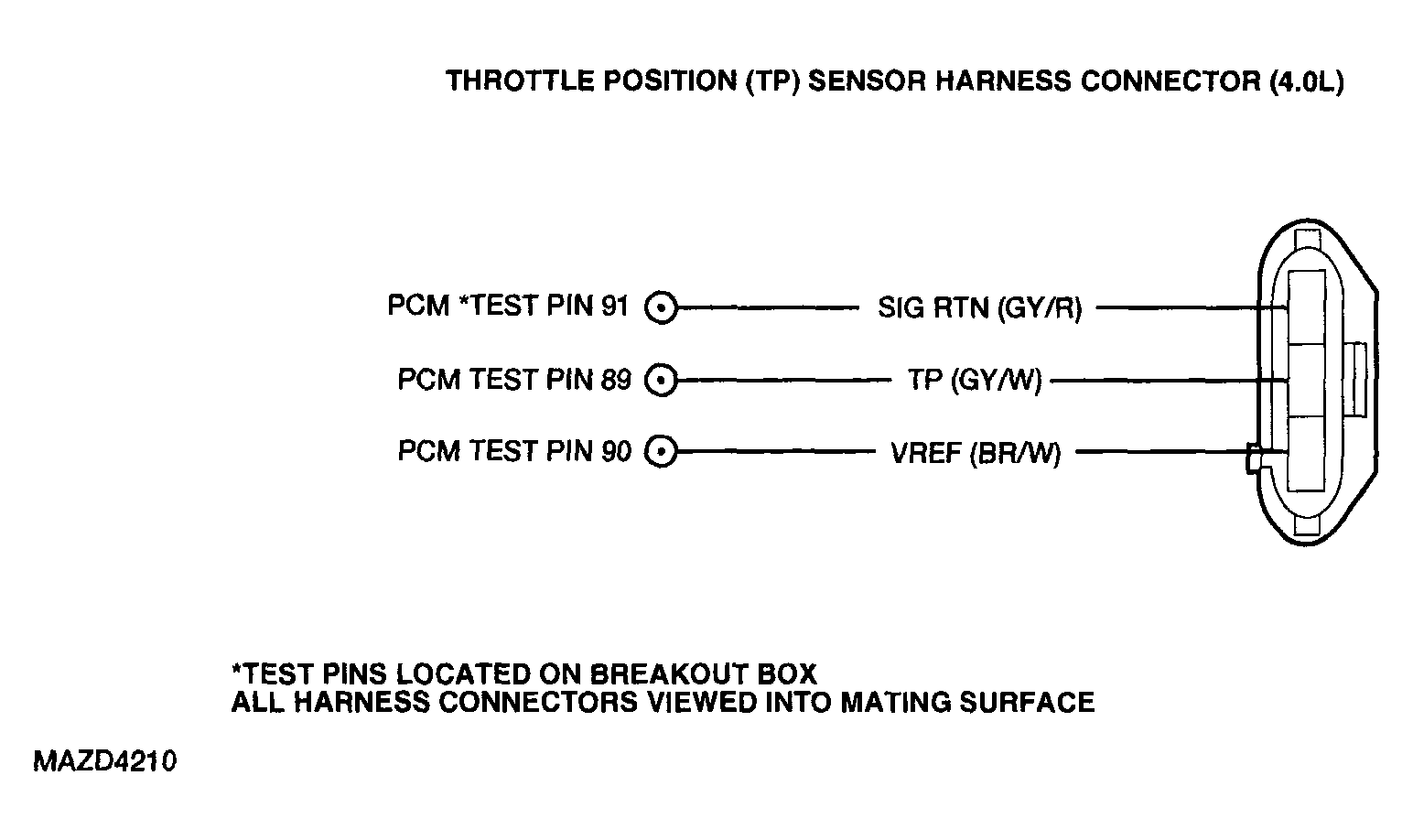

G04307017Courtesy of MAZDA MOTORS CORP.

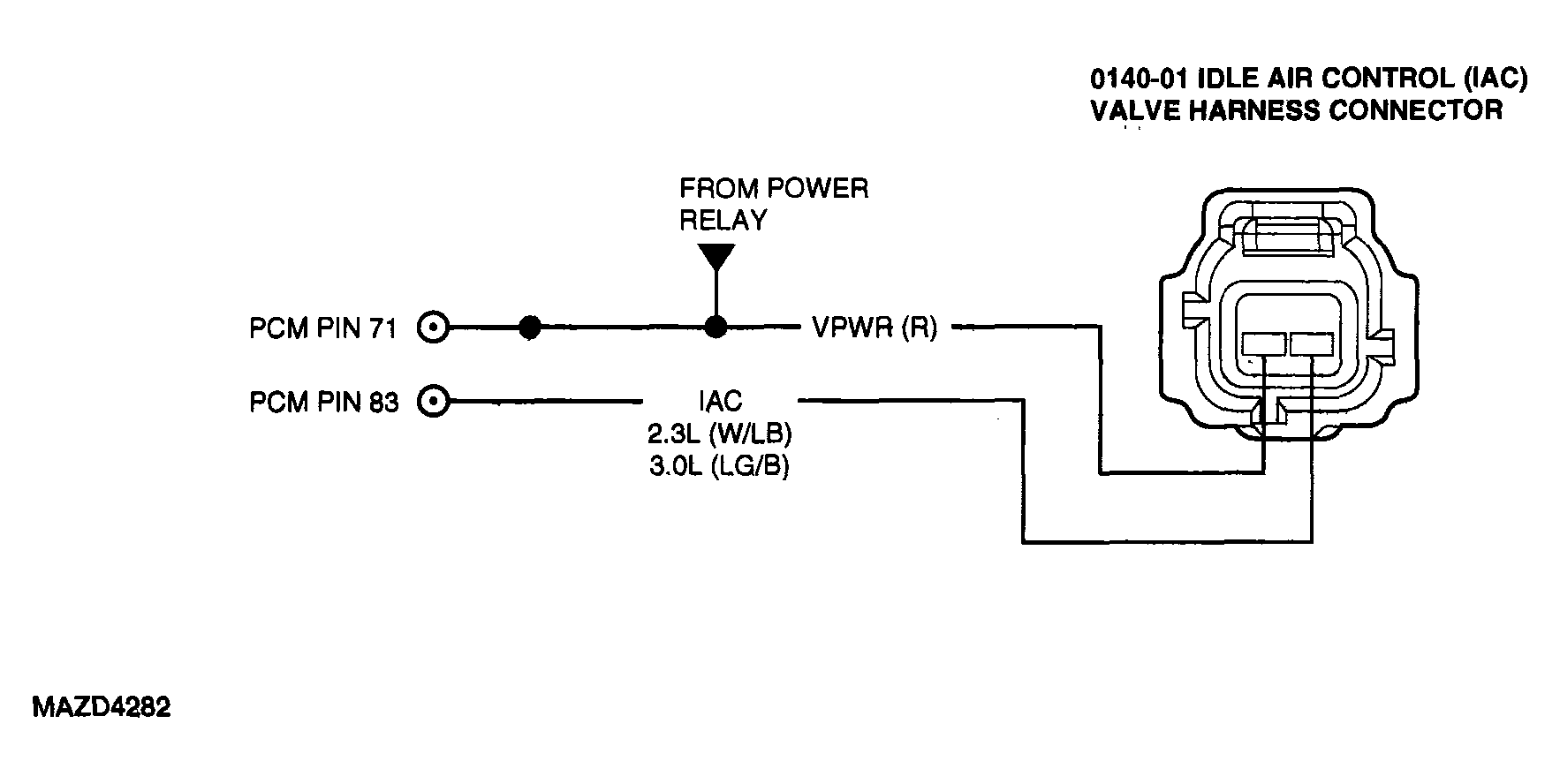

G04307018Courtesy of MAZDA MOTORS CORP.

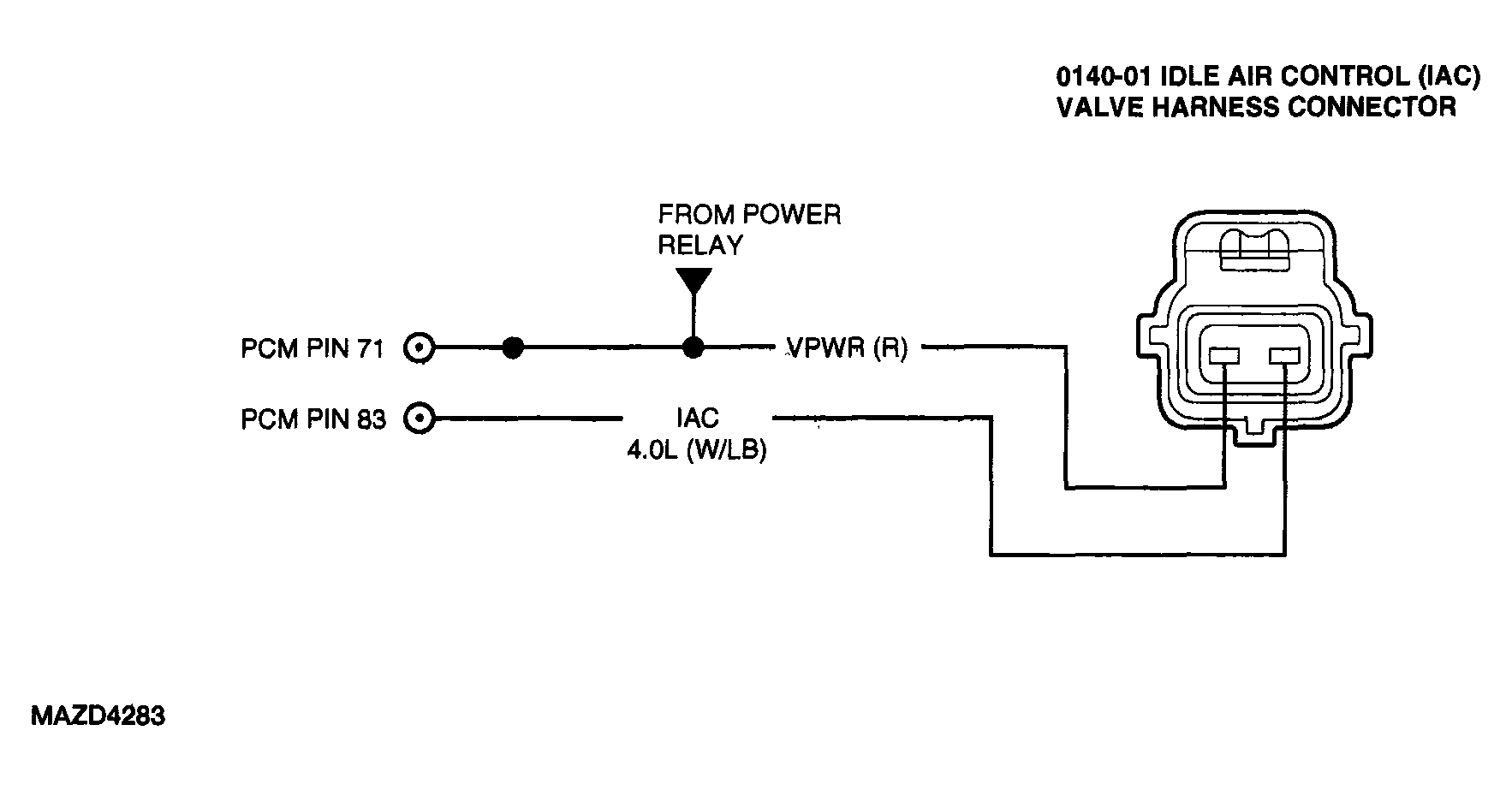

G04307019Courtesy of MAZDA MOTORS CORP.

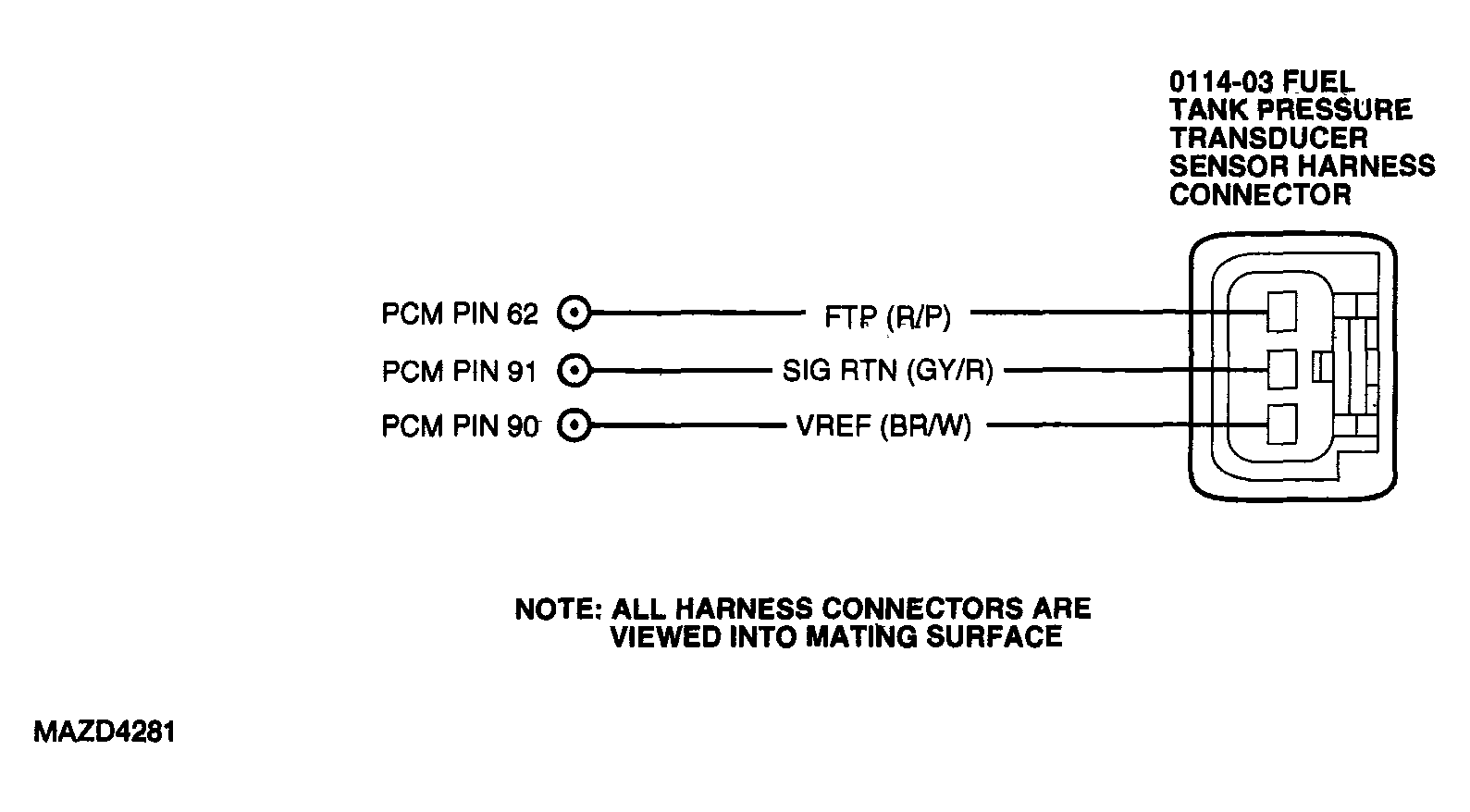

G04307020Courtesy of MAZDA MOTORS CORP.

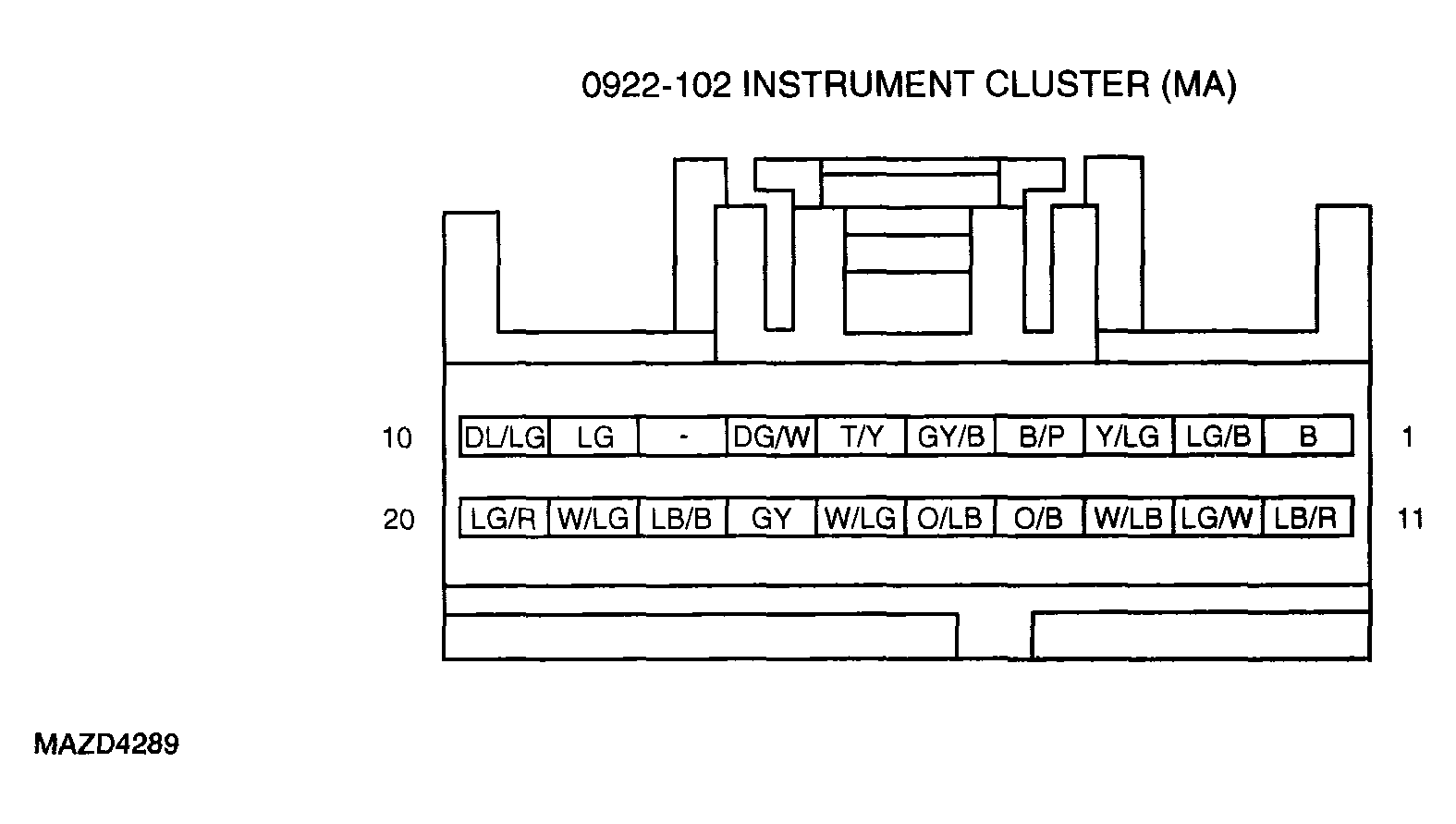

G04307021Courtesy of MAZDA MOTORS CORP.

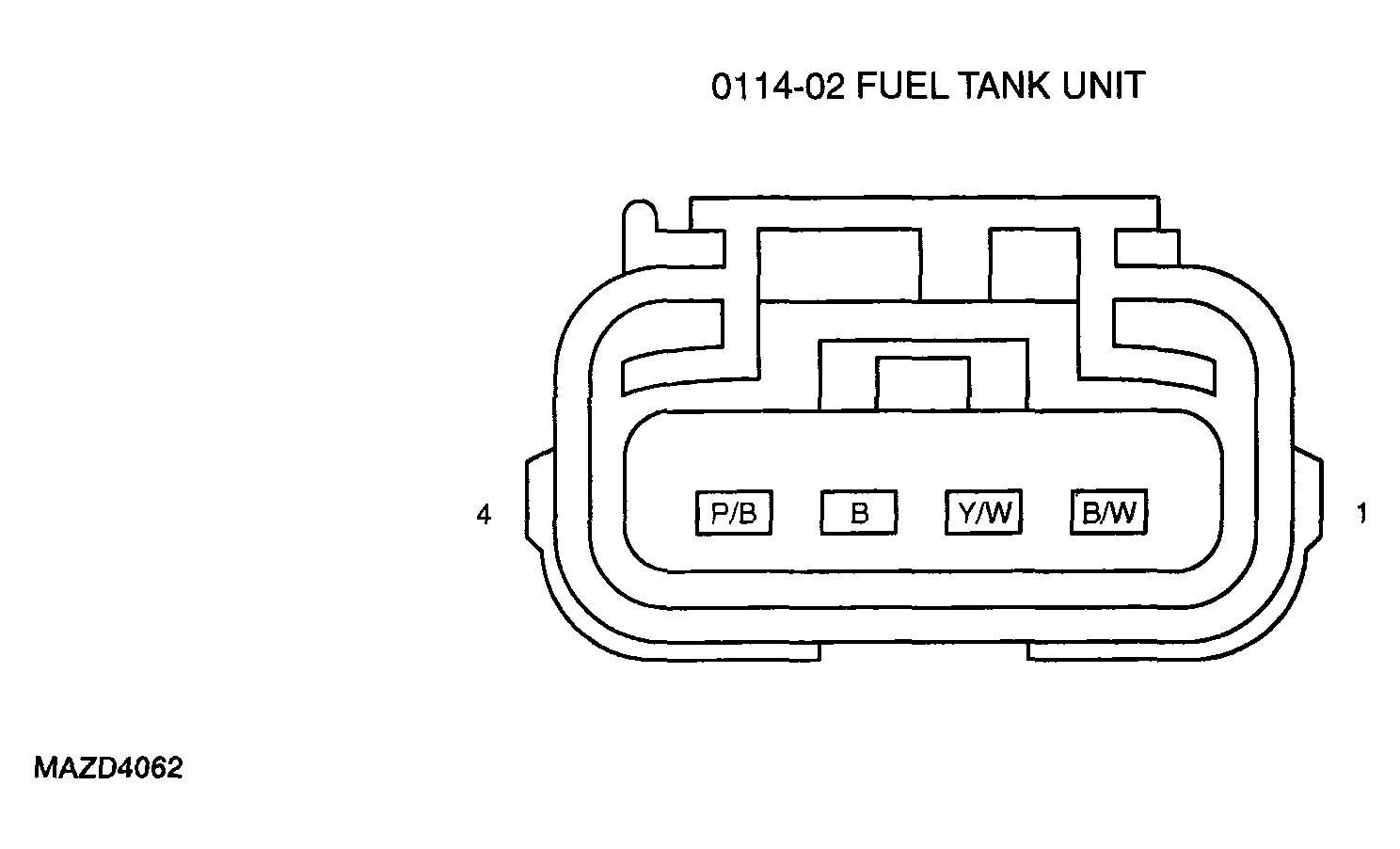

G04307022Courtesy of MAZDA MOTORS CORP.

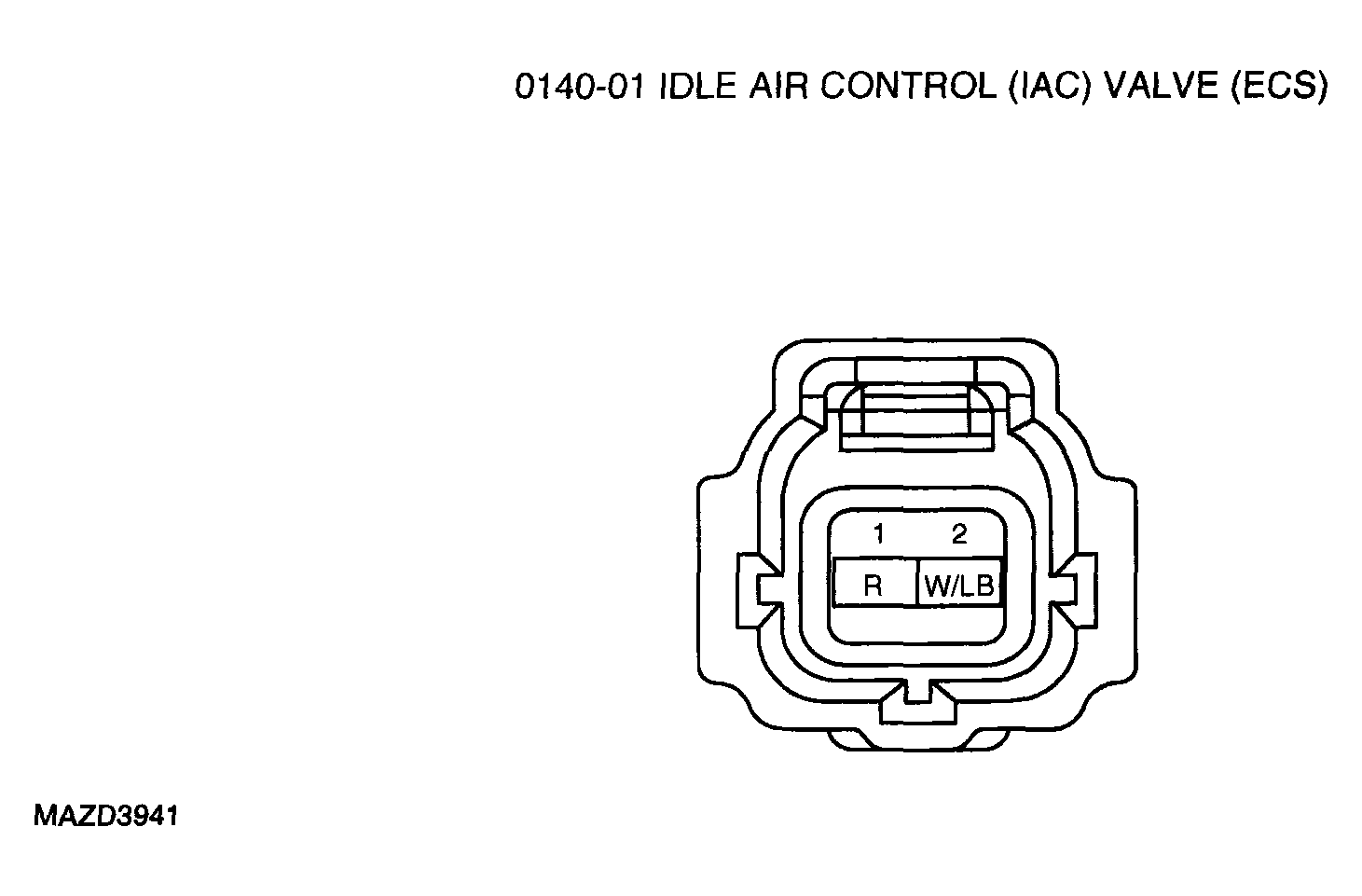

G04307023Courtesy of MAZDA MOTORS CORP.

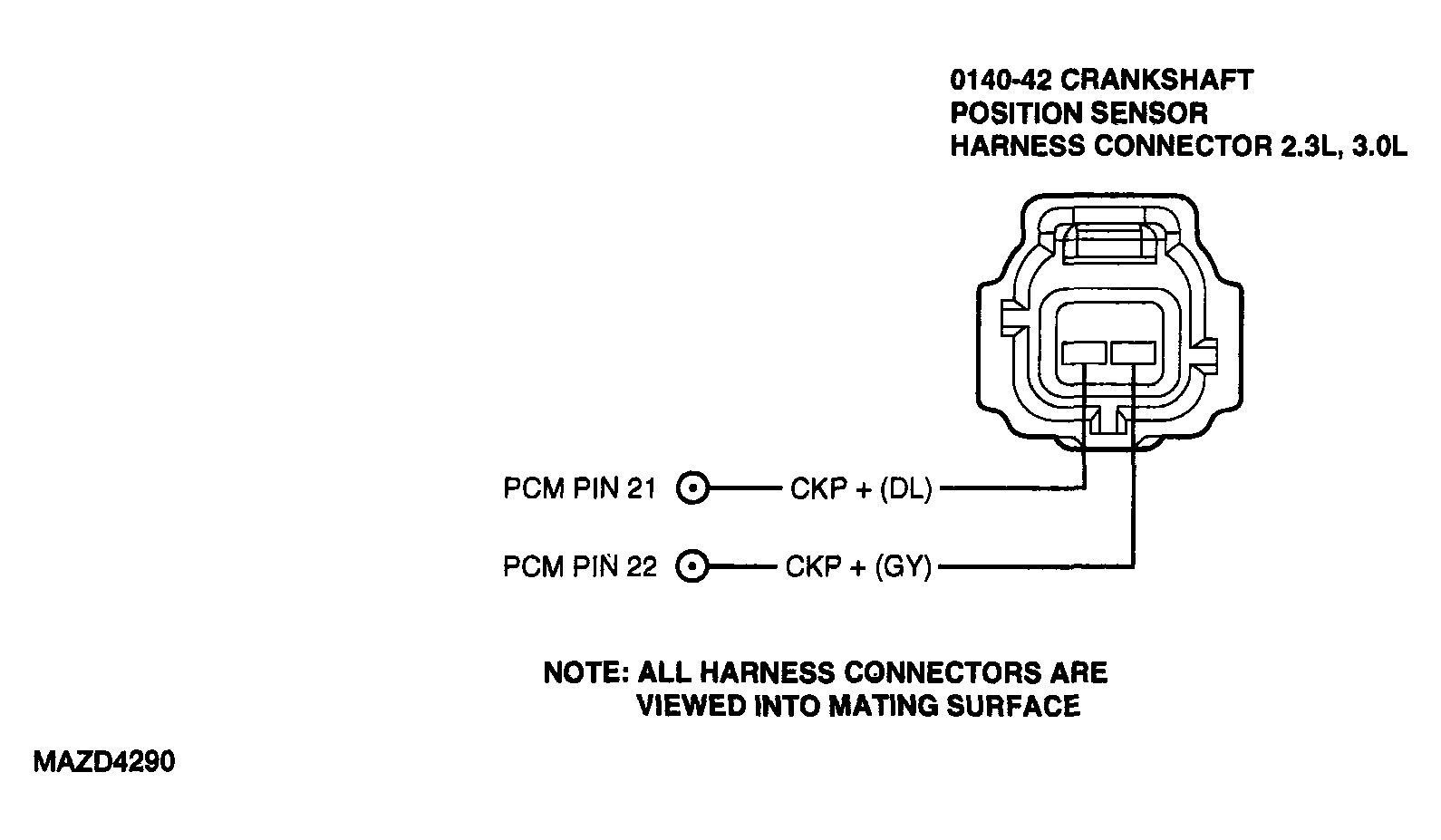

G04307024Courtesy of MAZDA MOTORS CORP.

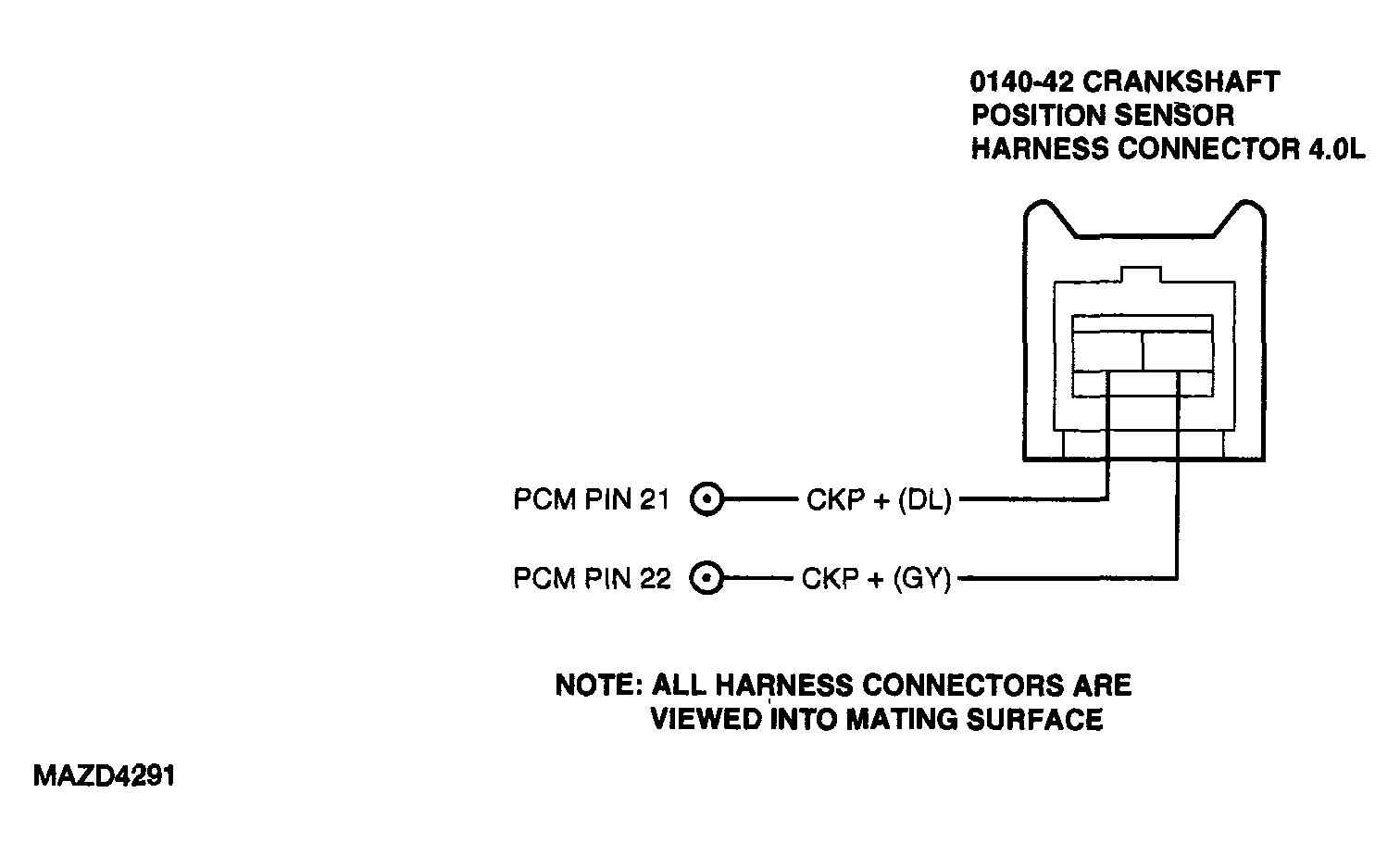

G04307025Courtesy of MAZDA MOTORS CORP.

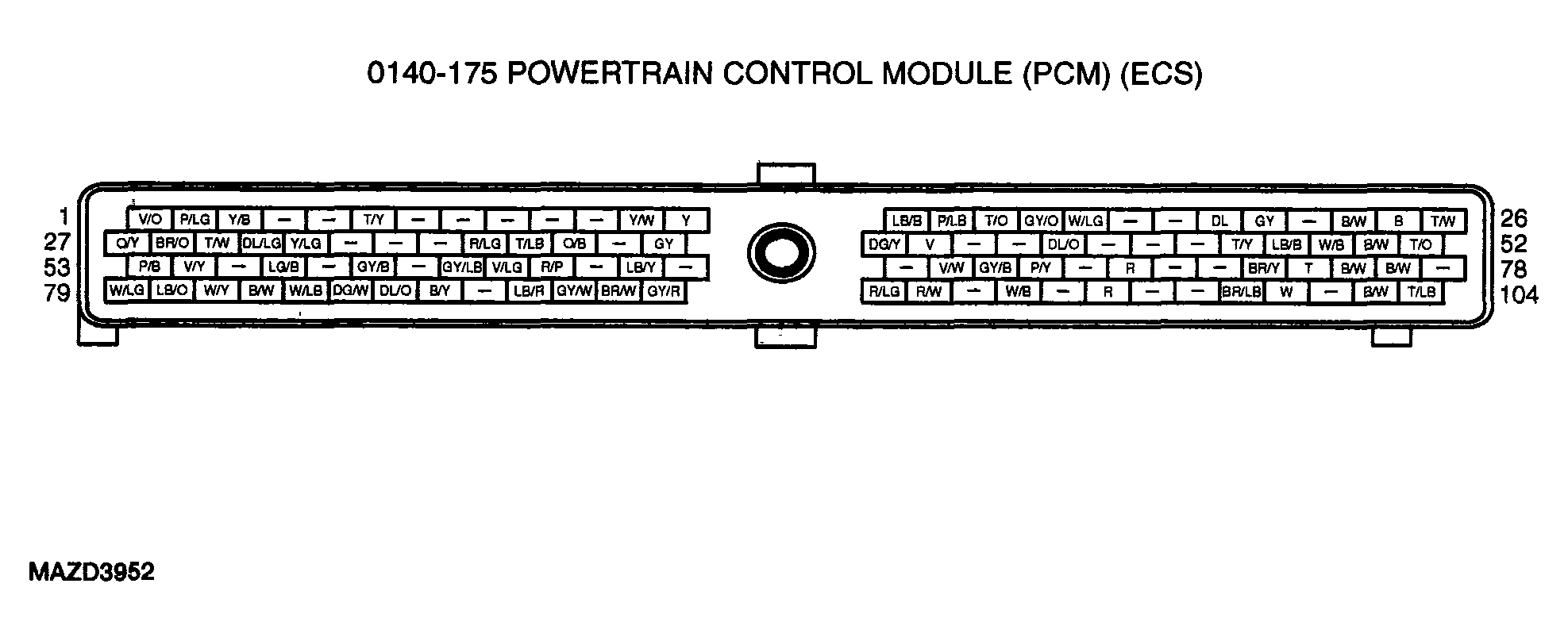

G04307026Courtesy of MAZDA MOTORS CORP.

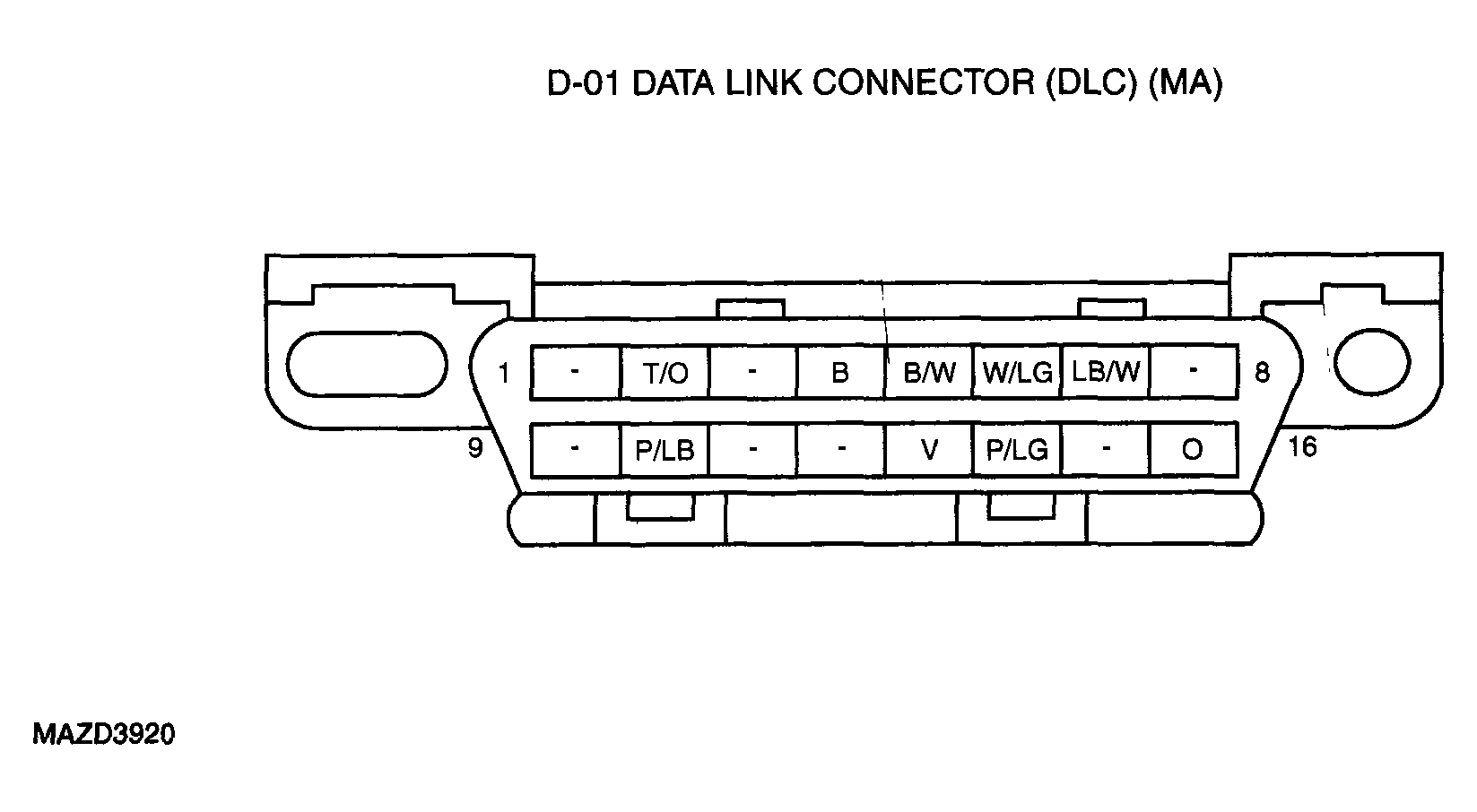

G04307027Courtesy of MAZDA MOTORS CORP.

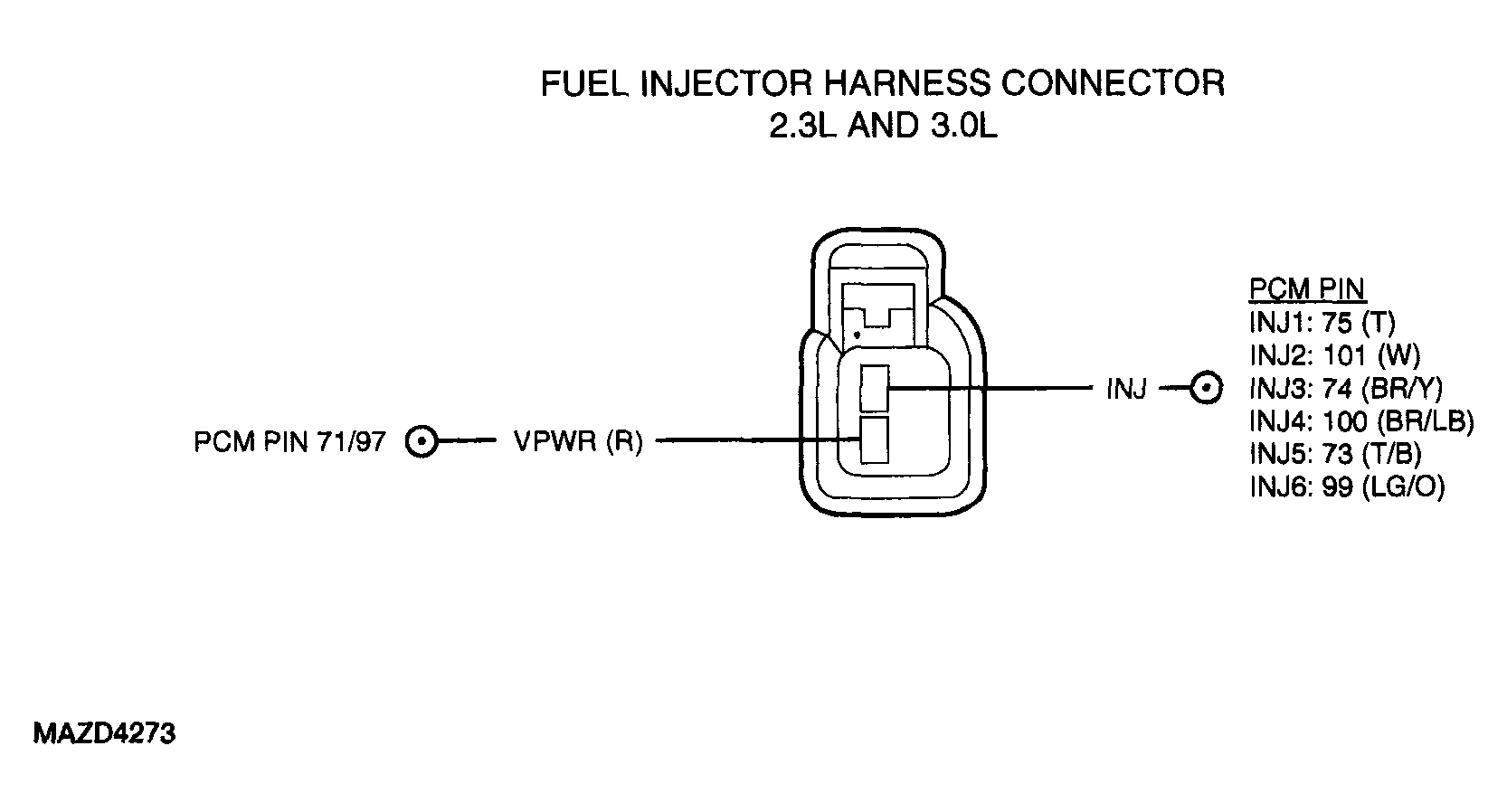

G04307028Courtesy of MAZDA MOTORS CORP.

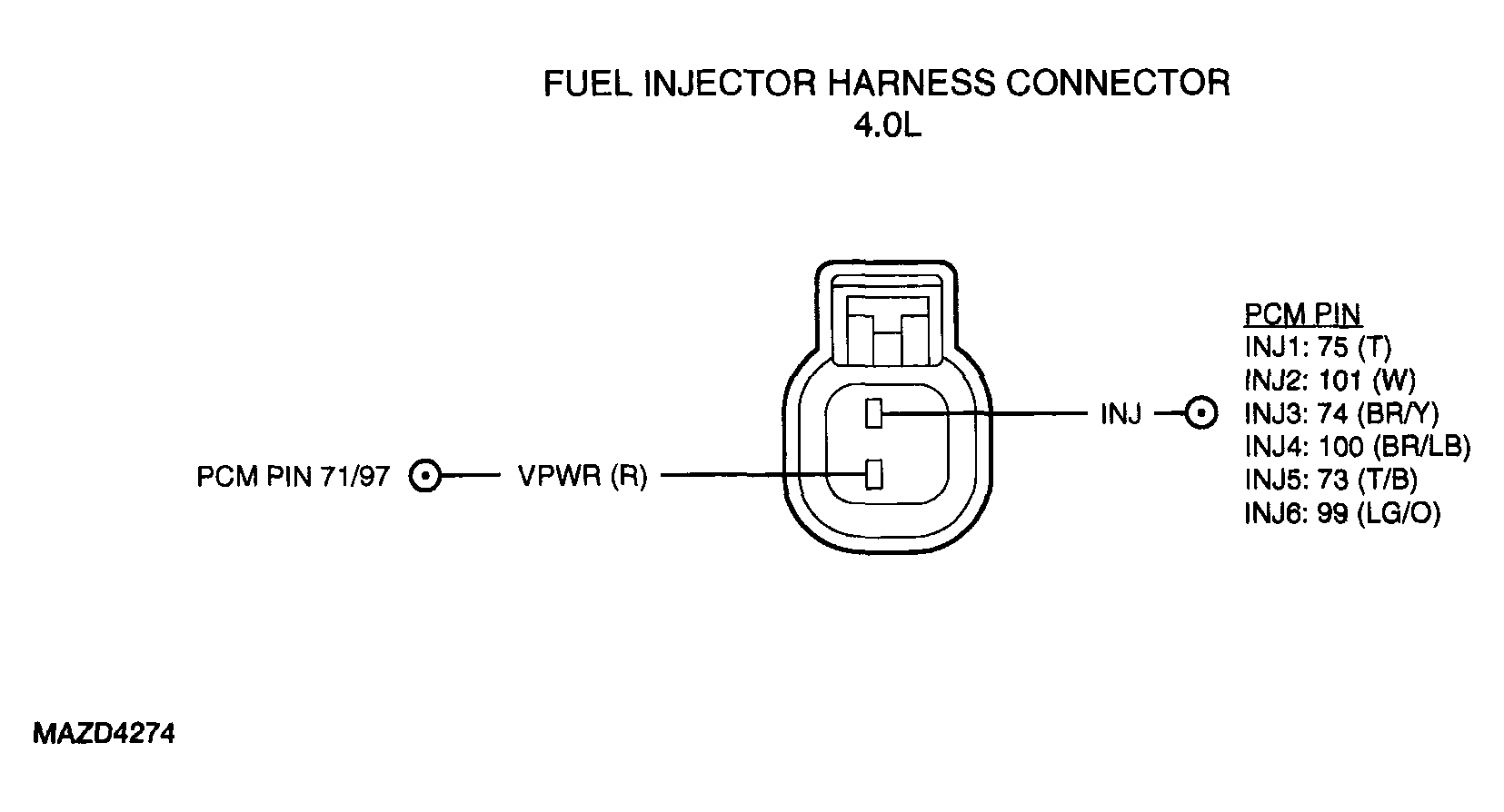

G04307029Courtesy of MAZDA MOTORS CORP.
