Pressure Relief Valve - 2.3L Removal / Installation

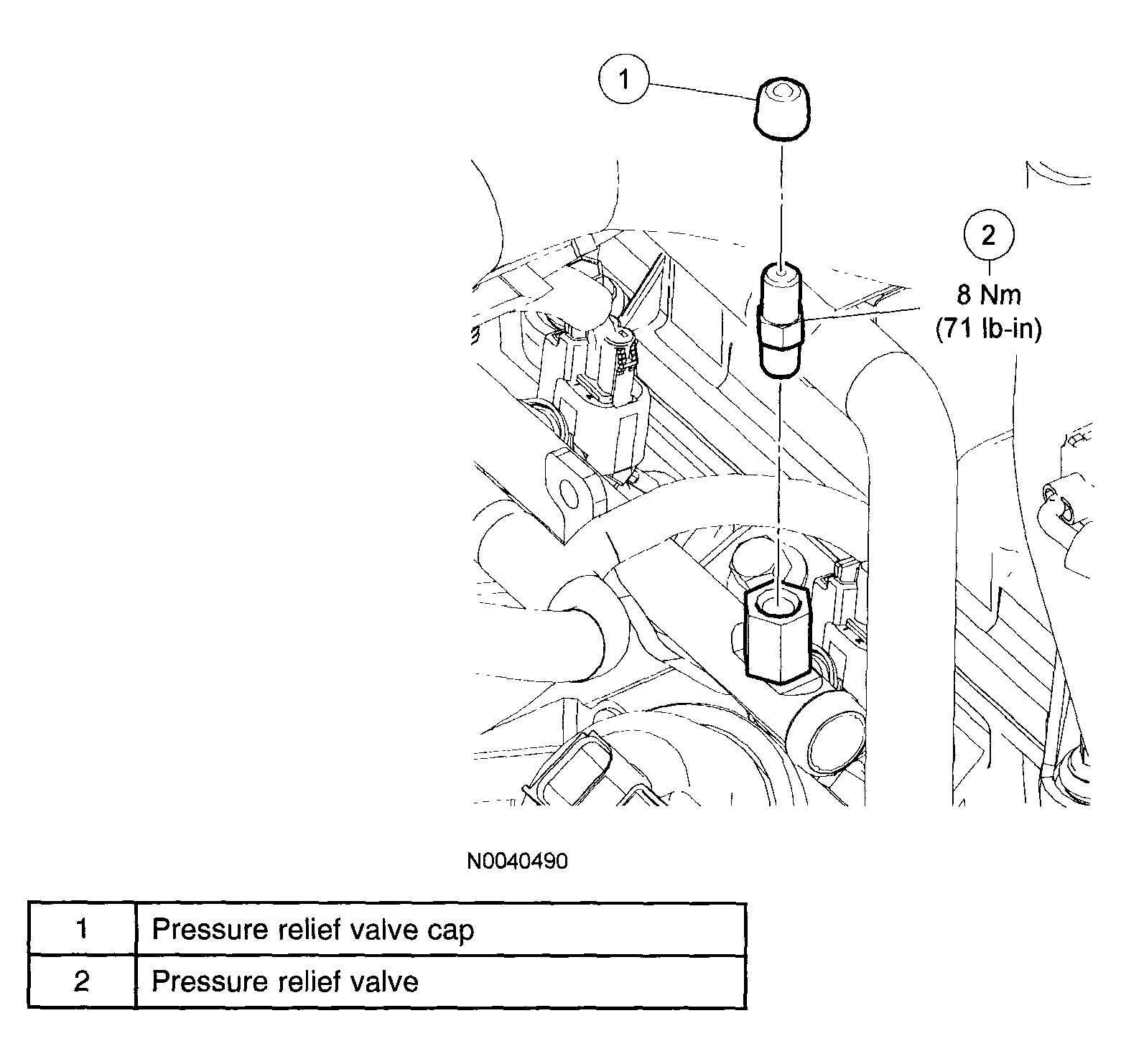

Fig 1: Removing/Installing Pressure Relief Valve With Torque Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

1. Disconnect the negative battery cable. See BATTERY DISCONNECT .
2. Remove the fuel pressure relief cap.

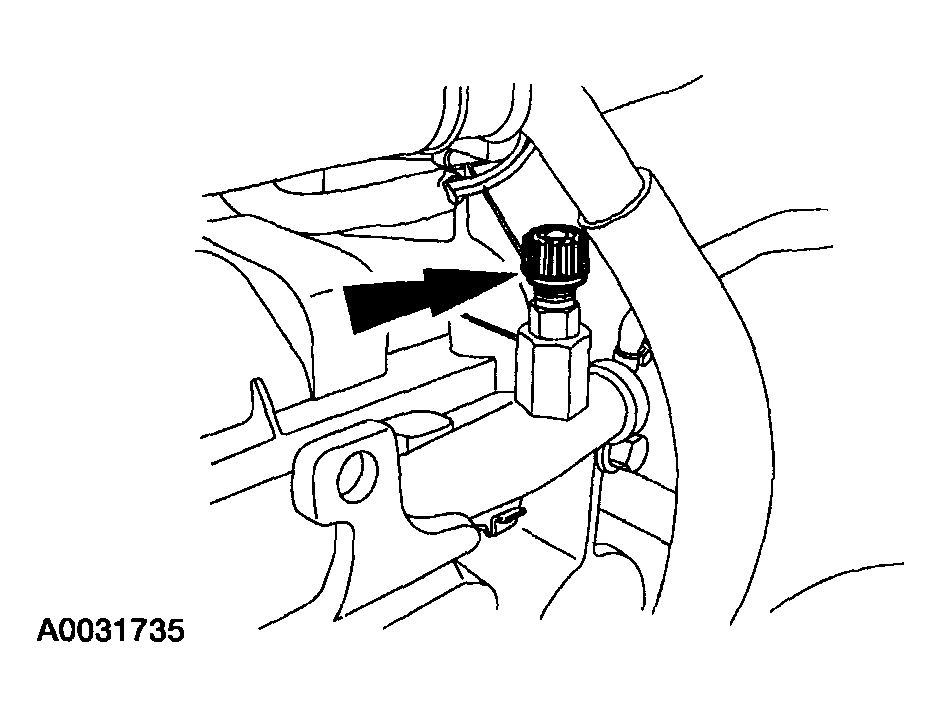

   Fig 2: Removing Fuel Pressure Relief Cap

   Courtesy of MAZDA MOTORS CORP.
3. Relieve the fuel pressure. See FUEL PRESSURE RELIEF  .
4. Remove the fuel pressure relief valve.

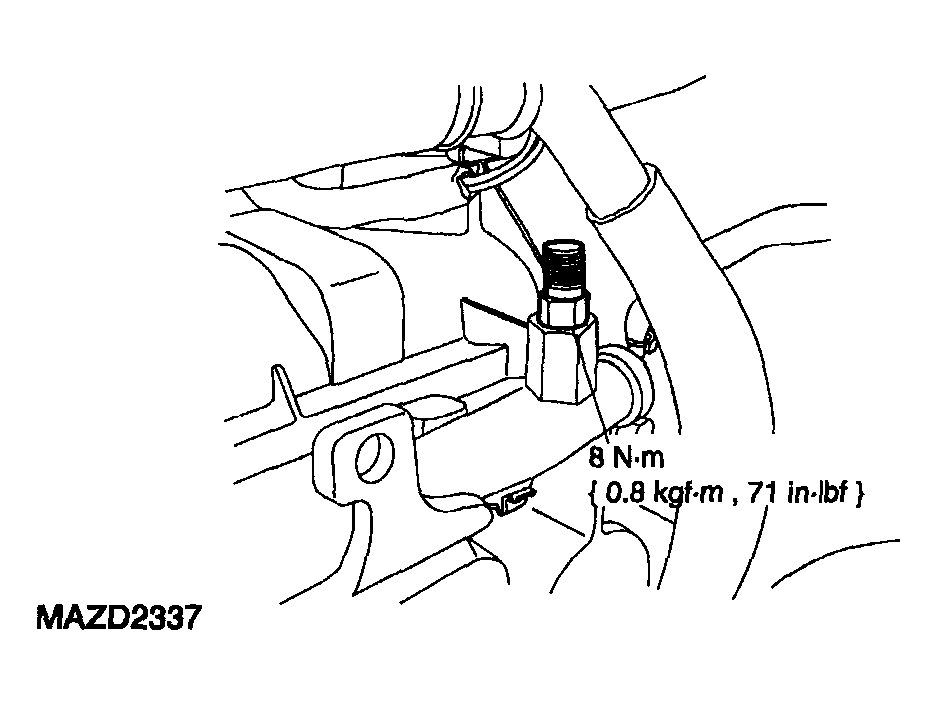

   Fig 3: Removing/Installing Fuel Pressure Relief Valve With Torque Specifications

   Courtesy of MAZDA MOTORS CORP.
5. To install, reverse the removal procedure.
