Manual Transaxle Installation Note

WARNING: This page is about a different variant/trim than selected.

Set the transaxle on a Jack and lift into place.
Install the transaxle mounting bolts.

Fig 1: Setting Transaxle On A Jack And Lift Into Place
Courtesy of MAZDA MOTORS CORP.
Install the stud of the No. 4 engine mount.
Tightening torque

27.4-40.2 N.m

{2.8-4.0 kgf.m, 20.2-29.6 ft.lbf}
Adjust the SST (49 C017 5A0) so that the engine is located at the specified position.

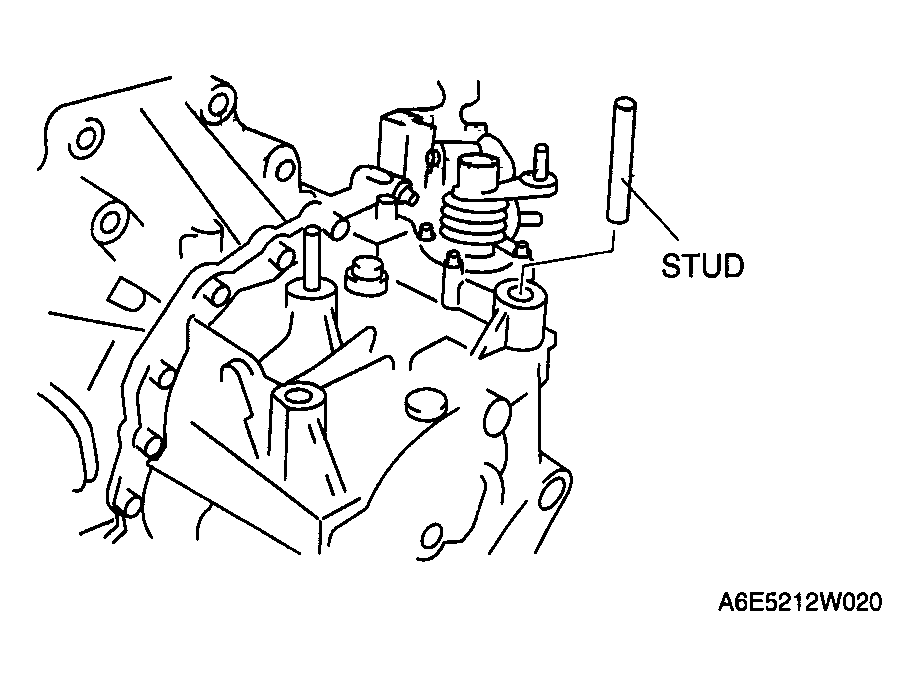

Fig 2: Installing Stud Of No. 4 Engine Mount
Courtesy of MAZDA MOTORS CORP.
