Trunk Lid Latch Switch Inspection

  1. When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

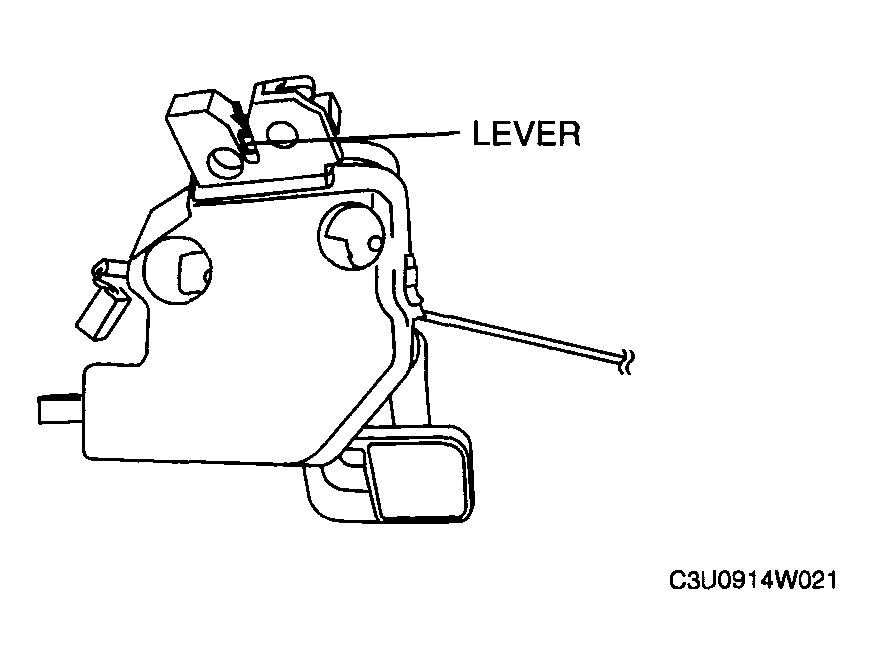

    Fig 1: Identifying Latch Lever
    G04315185Courtesy of MAZDA MOTORS CORP.
  2. Inspect for continuity between the trunk lid latch switch terminals.
    • If not as specified, replace the trunk lid latch and lock actuator.

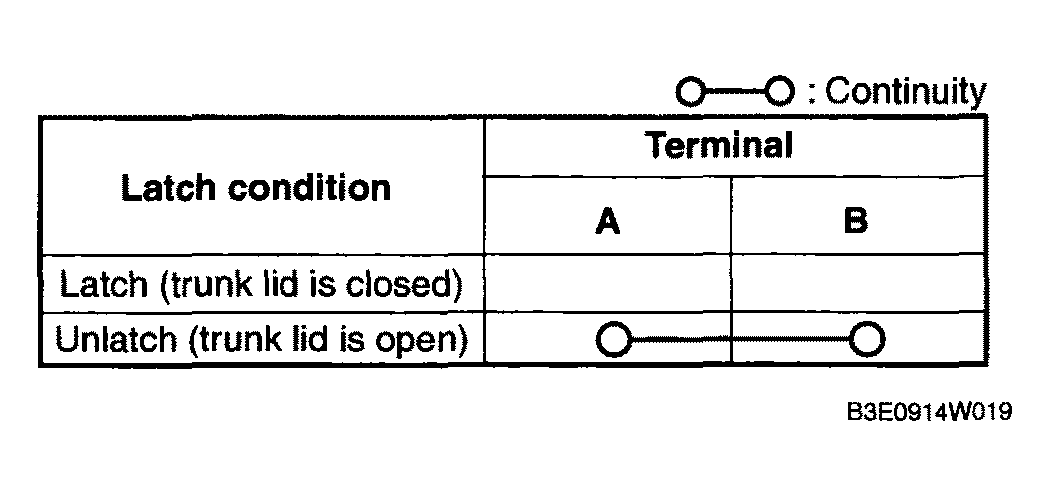

      Fig 2: Trunk Lid Latch Switch Terminals Continuity Chart
      G04315186Courtesy of MAZDA MOTORS CORP.

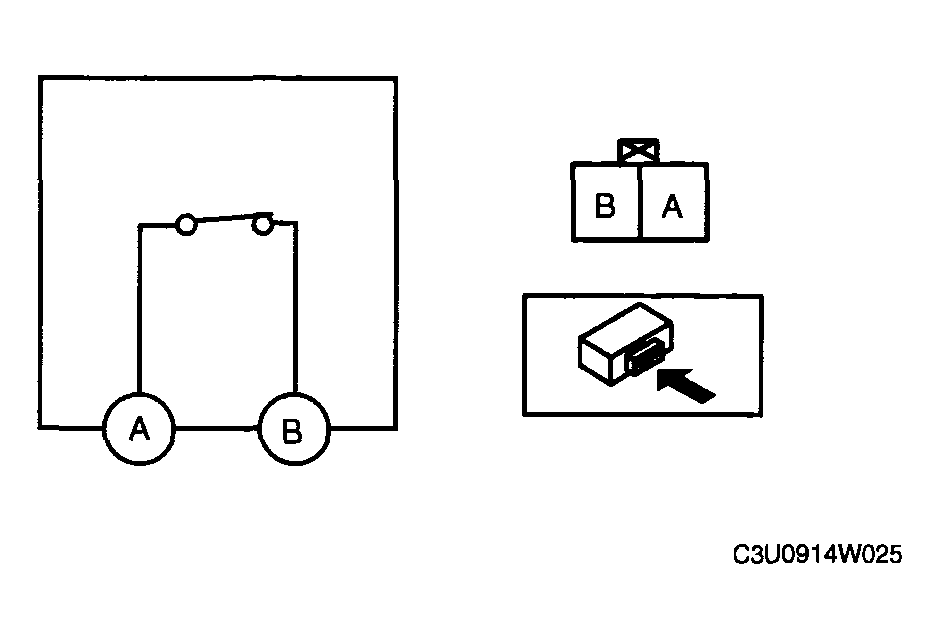

      Fig 3: Inspecting For Continuity Between Trunk Lid Latch Switch Terminals
      G04315187Courtesy of MAZDA MOTORS CORP.
