Hood Latch And Release Lever Removal/Installation: Notes

  1. To remove the hood release cable, remove the following parts:
    1. Battery. See BATTERY REMOVAL/INSTALLATION [LF, L3] .
    2. Fresh-air duct. See INTAKE AIR SYSTEM REMOVAL/INSTALLATION [LF, L3] .
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Adjust the hood. See HOOD ADJUSTMENT .

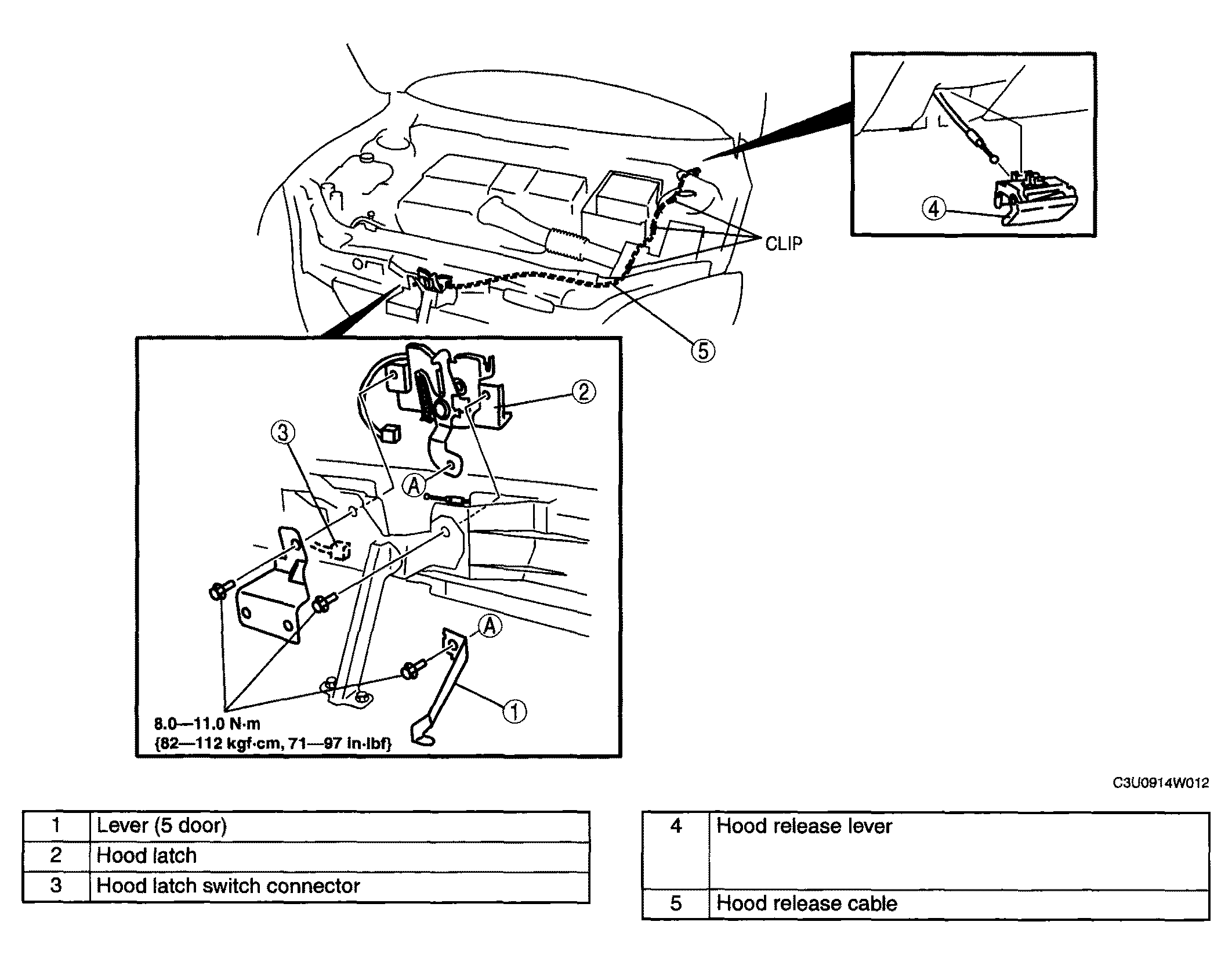

    Fig 1: Hood Latch, Release Lever, Cable & Torque Specification
    G04315170Courtesy of MAZDA MOTORS CORP.
