| 1 |
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
- Has FREEZE FRAME DATA been recorded?
|
Yes |
Go to the next step. |
| No |
Record the FREEZE FRAME DATA on the repair order, then go to the next step. |
| 2 |
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
- Verify related Service Bulletins and/or on-line repair information availability.
- Is any related repair information available?
|
Yes |
Perform repair or diagnosis according to the available repair information.
- If the vehicle is not repaired, go to the next step.
|
| No |
Go to the next step. |
| 3 |

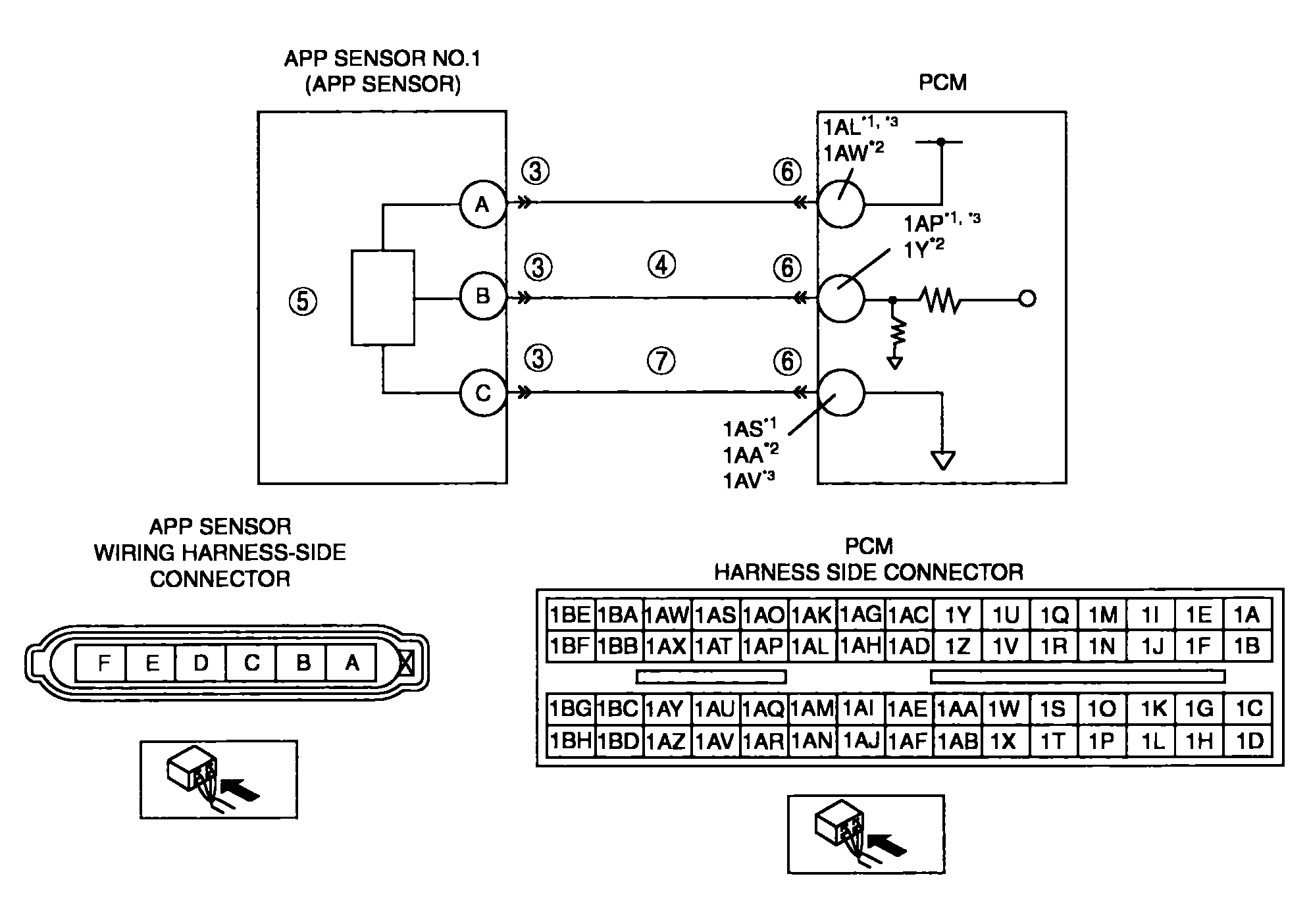

INSPECT APP SENSOR CONNECTOR FOR POOR CONNECTION
- Turn the ignition switch off.
- Disconnect the APP sensor connector.
- Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
- Is there any malfunction?
|
Yes |
Repair or replace the terminal, then go to Step 8. |
| No |
Go to the next step. |
| 4 |
INSPECT APP SENSOR NO. 1 SIGNAL CIRCUIT FOR SHORT TO POWER SUPPLY
- Turn the ignition switch to the ON position (Engine off).
- Measure the voltage between APP sensor terminal B (wiring harness-side) and body ground.
- Is the voltage B+
?
|
Yes |
Repair or replace the wiring harness for a possible short to power supply, then go to Step 8. |
| No |
Go to the next step. |
| 5 |
INSPECT APP SENSOR NO. 1
|
Yes |
Replace the APP sensor, then go to Step 8. (See
ACCELERATOR PEDAL REMOVAL/INSTALLATION
). |
| No |
Go to the next step. |
| 6 |
INSPECT PCM CONNECTOR FOR POOR CONNECTION
- Turn the ignition switch off.
- Disconnect the PCM connector.
- Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
- Is there any malfunction?
|
Yes |
Repair or replace the terminal, then go to Step 8. |
| No |
Go to the next step. |
| 7 |
INSPECT APP SENSOR NO. 1 GROUND CIRCUIT FOR OPEN CIRCUIT
- Turn the ignition switch off.
- Inspect for continuity between APP sensor terminal C (wiring harness-side) and PCM terminal 1AS, 1AA, 1AV (wiring harness-side).
- Is there continuity?
|
Yes |
Go to the next step. |
| No |
Repair or replace the wiring harness for a possible open circuit, then go to the next step. |
| 8 |
VERIFY TROUBLESHOOTING OF DTC P2123 COMPLETED
- Make sure to reconnect all disconnected connectors.
- Clear the DTC from the PCM memory using the WDS or equivalent.
- Start the engine.
- Is the same DTC present?
|
Yes |
Replace the PCM, then go to the next step. (See
PCM REMOVAL/INSTALLATION
). |
| No |
Go to the next step. |
| 9 |
VERIFY AFTER REPAIR PROCEDURE
|
Yes |
Go to the applicable DTC inspection. (See
DTC TABLE
). |
| No |
DTC troubleshooting completed. |
