Security And Locks Location Index

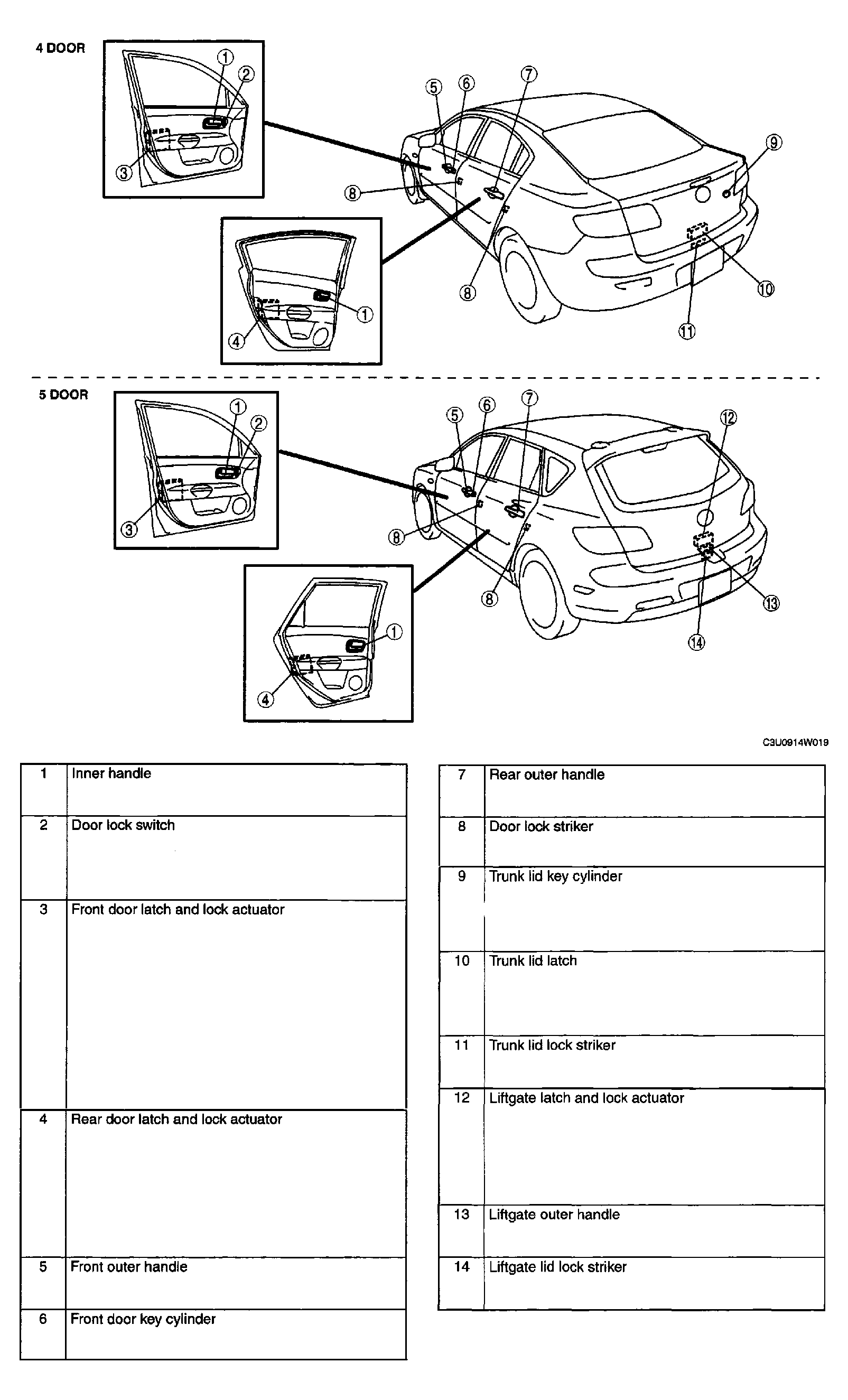

Fig 1: Security And Locks Location Index Chart (1 Of 2)
G04315139Courtesy of MAZDA MOTORS CORP.

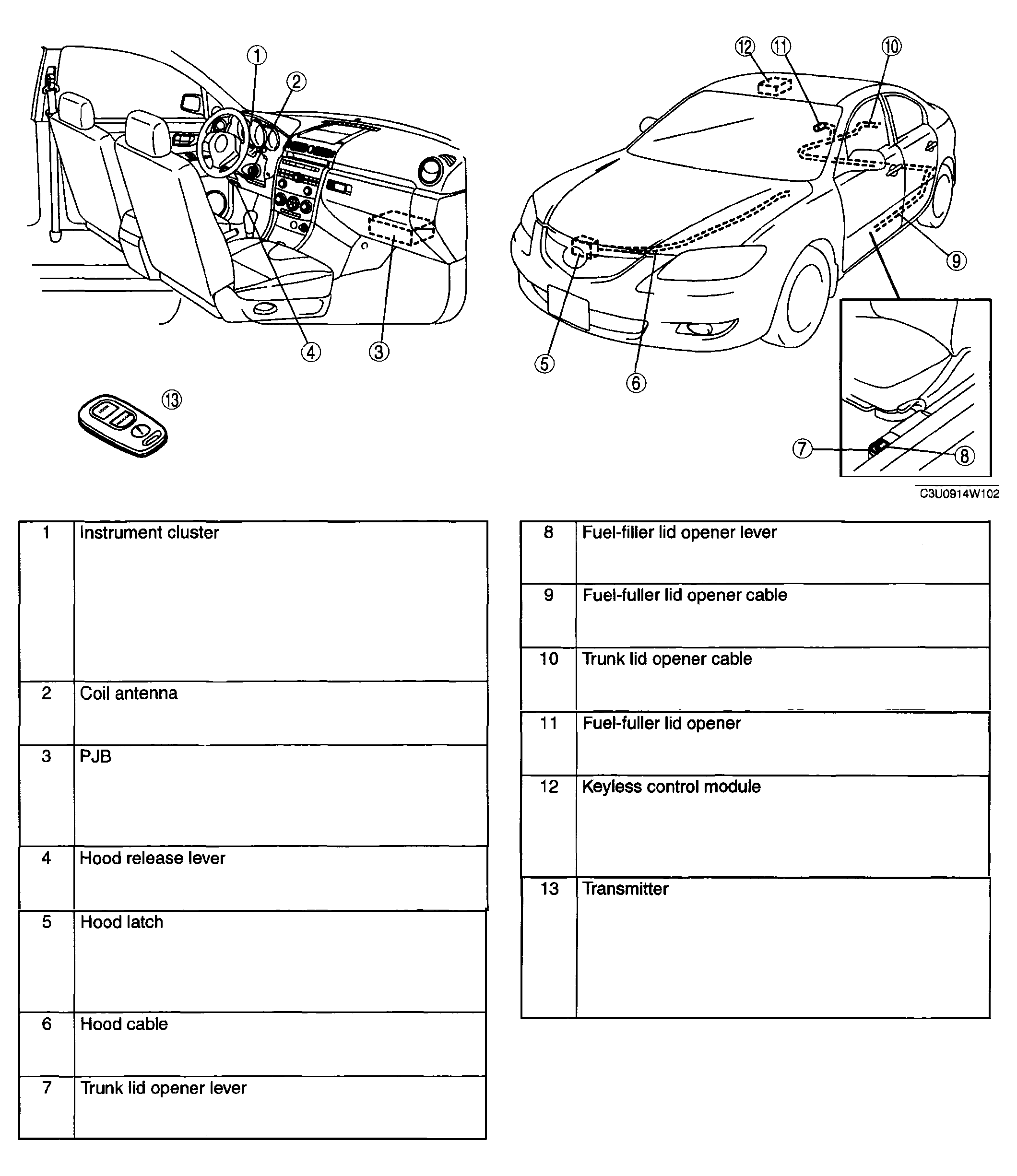

Fig 2: Security And Locks Location Index Chart (2 Of 2)
G04315140Courtesy of MAZDA MOTORS CORP.
