DTC P2507: Notes
DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2507 - LF, L3)
| DTC P2507 |
PCM B+ voltage low |
| DETECTION CONDITION |

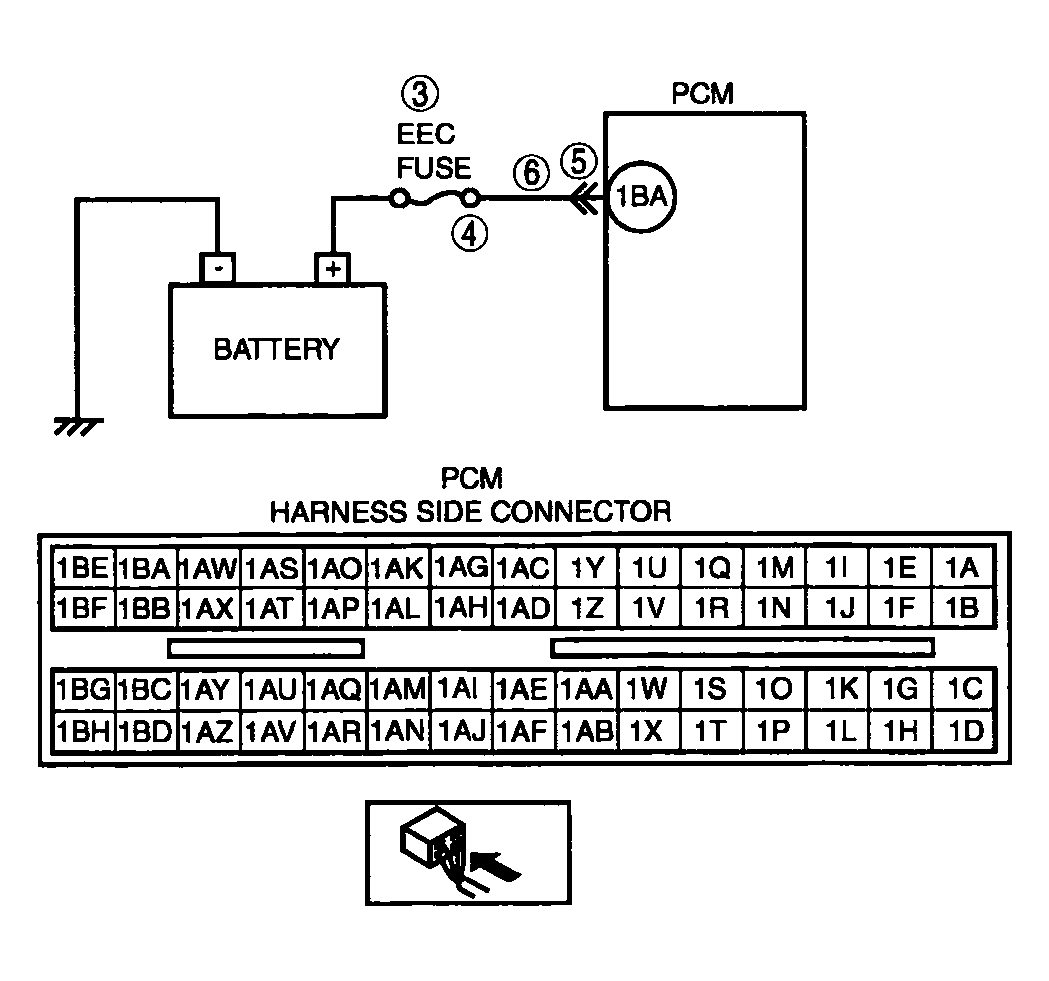

- The PCM monitors the voltage of back-up battery positive terminal at PCM terminal 1 BA. If the PCM detected battery positive terminal voltage below 2.5 V
for 2s
, the PCM determines that the backup voltage circuit has malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if PCM detects the above malfunction condition during first drive cycle.
- PENDING CODE is available if PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- DTC is stored in PCM memory.
|
| POSSIBLE CAUSE |
- Meltdown EEC fuse
- Open circuit in wiring between EEC fuse and PCM terminal 1BA
- Short to ground between EEC fuse and PCM terminal 1BA
- Poor connection of PCM connector
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
