Except for California Emission Regulation Applicable Model

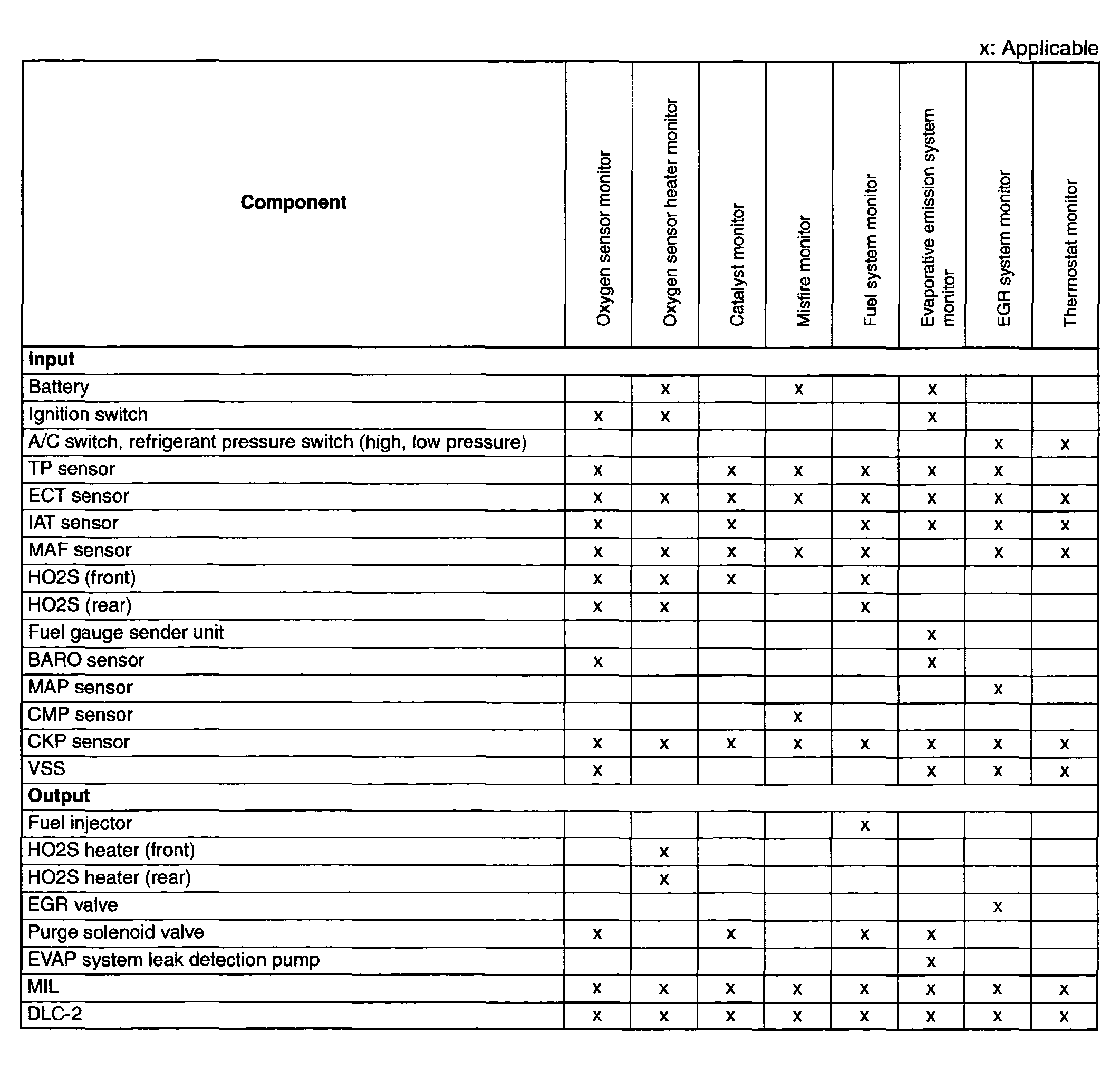

Fig 1: Monitoring System And Control System Device Relationship Chart (Except For California Emission Regulation Applicable Model)
G04313355Courtesy of MAZDA MOTORS CORP.
