Home >> Mazda >> 2006 >> 3 i, 2.0 F, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Abs Location Index

Abs Location Index

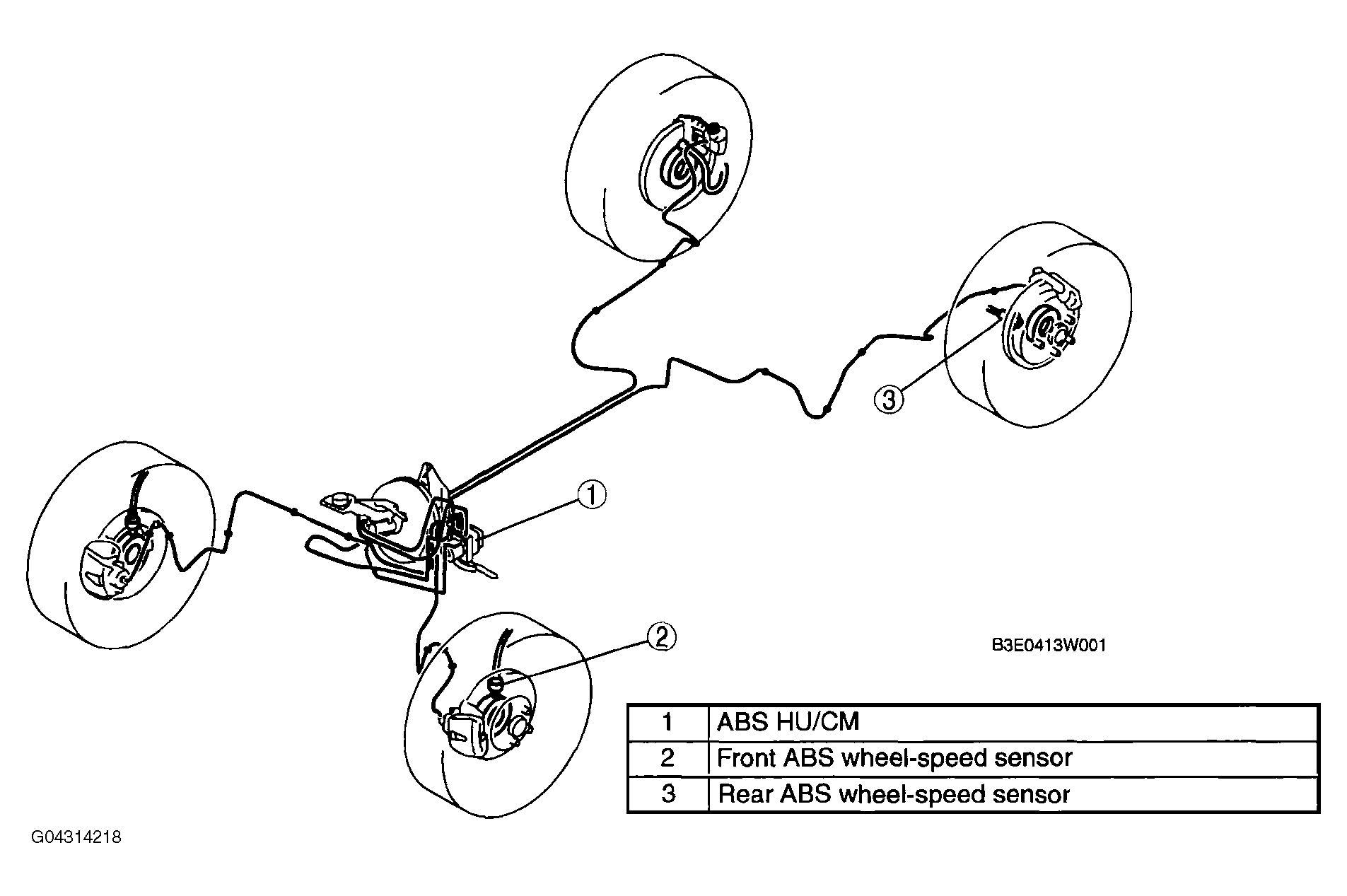

Fig 1: Identifying ABS Location Index

G04314218

Courtesy of MAZDA MOTORS CORP.
