DTC P2009

DETECTION CONDITION AND POSSIBLE CAUSE (DTC P2009 - LF, L3)

DTC P2009 Variable tumble solenoid valve circuit low input
DETECTION CONDITION
  • The PCM monitors variable tumble solenoid valve control signal. If the PCM turns variable tumble solenoid valve off but voltage still remains low, the PCM determines that variable tumble solenoid valve circuit has malfunction.

    • Diagnostic support note

  • This is a continuous monitor (CCM).
  • The MIL illuminates if the PCM detects the above malfunction condition in two consecutive drive cycles or in one drive cycle while the DTC for the same malfunction has been stored in the PCM.
  • PENDING CODE is available if the PCM detects the above malfunction condition during first drive cycle.
  • FREEZE FRAME DATA is available.
  • The DTC is stored in the PCM memory.
POSSIBLE CAUSE
  • Poor connection of connectors at PCM and/or variable tumble solenoid valve
  • Short to ground in wiring harness between variable tumble solenoid valve terminal B and PCM terminal 2I(1), 2AI(2)
  • Open circuit in wiring harness between main relay and variable tumble solenoid valve terminal A
  • Open circuit in wiring harness between variable tumble solenoid valve terminal B and PCM terminal 2I(1), 2AI(2)
  • Variable tumble solenoid valve malfunction
  • PCM malfunction

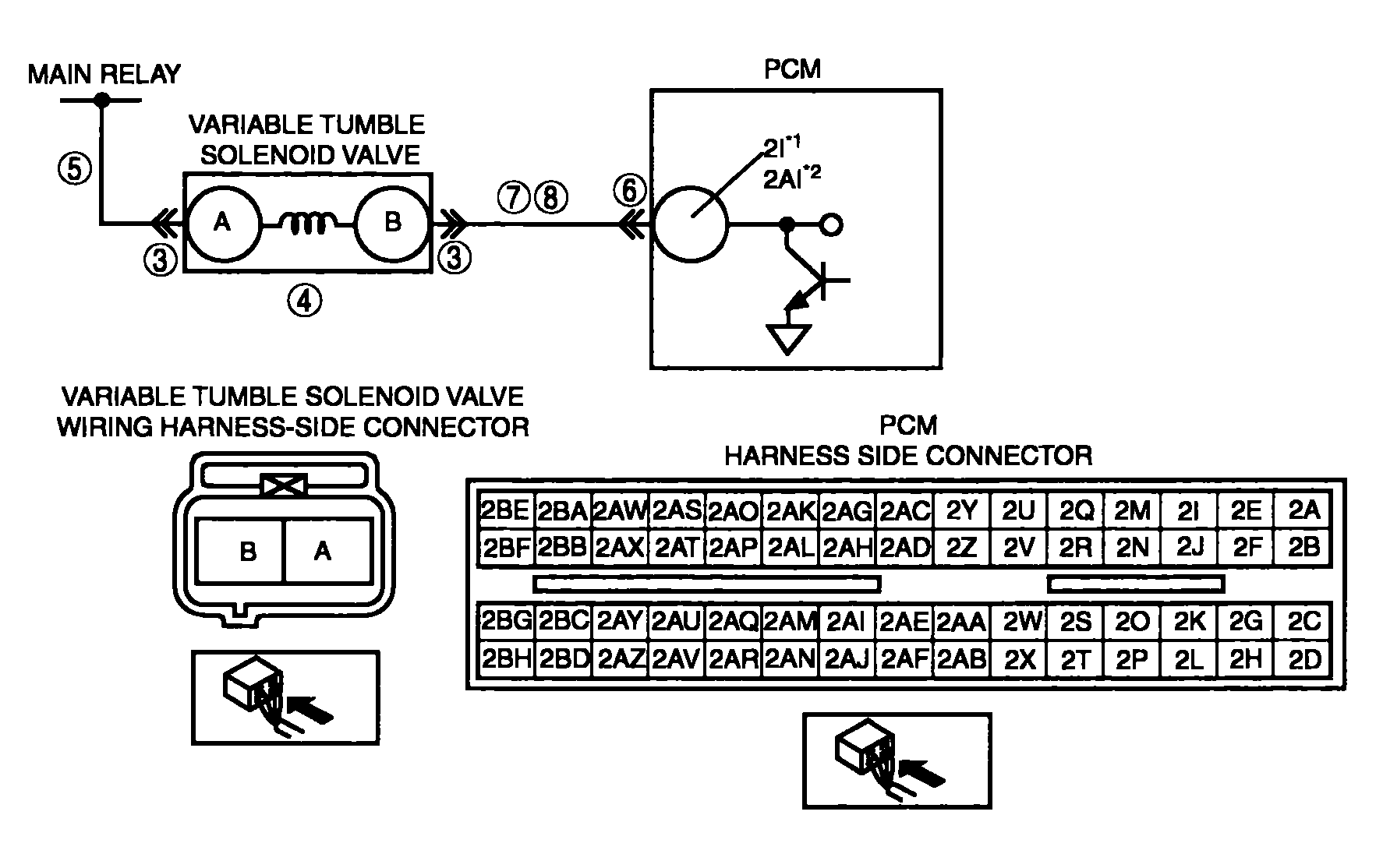

G04313418Courtesy of MAZDA MOTORS CORP.
(1) LF MTX, L3 and California emission regulation applicable model with LF ATX
(2) Except for California emission regulation applicable model with LF ATX
DIAGNOSTIC PROCEDURE CHART

STEP INSPECTION ACTION
1 VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
  • Has FREEZE FRAME DATA been recorded?
 Yes Go to the next step.
No Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2 VERIFY RELATED REPAIR INFORMATION AVAILABILITY
  • Verify related service repair information availability.
  • Is any related repair information available?
 Yes Perform repair or diagnosis according to the available repair information.
  • If the vehicle is not repaired, go to the next step.
No Go to the next step.
3 INSPECT VARIABLE TUMBLE SOLENOID VALVE CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair or replace the terminal, then go to Step 9.
No Go to the next step.
4 INSPECT VARIABLE TUMBLE SOLENOID VALVE  Yes Go to the next step.
No Replace the variable tumble solenoid valve, then go to Step 9.
5 INSPECT VARIABLE TUMBLE SOLENOID VALVE POWER SUPPLY CIRCUIT FOR OPEN CIRCUIT
  • Disconnect the variable tumble solenoid valve connector.
  • Turn the ignition switch to the ON position (Engine off).
  • Measure the voltage between variable tumble solenoid valve terminal A (wiring harness-side) and body ground.
  • Is the voltage B+  ?
 Yes Go to the next step.
No Repair or replace the wiring harness for open circuit, then go to Step 9.
6 INSPECT PCM CONNECTOR FOR POOR CONNECTION
  • Turn the ignition switch off.
  • Disconnect the PCM connector.
  • Inspect for poor connection at PCM terminal 2I(1), 2AI(2) (such as damaged/pulled-out pins, corrosion).
  • Is there any malfunction?
 Yes Repair the terminal, then go to Step 9.
No Go to the next step.
7 INSPECT VARIABLE TUMBLE SOLENOID VALVE CONTROL CIRCUIT FOR SHORT TO GROUND
  • Inspect for continuity between variable tumble solenoid valve terminal B (wiring harness-side) and body ground.
  • Is there continuity?
 Yes Repair or replace the wiring harness for short to ground, then go to Step 9.
No Go to the next step.
8 INSPECT VARIABLE TUMBLE SOLENOID VALVE CONTROL CIRCUIT FOR OPEN CIRCUIT
  • Connect variable tumble solenoid valve connector.
  • Turn the ignition switch to the ON position (Engine off).
  • Measure the voltage between PCM terminal 2I(1), 2AI(2) (wiring harness side) and body ground.
  • Is the voltage B+
 Yes Go to the next step.
No Repair or replace the wiring harness for open circuit, then go to the next step.
9 VERIFY TROUBLESHOOTING OF DTC P2009 COMPLETED
  • Make sure to reconnect all disconnected connectors.
  • Clear the DTC from the PCM memory using the WDS or equivalent.
  • Start the engine.
  • Is the PENDING CODE for this DTC present?
 Yes Replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION ).
No Go to the next step.
10 VERIFY AFTER REPAIR PROCEDURE  Yes Go to the applicable DTC inspection.
(See DTC TABLE ).
No Troubleshooting completed.
(1) LF MTX, L3 and California emission regulation applicable model with LF ATX
(2) Except for California emission regulation applicable model with LF ATX
