Home >> Mazda >> 2006 >> 3 i, 2.0 F, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Tank Removal/Installation >> Except For California Emission Regulation Applicable Model

Except For California Emission Regulation Applicable Model

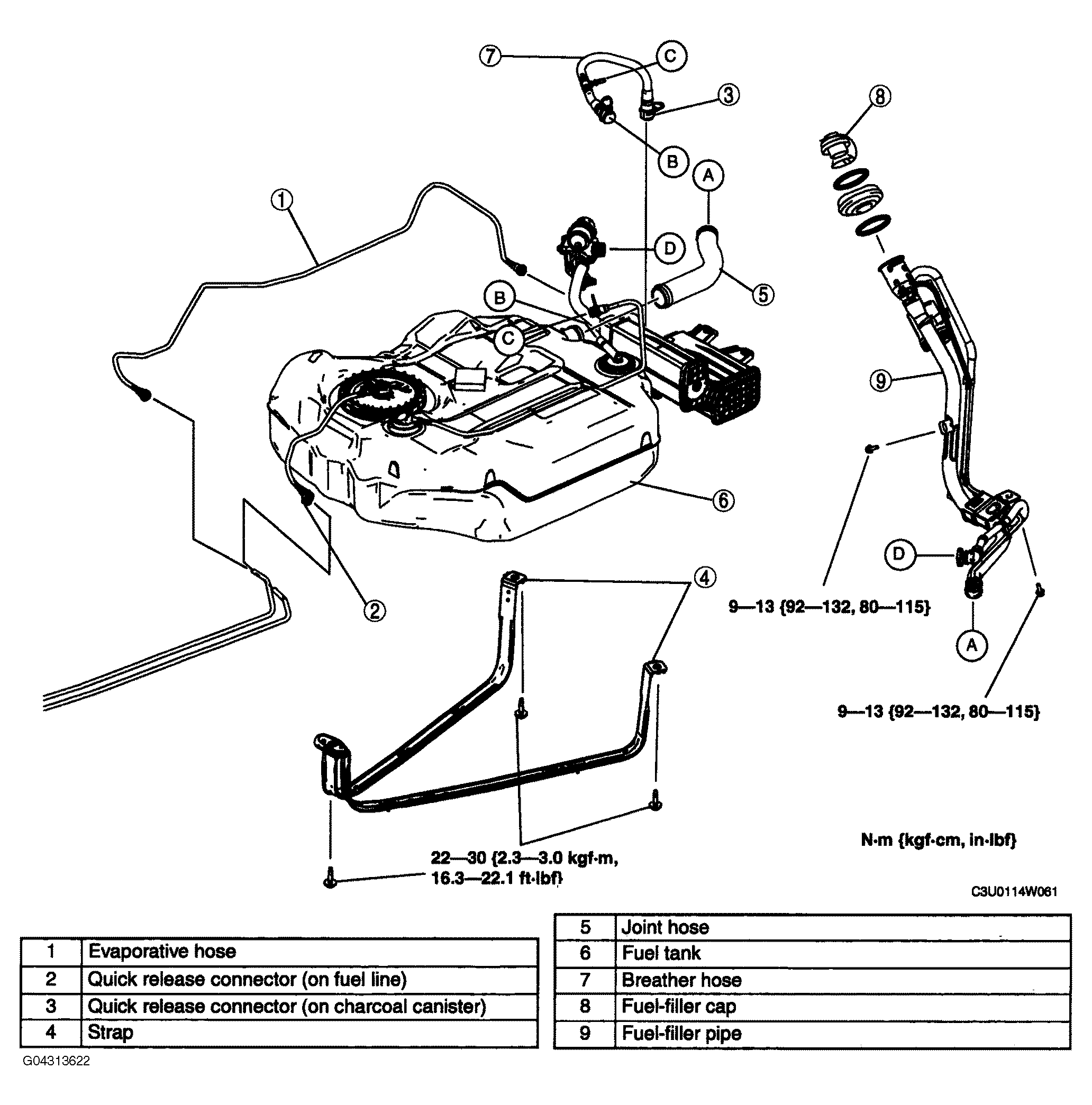

Fig 1: Fuel Tank Replacement Components & Torque Specification (Except California Emissions)

G04313622

Courtesy of MAZDA MOTORS CORP.
