Retainer ring installation note

  1. Tap a retainer ring projection using a flathead screwdriver as shown in the figure and tighten the retainer until it is fixed in place.

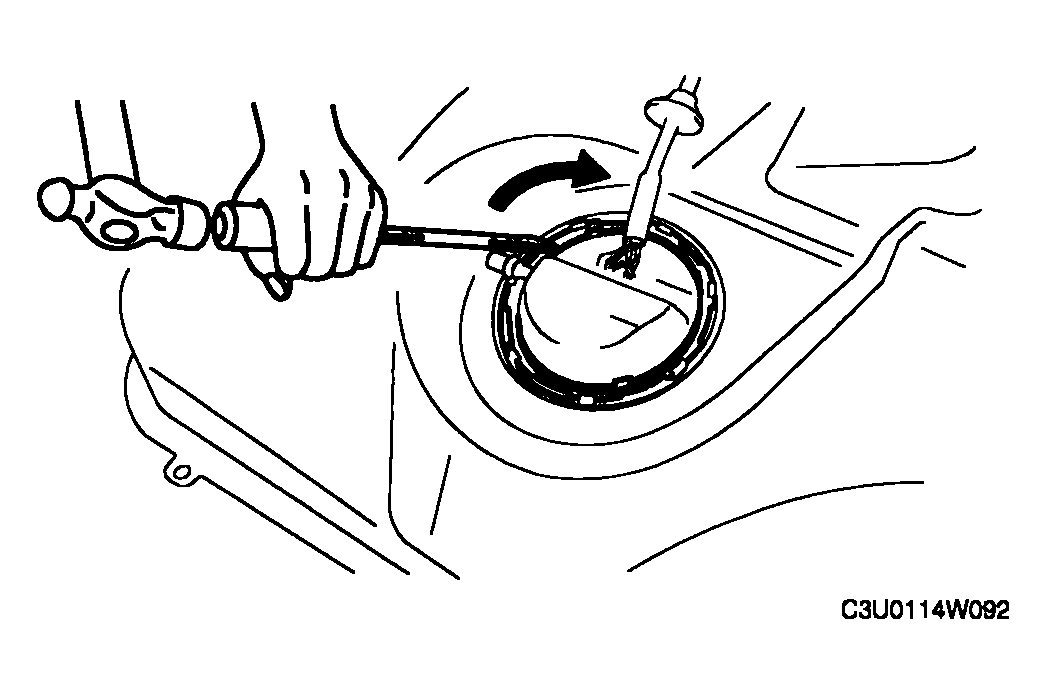

    Fig 1: Tapping On Retainer Ring Projection
    G04313634Courtesy of MAZDA MOTORS CORP.
