Control System Wiring Diagram [BP]

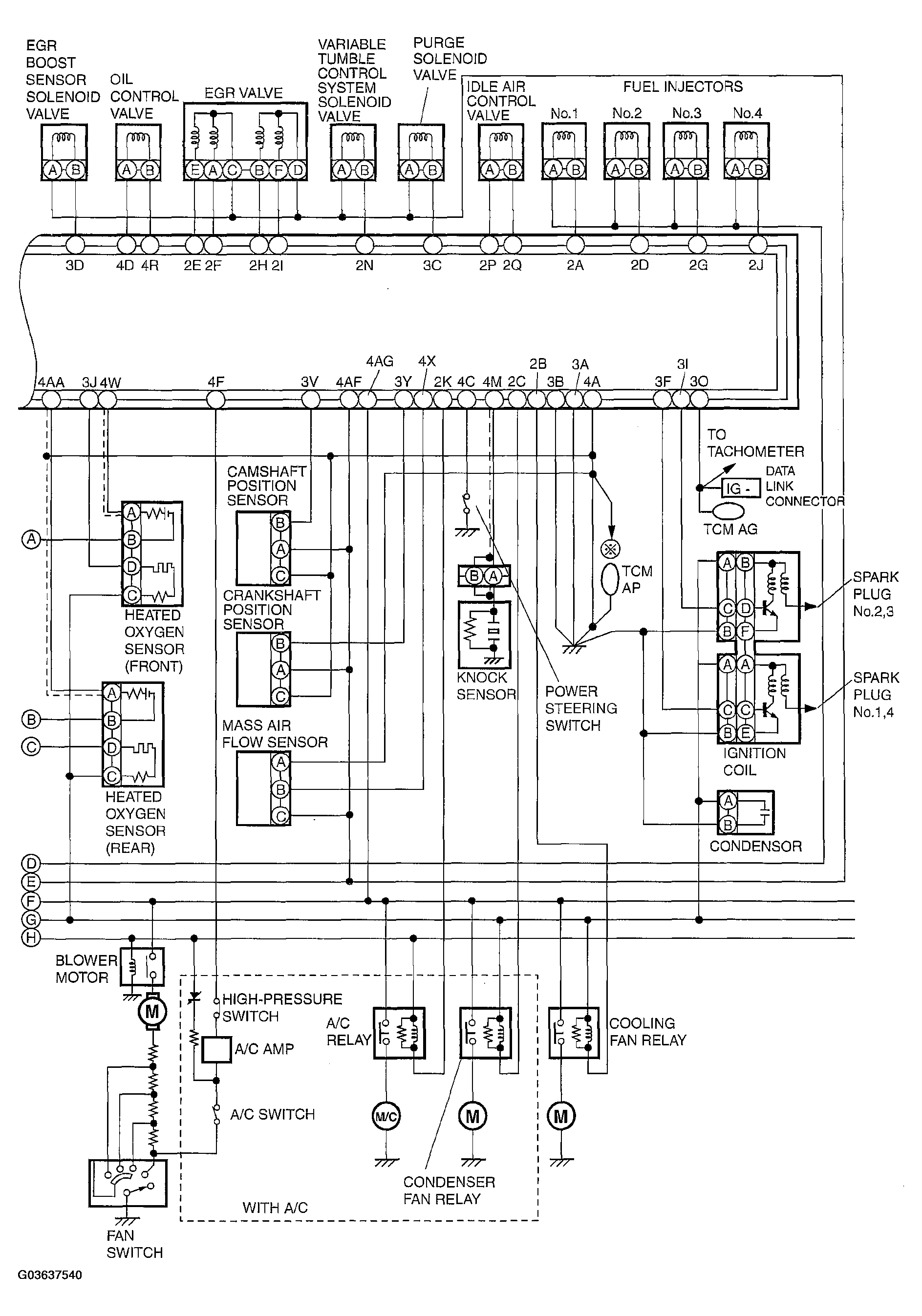

Fig 1: Identifying Control System Wiring Diagram [BP] (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

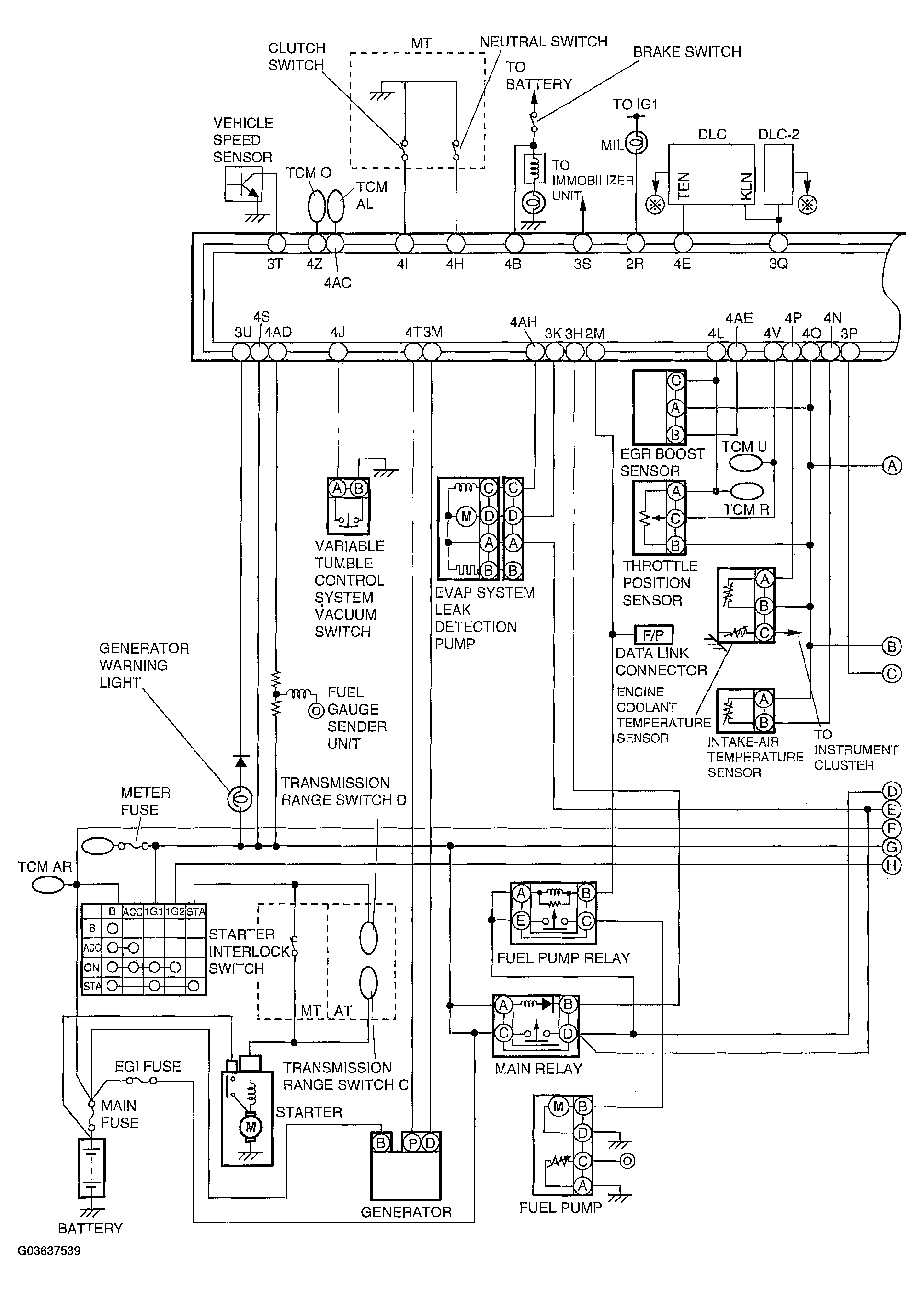

Fig 2: Identifying Control System Wiring Diagram [BP] (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
