Resistance Inspection
- Disconnect the IAT sensor No.2 connector.
- Verify that the resistance between terminals A and B is within the specification.
- If not within the specification, replace the IAT sensor No.2. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (BP WITH TC) .)
- If the monitor item condition/specification (reference) is not within the specification, even though there is no malfunction, perform the CIRCUIT OPEN/SHORT INSPECTION .
IAT SENSOR RESISTANCE SPECIFICATION
| Ambient temperature (°C {°F}) | Resistance (kilohm) |
|---|---|
| 25 {77} | Approx.33 |
| 85 (185} | Approx.3.5 |

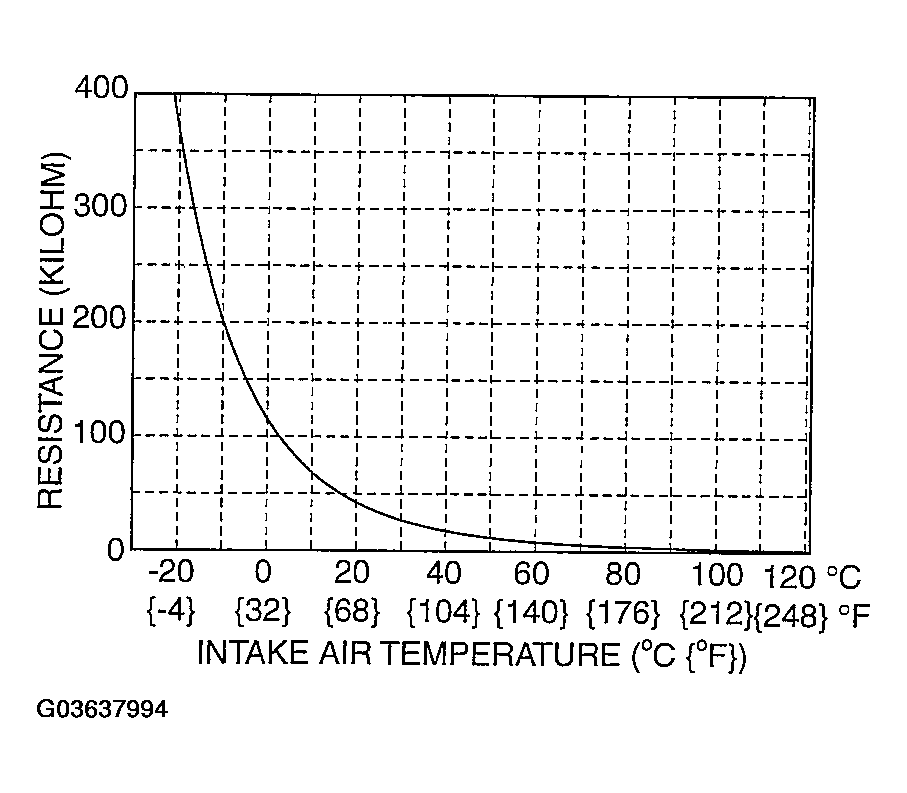

IAT SENSOR CHARACTERISTICS REFERENCE
| Ambient temperature (°C {°F}) | -20 {-4} | 0 (32} | 20 {68} | 40 {104} | 60 {140} |
| Resistance (kilohm) | Approx.357 | Approx.112 | Approx.41 | Approx.17 | Approx.8 |
| Voltage (V) | Approx.4.6 | Approx.4.0 | Approx.3.0 | Approx.2.0 | Approx.1.2 |
